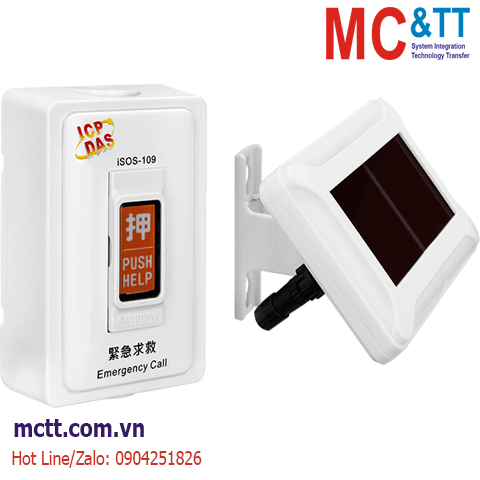

Module nút bấm cảnh báo khẩn cấp không dây ICP DAS iSOS-109/S2 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

iSOS Indoor light charging emergency call button module

THÔNG TIN SẢN PHẨM

Feature

Provide emergency message for help report function
Powered by built-in rechargeable Lithium Ion battery
Supports Dye-sensitized cell charging
Supports 433MHz Radio Frequency
Selectable 16 Radio Frequency Channels
Active online report
Provide wall-mounting Installation

Introduction

The iSOS-109 is a wireless emergency call button product with a built-in rechargeable 18650 lithium-ion battery. With SP-S2-DS dye-sensitized charging module, it can be charged under indoor light conditions and can be used continuously without replacing the battery. Through Sub-1G RF communication interface, it can approach real wireless deployment. It provides emergency help return function and improves personal safety protection. This system is very suitable for public area construction. For example, public toilets, hospitals, nursing homes, open campuses, large parking lots, etc. iSOS-109 delivers reliable electricity and reduces the cost of wiring. Realize emergency information transmission, meet low energy consumption, wireless communication, and emergency monitoring, etc., greatly reduce the time and human resources required for system construction and maintenance.

Application

Wireless light charging emergency iSOS system

Specifications

RF
Channels	0 ~ 15 (Selectable by DIP Switch)
Group ID	0 ~ 3 (Selectable by DIP Switch)
Radio Frequency	433.1000 ~ 434.6000 MHz
Transmission Power	9±1dBm (PA Off) / 18±1dBm (PA On)
Transmission Cycle	1 / 10 / 30 / 60 Secs. 3 / 5 / 10 / 30 Mins. (Selectable by DIP Switch) 1 Sec.(Emergency Triggered Only)
Transmission Distance (LoS)	50 m
Node ID	1 ~ 31 configured by DIP switch

Antenna
Type	0 dBi Spring antenna (Omni-directional)

Power
Consumption	0.596mAh@1 Day
Battery	18650 lithium-ion battery(3.3 VDC, 1100mAh) charged by SP-S2-DS module

Mechanical
Dimensions (mm)	92 x 136 x 52(W x L x H)
Installation	Wall-mount

Environment
Operating Temperature	-25℃ ~ +60℃
Storage Temperature	-30 ~ +80°C (No battery included) -20 ~ +45°C (Battery included)
Humidity	20 ~ 65% RH(Non-condensing)

Download

Datasheet

Documents

Ordering Information

iSOS-109/S2 CR

iSOS Indoor light charging emergency call button module (RoHS) (Asia Only), Includes SP-S2-DS charging module
