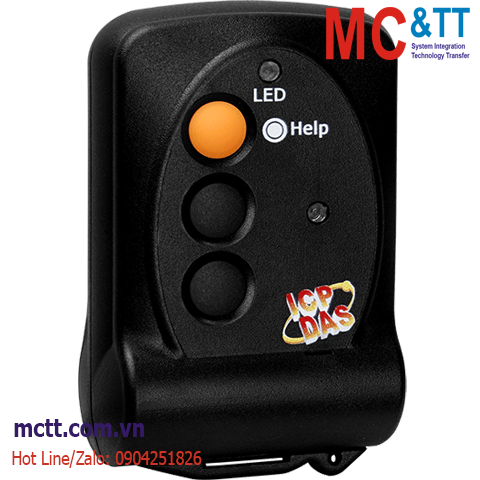

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule nút bấm cảnh báo khẩn cấp không dây ICP DAS iSOS-800-PT CR
Feature
Introduction
iSOS-800-PT is a handheld wireless emergency call button product, by means of sub-1G RF communication interface, it can approach the real wireless deployment. It provides emergency help return function, improve personal safety protection. This system is very suitable for public area construction. For example, public toilet, hospital, nursing homes, open campus, large parking lots and etc. iSOS-800-PT installs a CR-123A battery delivers reliable electricity and reduces the cost of wiring. Realize emergency information transmission, meet low energy consumption, wireless communication and emergency monitoring, etc., greatly reduce the time and human resources required for system construction and maintenance.
Application
Specifications
| RF | |
|---|---|
| Channels | 0 ~ 15 (Selectable by DIP Switch) |
| Group ID | 0 ~ 3 (Selectable by DIP Switch) |
| Radio Frequency | 433.1000 ~ 434.6000 MHz |
| Transmission Power | 9±1dBm (PA Off) / 18±1dBm (PA On) |
| Transmission Cycle | 1 / 10 / 30 / 60 Secs. 3 / 5 / 10 / 30 Mins. (Selectable by DIP Switch) 1 Sec.(Emergency Triggered Only) |
| Transmission Distance (LoS) | 50 m |
| Node ID | 1 ~ 31 configured by DIP switch |
| Antenna | |
|---|---|
| Type | 0.83 dBi Chip antenna (Omni-directional) |
| Power | |
|---|---|
| Consumption | 1.069mAh@1 Day |
| Battery | 1 x CR123A (3.0 VDC) Battery Life: 2 years (Working Duty: 1 Min.) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 43 x 70 x 21 (W x L x H) |
| Installation | Hook |
| Environment | |
|---|---|
| Operating Temperature | -25℃ ~ +60℃ |
| Storage Temperature | -30 ~ +80°C (No battery included) -20 ~ +45°C (Battery included) |
| Humidity | 20 ~ 65% RH(Non-condensing) |
Download
Ordering Information
| iSOS-800-PT CR | iSOS Handheld emergency call button module (RoHS) (Asia Only) |
