Cảm biến đo nhiệt độ + độ ẩm không dây iWSN ICP DAS iWSN-010 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

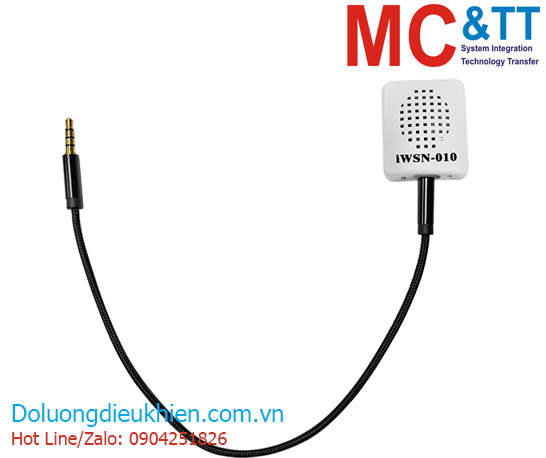

iWSN temperature and humidity sensing module

THÔNG TIN SẢN PHẨM

Features

Measurement Ranges: -20 ~ +60°C and 10 ~ 95% RH
Accuracy: +/-0.3°C; +/-1.8% RH
Powered by iWSN sensing module
Offers wall-mount mechanism and magnet for installation

Introduction

In order to upgrade the flexibility and extensibility of WSN environmental sensing module and fit various applications, the iWSN-010 is developed to connect to the iWSN environmental sensing module, it can offer temperature and humidity measurement function. The iWSN-010 is energized by iWSN environmental sensing module so that there is no external power supply needed. For convenient setting up and maintaining the application, the iWSN-010 provides wall-mount mechanism and magnet adsorption for installation.

Specifications

Temperature Measurement
Range	-20 ~ +60°C
Resolution	0.1°C
Accuracy	Typical: ±0.3°C

Humidity Measurement
Accuracy	Typical: ±3% RH @ 20 ~ 80% RH
Range	10 ~ 95% RH
Resolution	0.1% RH

Power
Consumption	0.005 W
Input Type	iWSN sensing module provides power through the audio line.

Mechanical
Dimensions (mm)	25 x 20.2 x 30 (W x L x H)
Installation	Wall-mount or magnet adsorption

Environmental
Operating Temperature	-20 °C ~ +60 °C
Storage Temperature	-30 ~ +80°C
Humidity	10 ~ 95% RH, Non-condensing

Download

Data sheet

Documents

Ordering infromation

iWSN-010 CR

iWSN temperature and humidity sensing module (RoHS)
