Miễn phí vận chuyển với đơn hàng từ 10.000.000đCảm biến đo CO2/TVOC + nhiệt độ + độ ẩm không dây iWSN ICP DAS iWSN-012 CR
Features
Introduction

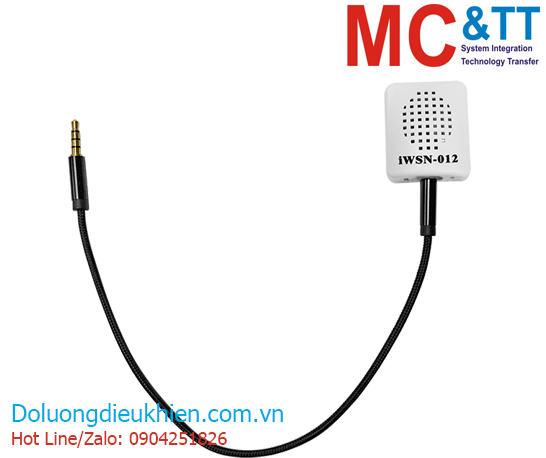

In order to upgrade the flexibility and extensibility of WSN environmental sensing module and fit various applications, the iWSN-012 is developed to connect to the iWSN environmental sensing module, it can offer CO2e and TVOC measurement function. The iWSN-012 is energized by iWSN environmental sensing module so that there is no external power supply needed. For convenient setting up and maintaining the application, the iWSN-012 provides wall-mount mechanism and magnet adsorption for installation.
Specifications
| CO2 Measurement | |
|---|---|
| Range | 400 ppm to 60000 ppm |
| Resolution | 1 ppm (400 ppm~ 1479 ppm) 3 ppm (1479 ppm~ 5144 ppm) 9 ppm (5144 ppm~ 17597 ppm) 31 ppm (17597 ppm~ 60000 ppm) |
| TVOC Measurement | |
|---|---|
| Range | 0 ppb to 60000 ppb |
| Resolution | 1 ppb (0 ppb~ 2008 ppb) 6 ppb (2008 ppb~ 11110 ppb) 32 ppb (11110 ppb~ 60000 ppb) |
| Power | |
|---|---|
| Consumption | 0.16W |
| Input Type | iWSN environmental sensing module provides power through the audio line. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 25 x 30 x 20.2 (W x L x H) |
| Installation | Wall-mount or magnet adsorption |
| Environmental | |
|---|---|
| Operating Temperature | 0 °C ~ +45 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Download
Ordering infromation
| iWSN-012 CR | iWSN CO2e/TVOC sensing module (RoHS) |
