Cảm biến đo CO + nhiệt độ + độ ẩm không dây iWSN ICP DAS iWSN-101 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

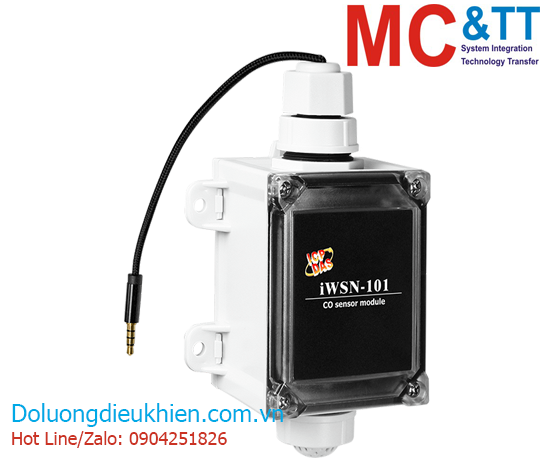

iWSN CO sensing module

THÔNG TIN SẢN PHẨM

Features

Supports CO measurement
Measurement Ranges: CO 0 ppm to 1000 ppm
Powered by iWSN sensing module
Offers DIN-rail, wall-mount mechanism and magnet for installation

Introduction

In order to upgrade the flexibility and extensibility of WSN environmental sensing module and fit various applications, the iWSN-101 is developed to connect to the iWSN environmental sensing module, it can offer CO measurement function. The iWSN-101 is energized by iWSN environmental sensing module so that there is no external power supply needed. For convenient setting up and maintaining the application, the iWSN-101 provides DIN-rail, wall-mount mechanism and magnet adsorption for installation.

Specifications

CO Measurement
Range	0 ppm to 1000 ppm
Resolution	1 ppm

Power
Consumption	0.017 W
Input Type	iWSN environmental sensing module provides power through the audio line.

Mechanical
Dimensions (mm)	91 x 131 x 55 (W x L x H)
Installation	DIN-Rail or Wall-mount or magnet adsorption

Environmental
Operating Temperature	0 °C ~ +45 °C
Storage Temperature	30 ~ +80°C
Humidity	10 ~ 95% RH, Non-condensing

Download

Data sheet

Documents

Ordering infromation

iWSN-101 CR

iWSN CO sensing module (RoHS)
