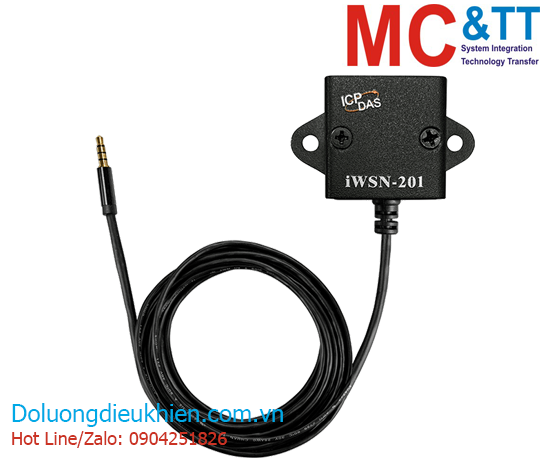

Miễn phí vận chuyển với đơn hàng từ 10.000.000đCảm biến không dây iWSN đo rung 1 trục ICP DAS iWSN-201 CR
Features
Introduction
In order to upgrade the flexibility and extensibility of WSN environmental sensing module and fit various applications, the iWSN-201 is developed to connect to the iWSN environmental sensing module, it can offer 1-axis vibration measurement function. The iWSN-201 is energized by iWSN environmental sensing module so that there is no external power supply needed. For convenient setting up and maintaining the application, the iWSN-201 provides wall-mount mechanism and magnet adsorption for installation.
Specifications
| Vibration Measurement | |
|---|---|
| Data Type | Uniaxial RMS, Maximum value |
| Sensor Type | 1-axis MEMS |
| Range | ±8g |
| Sampling Rate | Up to 10 kHz |
| Power | |
|---|---|
| Consumption | 0.15 W |
| Input Type | iWSN environmental sensing module provides power through the audio line. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 51 x 30 x 15 (W x L x H) |
| Installation | Wall-mount or magnet adsorption |
| Environmental | |
|---|---|
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Download
Ordering infromation
| iWSN-201 CR | iWSN 1-axis vibration sensing module (RoHS) |
