Miễn phí vận chuyển với đơn hàng từ 10.000.000đCảm biến không dây iWSN đo rung 3 trục ICP DAS iWSN-203 CR
Features
Introduction

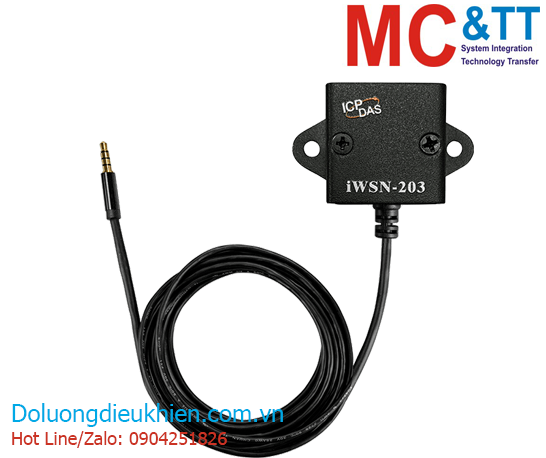

In order to upgrade the flexibility and extensibility of WSN environmental sensing module and fit various applications, the iWSN-203 is developed to connect to the iWSN environmental sensing module, it can offer 3-axis vibration measurement function. The iWSN-203 is energized by iWSN environmental sensing module so that there is no external power supply needed. For convenient setting up and maintaining the application, the iWSN-203 provides wall-mount mechanism and magnet adsorption for installation.
Specifications
| Vibration Measurement | |
|---|---|
| Data Type | x, y, z axes of the RMS, x, y, z axes of the maximum value, triaxial vector value |
| Sensor Type | 3-axis MEMS |
| Range | ±8g |
| Sampling Rate | Up to 1.5 kHz |
| Power | |
|---|---|
| Consumption | 0.024 W |
| Input Type | iWSN environmental sensing module provides power through the audio line. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 51 x 30 x 15 (W x L x H) |
| Installation | Wall-mount or magnet adsorption |
| Environmental | |
|---|---|
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Download
Ordering infromation
| iWSN-203 CR | iWSN 3-axis vibration sensing module (RoHS) |
