Feature
Introduction

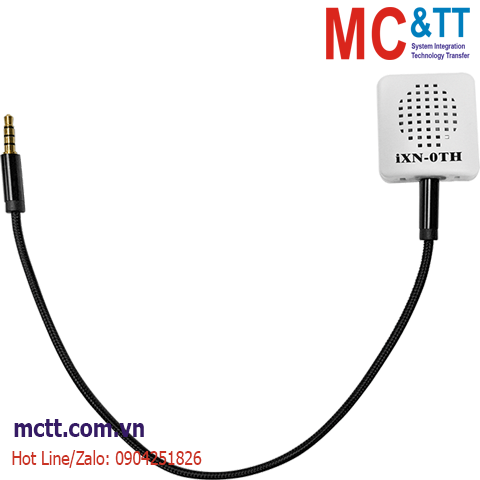

In order to upgrade the flexibility and extensibility of iWSN environmental sensing module and fit various applications, the iXN-0TH is developed to connect to the iWSN environmental sensing module, it can offer temperature and humidity measurement function. The iXN-0TH is energized by iWSN environmental sensing module so that there is no external power supply needed. For convenient setting up and maintaining the application, the iXN-0TH provides wall-mount mechanism and magnet adsorption for installation.
Application
Environmental temperature and humidity monitoring system for electronics factory
Specifications
| Temperature Measurement | |
|---|---|
| Range | -20 ~ +60°C |
| Resolution | 0.1°C |
| Accuracy | Typical: ±0.3°C |
| Humidity Measurement | |
|---|---|
| Range | 10 ~ 95% RH |
| Resolution | 0.1% RH |
| Accuracy | Typical: ±3% RH @ 20 ~ 80% RH |
| Power | |
|---|---|
| Consumption | 0.005 W |
| Input Type | iWSN environmental sensing module provides power through the audio line. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 25 x 20.2 x 30 (W x L x H) |
| Installation | Wall-mount or magnet adsorption |
| Cable Length | 27 cm |
| Environment | |
|---|---|
| Operating Temperature | -20 °C ~ +60 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Download
Ordering Information
| iXN-0TH CR | iWSN temperature and humidity sensing module, 27 cm cable (RoHS) |
