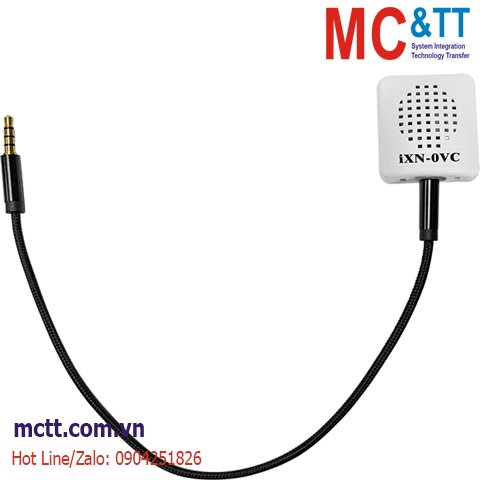

Module cảm biến không dây đo CO2e/TVOC ICP DAS iXN-0VC CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

iWSN CO2e/TVOC sensing module

THÔNG TIN SẢN PHẨM

Feature

Supports CO2e/TVOC measurement
Measurement Ranges
CO2e: 400 ppm to 60000 ppm
TVOC: 0 ppb to 60000 ppb
Powered by iWSN sensing module
Offers wall-mount mechanism and magnet for installation

Introduction

In order to upgrade the flexibility and extensibility of iWSN environmental sensing module and fit various applications, the iiXN-0VC is developed to connect to the iWSN environmental sensing module, it can offer CO2e and TVOC measurement function. The iXN-0VC is energized by iWSN environmental sensing module so that there is no external power supply needed. For convenient setting up and maintaining the application, the iXN-0VC provides wall-mount mechanism and magnet adsorption for installation.

Application

Factory environmental monitoring system,

Specifications

CO2e Measurement
Rnge	400 ppm to 60000 ppm
Resolution	1 ppm (400 ppm~ 1479 ppm) 3 ppm (1479 ppm~ 5144 ppm) 9 ppm (5144 ppm~ 17597 ppm) 31 ppm (17597 ppm~ 60000 ppm)

TVOC Measurement
Range	0 ppb to 60000 ppb
Resolution	1 ppb (0 ppb~ 2008 ppb) 6 ppb (2008 ppb~ 11110 ppb) 32 ppb (11110 ppb~ 60000 ppb)

Power
Consumption	0.16W
Input Type	iWSN environmental sensing module provides power through the audio line.

Mechanical
Dimensions (mm)	25 x 30 x 20.2 (W x L x H)
Installation	Wall-mount or magnet adsorption
Cable Length	27 cm

Environment
Operating Temperature	0 °C ~ +45 °C
Storage Temperature	-30 ~ +80°C
Humidity	10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

iXN-0VC CR

iWSN CO2e/TVOC sensing module, 27 cm cable (RoHS)
