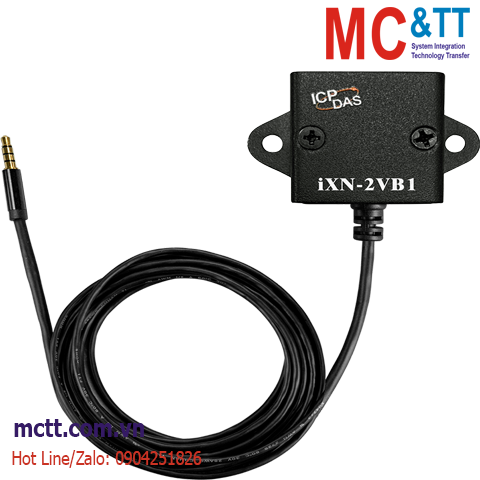

Module cảm biến không dây đo rung 1 trục ICP DAS iXN-2VB1 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

iWSN 1-axis vibration sensing module

THÔNG TIN SẢN PHẨM

Feature

Supports 1-axis vibration measurement
Sensor type: 1-axis MEMS
Frequency Range: 10 Hz to 1 kHz
Vibration Measuring Range: ±8g
Data Type (g): Uniaxial RMS, Maximum
Powered by iWSN sensing module
Offers wall-mount mechanism and magnet for installation

Introduction

In order to upgrade the flexibility and extensibility of WSN environmental sensing module and fit various applications, the iXN-2VB1 is developed to connect to the iWSN environmental sensing module, it can offer 1-axis vibration measurement function. The iXN-2VB1 is energized by iWSN environmental sensing module so that there is no external power supply needed. For convenient setting up and maintaining the application, the iXN-2VB1 provides wall-mount mechanism and magnet adsorption for installation.

Application

Factory environmental monitoring system,

Specifications

Vibration Measurement
Sensor Type	1-axis MEMS
Data Type	Uniaxial RMS, Maximum value
Amplitude Range	±8g
Frequency Range	10 Hz to 1 kHz

Power
Consumption	0.15 W
Input Type	iWSN environmental sensing module provides power through the audio line.

Mechanical
Dimensions (mm)	51 x 30 x 15 (W x L x H)
Installation	Wall-mount or magnet adsorption
Cable Length	150 cm

Environment
Operating Temperature	-25 °C ~ +75 °C
Storage Temperature	-30 ~ +80°C
Humidity	10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

iXN-2VB1 CR

iWSN 1-axis vibration sensing module, 150 cm cable (RoHS)
