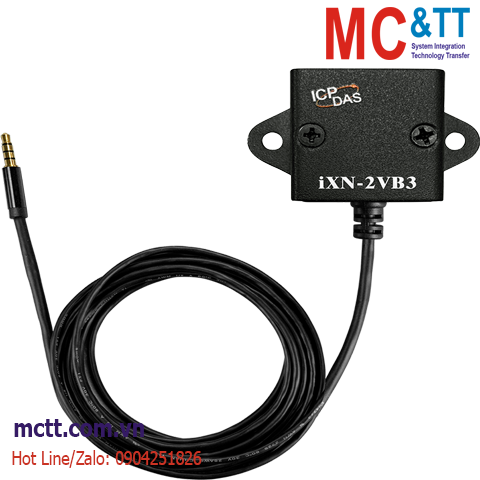

Module cảm biến không dây đo rung 3 trục ICP DAS iXN-2VB3 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

iWSN 3-axis vibration sensing module

THÔNG TIN SẢN PHẨM

Feature

Supports 3-axis vibration measurement
Sensor type: 3-axis MEMS
Frequency Range: 10 Hz to 500 Hz
Vibration Measuring Range: ±8g
Data Type (g): x, y, z axes of the RMS, the maximum value; triaxial vector value
Powered by iWSN sensing module
Offers wall-mount mechanism and magnet for installation

Introduction

In order to upgrade the flexibility and extensibility of iWSN environmental sensing module and fit various applications, the iXN-2VB3 is developed to connect to the iWSN environmental sensing module, it can offer 3-axis vibration measurement function. The iXN-2VB3 is energized by iWSN environmental sensing module so that there is no external power supply needed. For convenient setting up and maintaining the application, the iXN-2VB3 provides wall-mount mechanism and magnet adsorption for installation.

Application

Factory environmental monitoring system,

Specifications

Vibration Measurement
Sensor Type	3-axis MEMS
Data Type	x, y, z axes of the RMS, x, y, z axes of the maximum value, triaxial vector value
Amplitude Range	±8g
Frequency Range	10 Hz to 500 Hz

Power
Consumption	0.024 W
Input Type	Powered by a iWSN environmental sensing module through the audio line.

Mechanical
Dimensions (mm)	51 x 30 x 15 (W x L x H)
Installation	Wall-mount or magnet adsorption
Cable Length	150 cm

Environment
Operating Temperature	-25 °C ~ +75 °C
Storage Temperature	-30 ~ +80°C
Humidity	10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

iXN-2VB3 CR

iWSN 3-axis vibration sensing module, 150 cm cable (RoHS)
