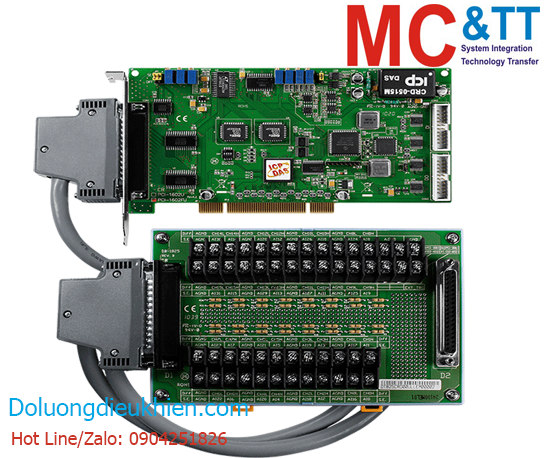

Card PCI 32 kênh AI 16 bits 200 kS/s + 2 kênh AO + 16 kênh DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS PCI-1602FU/S CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Universal PCI, 200 kS/s, 32-ch, 16-bit AI Multifunction Board (8 K word FIFO)

THÔNG TIN SẢN PHẨM

Features

Supports the +3.3/+5 V PCI bus
16-bit AD Converter, 200kHz Sampling Rate
32 single-ended/ 16 differential Analog Inputs
Built-in 8192 samples FIFO for Analog Inputs
Three external triggers: post-trigger, pre-trigger, middle-trigger
2 channels, 12-bit volatge output
16 channels Digital Input
16 channels Digital Output
Pull-high/Pull-low Jumpers for DI Ports
Internal / external trigger

Introductions

The PCI-1602FU is a high performance multifunction card providing high-speed analog I/O and digital I/O functions. The PCI-1602FU has a universal PCI interface supporting both 3.3 V and 5 V PCI bus, and it features a continuous, 200 kS/s 16-bit resolution A/D converter, 8 K-sample hardware FIFO, a MagicScan controller (for multi-channel scan), 2-ch 16-bit D/A converter, 16-ch digital input and 16-ch digital output. The PCI-1602U provides either 32-ch single-ended or 16-ch differential analog inputs which are jumper selectable, and a programmable high speed PGA is equipped for gain controls (1, 2, 4 and 8).

The PCI-1602FU has a Card ID switch for users to recognize the board by the ID via software when using two or more PCI-1602FU cards in one computer. The pull-high/pull-low jumpers of the card allow user to predefine the DI status instead of floating when the DI channels are unconnected or broken.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

ICP DAS PC-Based Multifunction Board Selection Guide
Model Name	D/A Channel	A/D Channel	A/D Sampling Rate	FIFO ize	Software Trigger (Polling)	Pacer Scan (Magicscan)	Post-trigger Pre-trigger Middle-trigger	Interrupt function
PCI-1202LU	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	110 kS./s	1 k	V	V	V	-
PCI-1202HU	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	44 kS./s	1 k	V	V	V	-
PCI-1602U	12-bit, 2-ch	16-bit, 32 S.E/16 Diff	100 kS./s	8 k	V	V	V	-
PCI-1602FU	12-bit, 2-ch	16-bit, 32 S.E/16 Diff	200 kS./s	8 k	V	V	V	--
PCI-1800LU	12-bit, 2-ch	12-bit, 16 S.E/8 Diff	330 kS./s	1 k	V	V	V	-
PCI-1800HU	12-bit, 2-ch	12-bit, 16 S.E/8 Diff	44 kS./s	1 k	V	V	V	-
PCI-1802LU	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	330 kS./s	8 k	V	V	V	-
PCI-1802HU	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	44 kS./s	8 k	V	V	V	-
PCI-822LU	16-bit, 2-ch	12-bit, 32 S.E/16 Diff	250 kS./s	8 k	V	V	V	V	Cost-effective Programmable DIO
PCI-826LU	16-bit, 2-ch	16-bit, 32 S.E/16 Diff	250 kS./s	8 k	V	V	V	V	Cost-effective Programmable DIO

Accessories

Specification

Hardware
Card ID	Yes (4-bit)
Connector	Female DB37 x 1 Male 20-bit ribbon x 2

Analog Input
Channels	32 single-ended/16 differential
Range	Gain: 1, 2, 4, 8 Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V
Resolution	16-bit
Accuracy	0.01 % of FSR ±1 LSB @ 25 °C, ±10 V
Sampling Rate	200 kS/s. Max.
Input Impedance	10 MΩ/6 pF
Overvoltage Protection	Continuous ±35 Vp-p
Zero Drift	±4 ppm/°C of FSR
FIFO Size	8192 samples
Trigger Mode	Software, Internal programmable pacer, External (5 V/TTL)
Data Transfer	Polling

Analog Output
Channels	2
Range	Bipolar:±5 V, ±10 V
Resolution	12-bit
Accuracy	0.06% of FSR ±1 LSB @ 25 °C, ±10 V
Voltage Output Capability	±5 mA
Response Time	1.0 MHz (Typical)
Slew Rate	8.33 V/μs
Operation Mode	Static Update

Digital Input
Channels	16
Type	5 V/TTL
TTL Input, ON Voltage Level	2.0 V Min.
TTL Input, OFF Voltage Level	0.8 V Max.
Response Speed	1.0 MHz (Typical)
Trigger Mode	Static Update

Digital Output
Channels	16
Type	5 V/TTL
Operation Mode	Static Update
Voltage	Logic 0: 0.4 V Max. Logic 1: 2.4 V Min.
Max. Load Current	Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V
Response Speed	1.0 MHz (Typical)

Timer/Counter/Frequency
Channels	3 (Independent x 1/Internal pacer x 1/External pacer x 1)
Type	5 V/TTL
Resolution	16-bit
Input Frequency	10 MHz Max.
Reference Clock	Internal: 8 MHz

PC Bus
Type	3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus	16-bit

Power
Consumption	300 mA @ +5 V

Mechanical
Dimensions (mm)	105 x 188 x 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Manual

Data sheet

Odering information

PCI-1602FU/S CR

Universal PCI, 32-ch, 16-bit, 200 kS/s Analog Input Multifunction Board (8 K word FIFO) (RoHS)
Includes one CA-3710 D-Sub cable
