Card PCI 32 kênh AI 12 bits 250 kS/s + 2 kênh AO + 32 kênh DI/DO ICP DAS PCI-822LU CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Universal PCI, 250 kS/s, 32-ch, 12-bit AI Multifunction Board (8 K WORD FIFO)

THÔNG TIN SẢN PHẨM

Tính năng

Universal PCI (3.3 V/5 V) Interface
Supports Card ID (SMD Switch)
32 Single-ended/16 Differential Analog Input Channels
- 12-bit 250 kS/s High-speed AD
- Built-in MagicScan Controller
- Supports Software-trigger and Pacer-trigger
- 8 K-sample Hardware FIFO
2-channel, 16-bit Analog Output
32-channel programmable DI/O
- Pull-high and Pull-low Resistors for DI Channels
- Supports Digital Output Status Readback (Register Level)

Giới thiệu

The PCI-822LU is a high performance multifunction card providing high-speed analog I/O and digital I/O functions. The PCI-822LU card has a universal PCI interface supporting both 3.3 V and 5 V PCI bus. This card features a continuous, 250 k Samples/Sec 12-bit resolution A/D converter, 8 K samples hardware FIFO, 2-ch 16-bit D/A converter, 32-ch programmable digital I/O and DO read back. The PCI-822LU provides either 32-ch single-ended or 16-ch differential AIs which are jumper selectable. The PCI-822LU is equipped with a high speed PGA featuring programmable gain controls (1,2,4,8).

The PCI-822LU has the Card ID switch and pull-high/pull-low resisters for DI on board. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PCI-822LU cards in one computer. The pull-high/pull-low resisters allow specifying the DI status; when the DI channels are unconnected, the DI status will remain in high or low status other than floating.

The PCI-822LU provides two programmable trigger methods: software trigger and pacer trigger. The A/D channel scan function of PCI-822LU is so amazing, we call it MagicScan. The MagicScan controller takes out most works of getting A/D value such as select channel, set gain, settling time, trigger ADC and get data. With the built-in MagicScan and interrupt features, it is effectively off-loading your CPU from the job. Even in channel scan mode, it can have different gain code for each channel, and the sampling rate can still reach 250 kS/s totally. The PCI-822LU is suitable for high end applications.

ICP DAS PC-Based Multifunction Board Selection Guide
Model Name	Bus	D/A Channel	A/D Channel	A/D Sampling Rate	FIFO Size	Software Trigger (Polling)	Channel Scan (Pacer)	External Triger	Interrupt function
PEX-1202L	PCI Express	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	110 kS./s	1 k	V	V	V	-
PCI-1202LU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	110 kS./s	1 k	V	V	V	-
PEX-1202H	PCI Express	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	44 kS./s	1 k	V	V	V	-
PEX-1202HU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	44 kS./s	1 k	V	V	V	-
PCI-1602U	Universal PCI	12-bit, 2-ch	16-bit, 32 S.E/16 Diff	100 kS./s	8 k	V	V	V	-
PCI-1602FU	Universal PCI	12-bit, 2-ch	16-bit, 32 S.E/16 Diff	200 kS./s	8 k	V	V	V	-
PCI-1800LU	Universal PCI	12-bit, 2-ch	12-bit, 16 S.E/8 Diff	330 kS./s	1 k	V	V	V	-
PCI-1800HU	Universal PCI	12-bit, 2-ch	12-bit, 16 S.E/8 Diff	44 kS./s	1 k	V	V	V	-
PCI-1802LU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	330 kS./s	8 k	V	V	V	-
PCI-1802HU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	44 kS./s	8 k	V	V	V	-
PCI-822LU	Universal PCI	16-bit, 2-ch	12-bit, 32 S.E/16 Diff	250 kS./s	8 k	V	V	V	V	Cost-effective Programmable DIO
PCI-826LU	Universal PCI	16-bit, 2-ch	16-bit, 32 S.E/16 Diff	250 kS./s	8 k	V	V	V	V	Cost-effective Programmable DIO

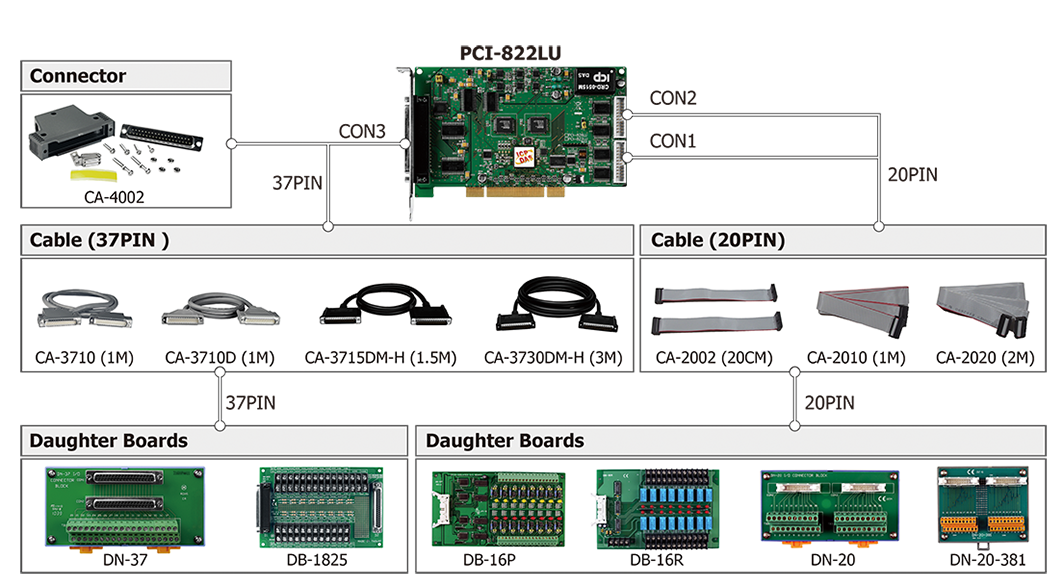

Accessories

Ứng dụng

High speed data acquisition system
Process monitor and control.
Vibration analysis.

Thông số kỹ thuật

Hardware
Card ID	Yes (4-bit)
Connector	Female DB37 x 1 20-pin box header x 2

Analog Input
Channels	32 single-ended/16 differential
Range	Gain: 1, 2, 4, 8 Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V
Resolution	12-bit
Accuracy	0.1% of FSR ±1 LSB @ 25 °C, ±10 V
Sampling Rate	250 kS/s. Max.
Overvoltage Protection	Continuous ±35 Vp-p
Zero Drift	15 ppm/°C of FSR
FIFO Size	8192 samples
Trigger Mode	Software, Pacer
Data Transfer	Polling, Interrupt

Analog Output
Channels	2
Range	-5 V ~ 5 V , -10 V ~ 10 V, 0 ~ 10 V, 0 ~ 5 V
Resolution	16-bit
Accuracy	±6 LSB
Response Time	250 kHz (Typical)
Voltage Output Capability	±5 mA
Slew Rate	0.7 V/μs
Operation Mode	Static Update

Digital Input
Channels	32 (Bi-Direction)
Type	5 V/TTL
ON Voltage Level	2.0 V Min.
OFF Voltage Level	0.8 V Max.
Response Speed	1.0 MHz (Typical)
Pull-high/Pull-low Resistors	Yes
Trigger Mode	Static Update

Digital Output
Channels	32 (Bi-Direction)
Type	5 V/TTL
Operation Mode	Static Update
Load Voltage	Logic 0: 0.4 V Max. Logic 1: 2.4 V Min.
Load Current	Sink: 40 mA Source: 20 mA
Response Speed	1.0 MHz (Typical)
DO Readback	Yes

PC Bus
Type	3.3 V/5 V Universal PCI, 32-bit
Data Bus	16-bit

Power
Consumption	1 A @ +5 V (Max.)

Mechanical
Dimensions (mm)	150 X 170 X 22 (W x L x D)

Environment
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Data Sheet

Documents

Thông tin mua hàng

PCI-822LU CR

Universal PCI, 250 kS/s, 32-ch, 12-bit AI Multifunction Board (8 K WORD FIFO) (8 K WORD FIFO) (RoHS)
Includes one CA-4002 D-Sub connector
