Features
Introduction
The PCI-D96SU supports 3.3 V/5 V PCI bus. These cards provide 96 Digital I/O lines that consist of three 32-bit bi-directional ports for use in a variety of Digital I/O applications. Each channel could be setting for DI or Output. They provide a variety of operating voltage (+1.8 V, +2.5 V, +3.3 V and +5 V) for customers need.
The PCI-D96SU cards include an onboard Card ID switch that enables the board to be recognized via software if two or more boards are installed in the same computer. The pull-high/low jumpers allow the DI status to be predefined instead of remaining floating if the DI channels are disconnected or interrupted. The PCI-D96SU provides a single high-density connector that reduces the amount of installation space required for the card in the computer.
These cards support various OS versions, such as DOS and 32/64-bit Windows 10/8/7/2008/2003/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.

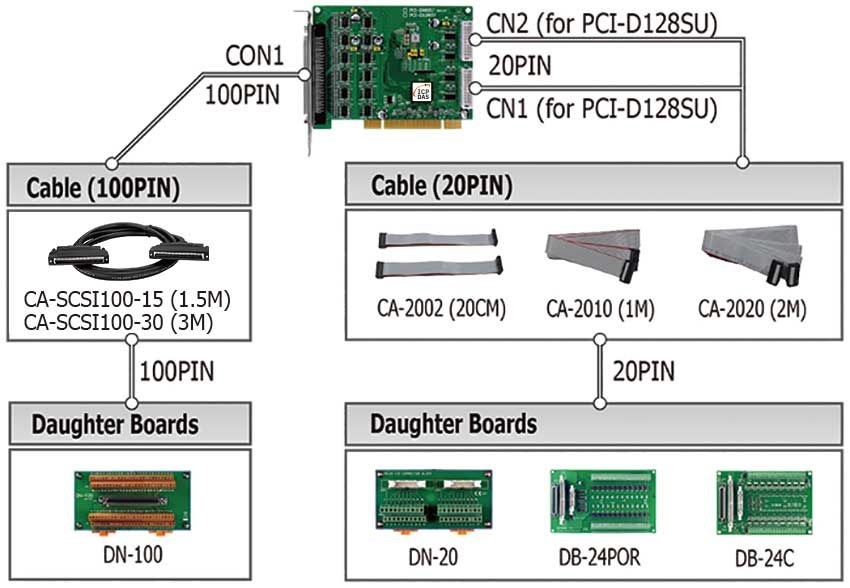

Accessories
Applications
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware | |
|---|---|
| Card ID | Yes (4-bit) |
| Connector | Female SCSI II 100-pin x 1 |
| Digital Input | |
|---|---|
| Channels | 96 (Bi-Direction) |
| Type | 1.8 V/TTL, 2.5 V/TTL , 3.3 V/TTL, 5 V/TTL |
| ON Voltage Level | 1.8V/TTL(Logic 1: 1.2 V Min.) 2.5V/TTL(Logic 1: 1.7 V Min.) 3.3V/TTL(Logic 1: 2.0 V Min.) 5V/TTL(Logic 1: 3.5 V Min.) |
| OFF Voltage Level | 1.8V/TTL(Logic 0: 0.65 V Max.) 2.5V/TTL(Logic 0: 0.7 V Max.) 3.3V/TTL(Logic 0: 0.8 V Max.) 5V/TTL(Logic 0: 1.5 V Max.) |
| Response Speed | 1 MHz (Typical) |
| Trigger Mode | Software (Pattern Match, Change of Status) |
| Data Transfer | Polling, Interrupt |
| Digital Output | |
|---|---|
| Channels | 96 (Bi-Direction) |
| Type | 1.8 V/TTL, 2.5 V/TTL , 3.3 V/TTL, 5 V/TTL |
| Sink/Source (NPN/PNP) | Sink: 6 mA @ 0.33 V Source: 6 mA @ 4.77 V |
| Operation Mode | Static update, Waveform generation |
| Load Voltage | 1.8V/TTL(Logic 0: 0.65 V Max. ,Logic 1: 1.2 V Min.) 2.5V/TTL(Logic 0: 0.7 V Max. ,Logic 1: 1.7 V Min.) 3.3V/TTL(Logic 0: 0.8 V Max. ,Logic 1: 2.0 V Min.) 5V/TTL(Logic 0: 1.5 V Max. ,Logic 1: 3.5 V Min.) |
| Response Speed | 1 MHz (Typical) |
| PC Bus | |
|---|---|
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 32-bit |
| Power | |
|---|---|
| Consumption | 600 mA @ +5 V |
| Mechanical | |
|---|---|
| Dimensions (mm) | 105 x 129 x 22 (W x L x D) |
| Environment | |
|---|---|
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Download
Ordering Information
| PCI-D96SU CR | Universal PCI, 96-ch Digital I/O Board (RoHS) |
