Card PCI 8 kênh vào số DI + 8 kênh đầu ra Relay ICP DAS PISO-725U CR
Features
Introduction
The PISO-725U universal PCI card supports 3.3 V/5 V PCI bus. These cards contain 8 electromechanical Relay Output channels and 8 isolated or non-isolated Digital Input channels. The DI channels can be set to either isolated or non-isolated via a hardware jumper, and each channel will generate an interrupt signal if the state is changed, which is very useful when monitoring for contact closures/openings as it is not necessary to continuously poll the inputs. The isolated DI channels use a short optical transmission path to transfer an electronic signal between elements of a circuit and keep them electrically isolated. With 3750 Vrms isolation protection, the DI channels allow the input signals to be completely floated so as to prevent ground loops and isolate the host computer from damaging voltages. The Relay Output channels are used where it is necessary to control a circuit using a low-power signal, with complete electrical isolation between the control and controlled circuits, or where several circuits must be controlled by one signal. All relays are de-energized (switched off) during power-on, and support ON/OFF status read back. The PISO-725U can be used in a variety of applications, including contact closure, external voltage sensing, load sensing and I/O control, etc.
The PISO-725U also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more cards in one computer.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

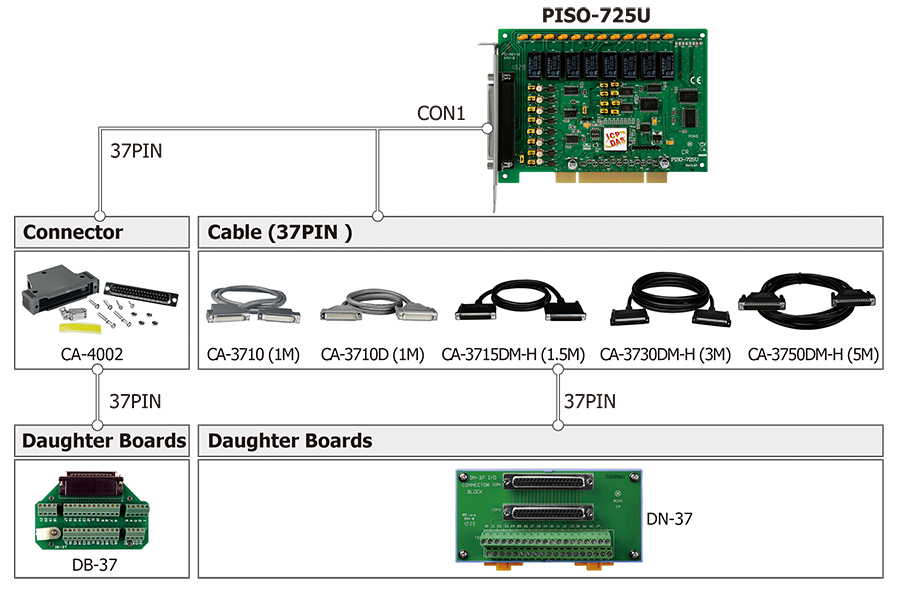

Accessories
Specification
Hardware | |
---|---|
Connector | Female DB37 x 1 |
Digital Input | |
---|---|
Channels | 8 |
Type | Photocoupler (Sink) |
Response Speed | 4 kHz (Typical) |
Trigger Mode | Static Update |
Wet Contact, ON Voltage Level | 9 ~ 24 V |
Wet Contact, OFF Voltage Level | 0 ~ 1 V |
Isolation | 3750 Vrms (Using external power) |
Relay Output | |
---|---|
Channels | 8 |
Type | Form C |
Contact Rating | AC: 0.3 A/120 V DC: 1 A/30 V |
Operate Time | 5 ms (Typical) |
Release Time | 10 ms (Typical) |
PC Bus | |
---|---|
Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
Data Bus | 8-bit |
Power | |
---|---|
Consumption | 300 mA @ +5 V |
Mechanical | |
---|---|
Dimensions (mm) | 110 x 150 x 22 (W x L x D) |
Environmental | |
---|---|
Operating Temperature | 0 ~ +60°C |
Storage Temperature | -20 ~ +70°C |
Humidity | 5 ~ 85% RH, Non-condensing |
Download
Odering information
PISO-725U CR | Universal PCI, 8-ch Relay Output and 8-ch Isolated Digital Input Board (RoHS) Includes one CA-4002 D-Sub connector |
