Miễn phí vận chuyển với đơn hàng từ 10.000.000đCard PCI 16 kênh vào số DI + 16 kênh đầu ra số DO ICP DAS PCI-P16C16U CR
Features
Introduction
The PCI-P16C16U universal PCI card supports 3.3 V/5 V PCI bus. These cards contain 16 optically isolated Digital Input channels and 16 open collector (Sink, NPN) Digital Output channels. The DI channels provide 5000 Vrms isolation protection that allows the input signals to be completely floated so as to prevent ground loops and isolate the host computer from damaging voltages. The open collector output (DO) channels are typically used for alarm and warning notification, control of signal output, control of external circuits that require a higher voltage level, and signal transmission applications, etc.
The PCI-P16C16U also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more cards in one computer.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

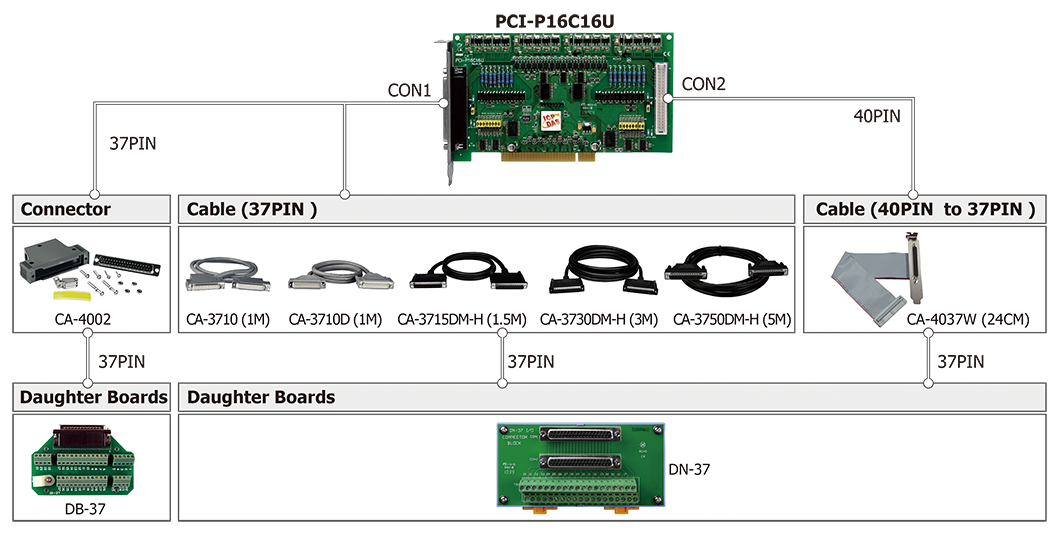

Accessories
Specification
| Hardware | |
|---|---|
| Card ID | Yes (4-bit) |
| Connector | Female DB37 x 1 40-pin box header x 1 |
| Digital Input | |
|---|---|
| Channels | 16 |
| Type | Photocoupler (Sink or Source) |
| Response Speed | Without Filter: 50 kHz (Typical) With Filter: 0.455 kHz (Typical) |
| Trigger Mode | Static Update |
| Wet Contact, ON Voltage Level | AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz) |
| Wet Contact, OFF Voltage Level | AC/DC 0 ~ 1 V |
| Isolation | 5000 Vrms |
| Digital Output | |
|---|---|
| Channels | 16 |
| Type | Sink(NPN), Open Collector |
| Operation Mode | Static Update |
| Max. Load Current | +30 V for one channel @ 100% duty |
| Response Speed | 4 kHz (Typical) |
| Isolation | 5000 Vrms |
| PC Bus | |
|---|---|
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 16-bit |
| Power | |
|---|---|
| Consumption | 800 mA @ +5 V |
| Mechanical | |
|---|---|
| Dimensions (mm) | 105 x 183 x 22 (W x L x D) |
| Environmental | |
|---|---|
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Download
Odering information
| PCI-P16C16U CR | Universal PCI, 16-ch Isolated Digital Input and 16-ch Open Collector Digital Output Board (Current Sinking, NPN type) (RoHS) Includes one CA-4037W cable and two CA-4002 D-Sub connectors |
