Card PCI 32 kênh đầu vào tương tự AI ICP DAS PISO-813U CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

Universal PCI, 10 kS/s, 32-ch, 12-bit Isolated AI Board

Gọi +84 904251826 để được trợ giúp

Card PCI 32 kênh đầu vào tương tự AI ICP DAS PISO-813U CR

Features

  • Support the +3.3/+5 V PCI bus
  • 16-bit AD Converter, 10kHz Sampling Rate
  • 32 single-ended Analog Inputs
  • 3750 Vrms bus isolation protection
  • Built-in DC/DC converter with 3000 VDC protection
  • Analog input range ‣Bipolar: +/-10 V,+/-5 V, +/-2.5 V, +/-1.25 V, +/-0.625 V ‣Unipolar: 0 ~ 10 V, 0 ~ 5 V, 0 ~ 2.5 V, 0 ~ 1.25 V
  • Card ID Function(SMD Switch)
  • Programmable gain control: 1, 2, 4, 8, 16
  • A/D trigger mode: Software Trigger
  • A/D data transfer mode : polling

Introduction

The PISO-813U card is bus-typed isolated A/D board and supports 3.3 V/5 V PCI bus. They feature 12-bit 32 single-ended analog inputs, 3750 Vrms bus-typed isolation protection and 10 kS/s data acquisition under DOS and Windows. It is the most cost effective isolated A/D board for the universal PCI in the world.

The PISO-813U also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more PISO-813U cards in one computer.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

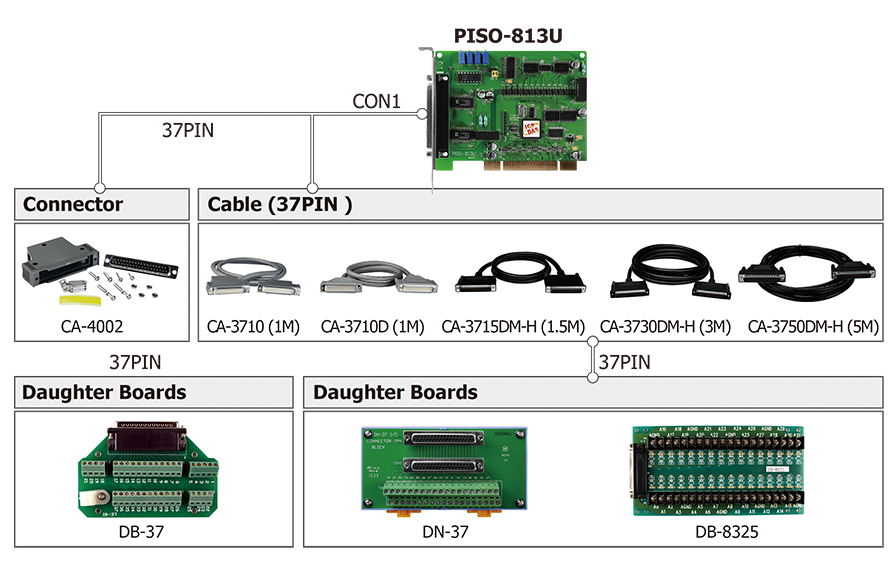

Accessories

Specification

Hardware
Card ID Yes (4-bit)
Connector Female DB37 x 1



Analog Input
Channels 32 single-ended
Range Gain: 1, 2, 4, 8, 16
Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625V
±5 V, ±2.5 V, ±1.25 V, ±0.625V
Unipolar Range: 0 ~ 10 V, 0 ~ 5 V, 0 ~ 2.5 V, 0 ~ 1.25 V, 0 ~ 0.625 V
Resolution 12-bit
Accuracy 0.01% of FSR ±1 LSB @ 25 °C, ± 10 V
Sampling Rate 10 kS/s. Max.
Input Impedance 10 MΩ/6 Pf
Overvoltage Protection Continuous ±35 Vp-p
Zero Drift ±25 ppm/°C of FSR
Trigger Mode Software
Isolation 3750 Vrms (Bus Type)
Data Transfer Polling



PC Bus
Type 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 8-bit



Power
Consumption 850 mA @ +5 V



Mechanical
Dimensions (mm) 92 x 128 x 22 (W x L x D)



Environmental
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Data sheet

Documents

Odering information

PISO-813U     CR  Universal PCI, 32-ch, 12-bit, 10 kS/s Isolated Analog Input Board (RoHS)
Includes one CA-4002 D-Sub connector
