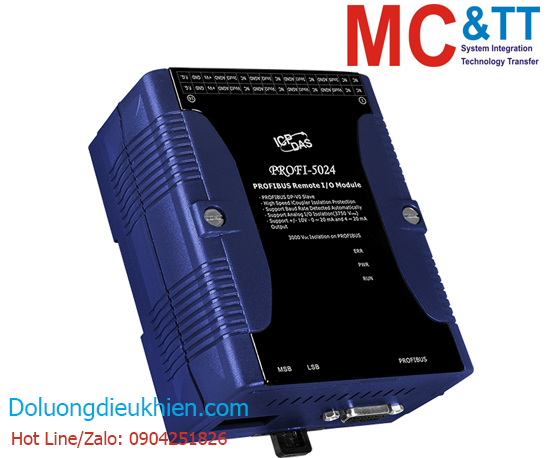

Module Profibus Slave 4 kênh đầu ra tương tự AO ICP DAS PROFI-5024 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

PROFIBUS Remote I/O Module (4-channel Isolated Analog Voltage & Current Output)

THÔNG TIN SẢN PHẨM

Tính năng

• Protocol & Hierarchy : DP-V0 Slave
• Transmission Rate Setting : detected automatically
• Address Setting : Address 0~126 set by rotary switches or SSA Telegram
• I/O modules Configuration : Configured by GSD file
• Network Isolation Protection : High Speed iCoupler
• DC Isolation Protection : 3000 VDC on PROFIBUS side
• 4KV ESD Protection : Contact for each terminal
Giới thiệu

The PROFI-5024 is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 4-channel isolated analog voltage/current output with 3750Vrms field to logic isolation. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.

Ứng dụng

Industrial Automation
Factory Automation
Process Automation
Etc…

Thông số kỹ thuật

CPU Module
CPU	80186, 80 MHz or compatible
EEPROM	2 KB
Flash	512 KB
SRAM	512 KB
Watchdog Timer	Watchdog IC CPU built-in

LED Indicators
Status	PWR LED, RUN LED, ERR LED

Analog Output
Channels	4 Channel Voltage & Current Output, Isolation Voltage:3750Vrms
Range	+/- 10V, 0 ~ 20mA, 4 ~ 20mA
Accuracy	+/- 0.1% of FSR for Voltage Output ; +/- 0.2% of FSR for Current Output

PROFIBUS
Controller	Siemens SPC3
Transceiver	ADI ADM2486
Baud Rate	9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Isolation	3000 VDC for DC-to-DC, 3750 Vrms for bus-to-logic
Protocol	DP-V0

Power
Consumption	4 W

Mechanical
Dimensions (mm)	91 x 128 x 52 (W x L x H)
Installation	DIN-Rail

Environment
Operating Temperature	-25 ~ +75℃
Storage Temperature	-30 ~ +80 ℃
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Thông tin mua hàng

PROFI-5024 CR

PROFIBUS Remote I/O Module (4-channel Isolated Analog Voltage & Current Output) (RoHS)
