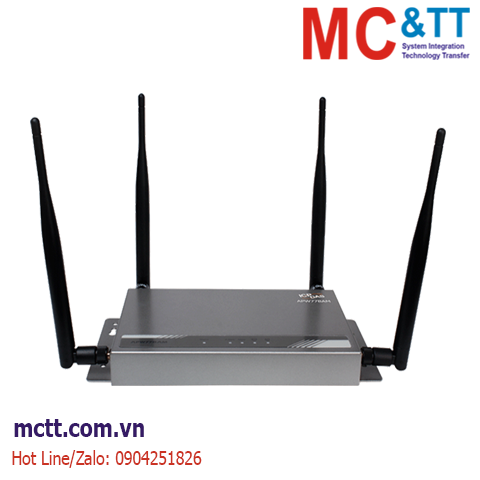

Bộ phát truy cập Wi-fi công nghiệp (Wi-Fi Access Point) ICP DAS APW77BAM CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Wi-Fi Access Point (with category A plug type) (RoHS)

THÔNG TIN SẢN PHẨM

Tính năng

Thin AP
Wall-Mount Wi-Fi Access Point
IEEE 802.11a/b/g/n/ac Wi-Fi Compliance
Configurable AP Transmit Power and Channel
Supports WEP, WPA, WPA2, WPA-PSK, WPA2-PSK and 802.1x
Segmented guest and corporate access with multiple SSIDs
One IEEE 802.3 af (PoE), or DC12V/1A

Giới thiệu

APW77BAM is designed for medium-sized businesses to extend the existing networks and has the ability to operate in different modes and can be used in a wide variety of wireless applications. Its Universal Repeater Mode not only has an easier way for setup, but also provides better performance and compatibility to create a larger wireless network infrastructure by linking up other access points. It also supports Multiple-SSID function to simultaneously emulate 8 APs with different ESSIDs and separate packets via VLAN IDs.

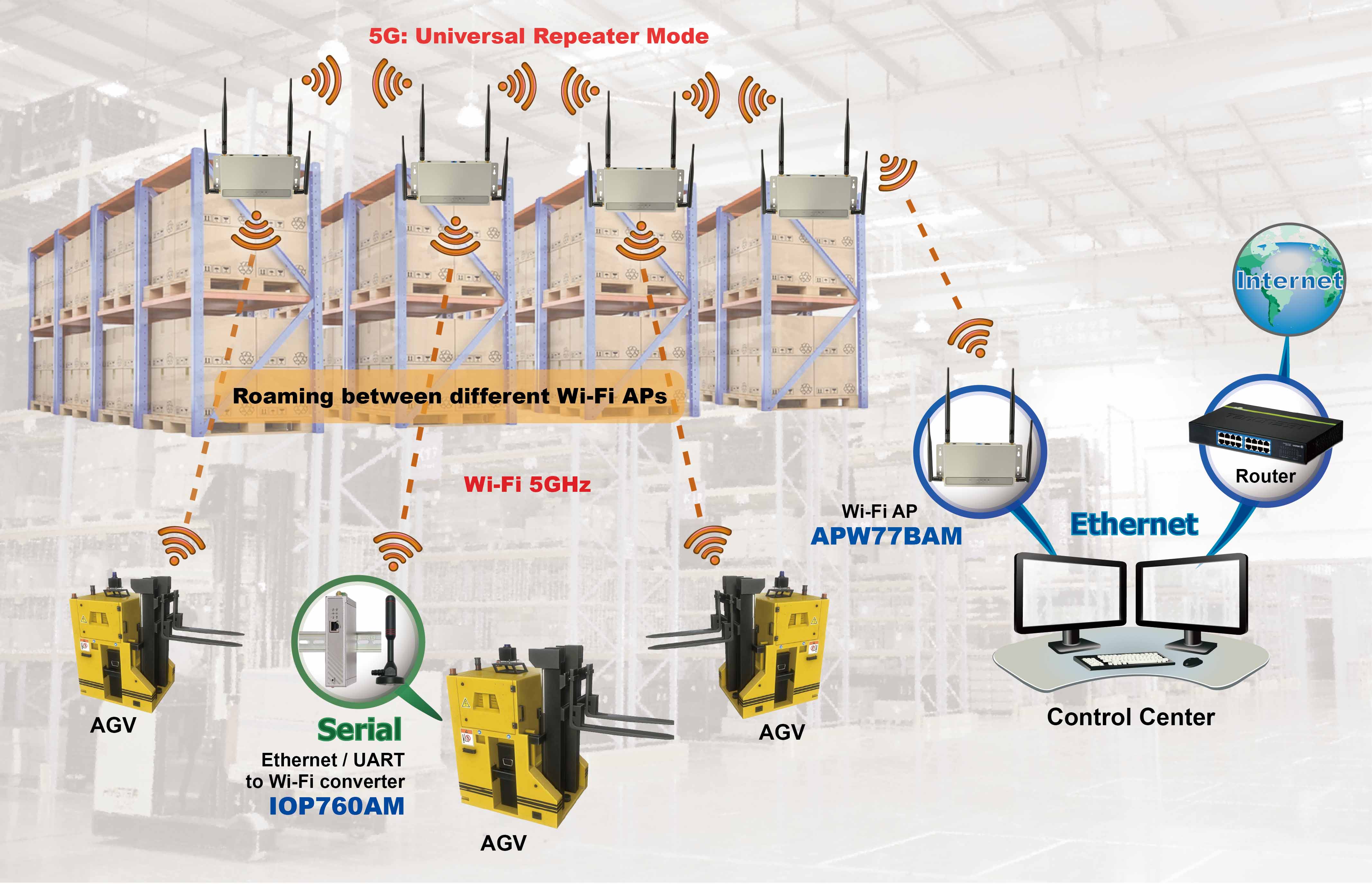

Ứng dụng

Thông số kỹ thuật

Wi-Fi
Transmission Distance (LoS)	50 meters (LOS)
Standard	IEEE 802.11a/b/g/n/ac

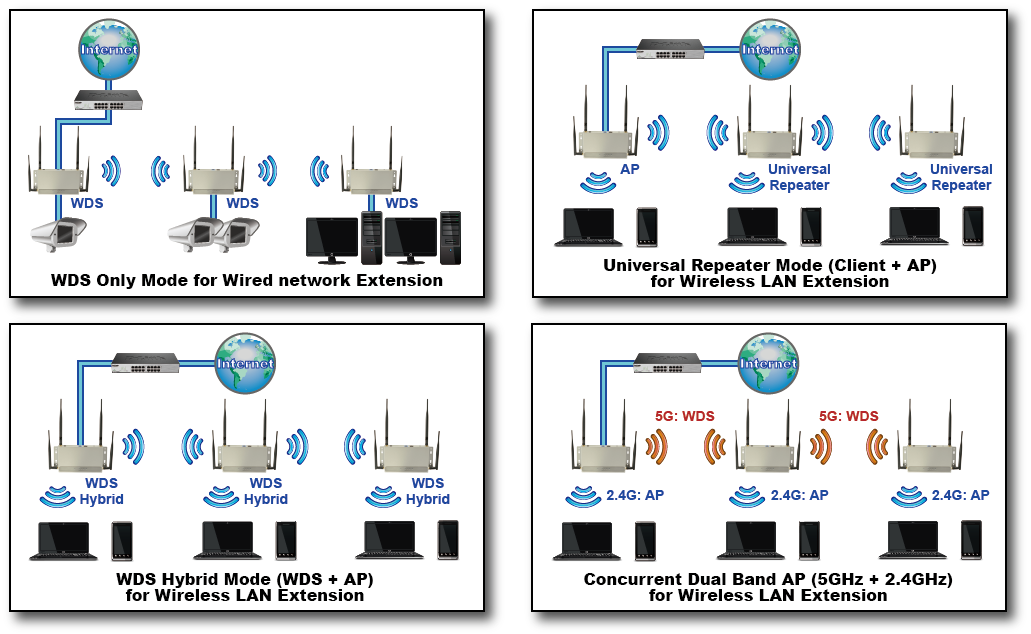

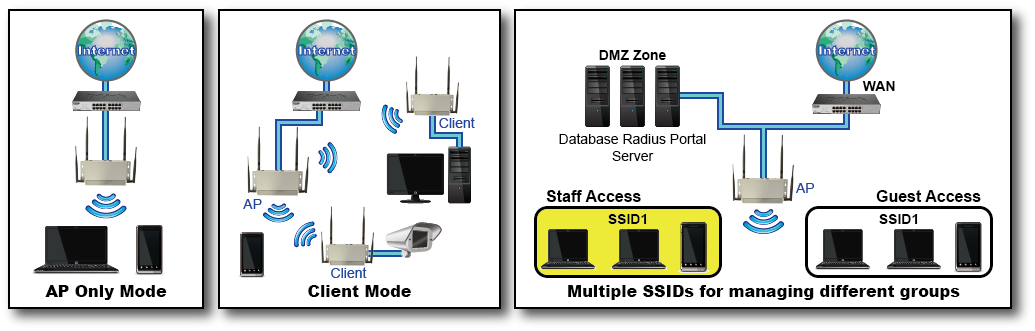

Mode	Thin AP AP Only/WDS Only/WDS Hybrid/Universal Repeater/Client Modes
Encryption	WEP / WPA / WPA2 / WPA-PSK / WPA2-PSK / 802.1x
Data Transmission Rate	2.4 GHz:300 Mbps(MIMO 2T2R) 5 GHz:866 Mbps(MIMO 2T2R)
Client	Max. 128 Clients
Channels	2.4 GHz:1~11 5 GHz:36/40/44/48;149/153/157/161/165
Antenna	Omni-Directional 5 dBi @ 2.4 GHz 5 dBi @ 5 GHz

Ethernet
Ports	2 × RJ45 GE
PoE	IEEE 802.3af PD

Power
Input Range	+12VDC/1A (DC Jack)

Mechanical
Dimensions (mm)	225 x 115 x 25 (W x L x H)(with Mounting kit)
Installation	Wall-Mount

Environment
Operating Temperature	0 ℃ ~ 50 ℃
Storage Temperature	-40 ℃ ~ 85 ℃
Humidity	10% ~ 95% (non-condensing)

Download

Data Sheet

Documents
