Module CANopen Slave 8 kênh RTD ICP DAS CAN-2015C CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

CANopen Slave Module of 8-channel RTD Input

THÔNG TIN SẢN PHẨM

Features

Provide default EDS file
Passed the validation of CiA CANopen Conformance Test tool
ESD Protection 4 KV Contact for each channel
Support Power Supply +10 ~ +30 VDC
Support CiA-301 v4.02, CiA-401 v2.1
Support Dynamic PDO

Introduction

CANopen is one kind of the network protocols based on the CAN bus and mainly used for embedded network system, such as industrial machine control , vehicle control system, factory automation, medical equipment control, remote data acquisition, environmental monitoring, and packaging machines control, etc.

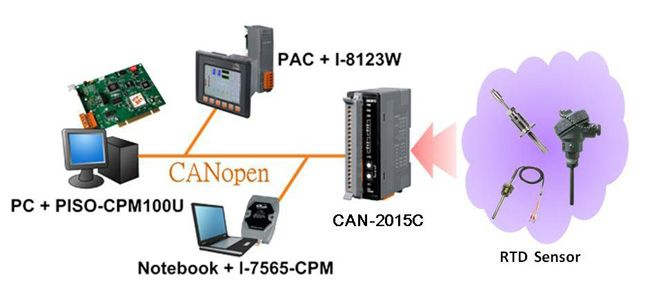

The CAN-2015C is a CANopen slave which follows the CiA 301 version 4.02 and CiA 401 version 2.1. This module provides 8 RTD input channels, and users can obtain the RTD input data or configure the CAN-2015C via the standard CANopen protocol. In order to be fully compatible with other CANopen devices, the CAN-2015C has passed the validation of the CiA CANopen Conformance Test tool. Therefore, it is very easy to integrate the CAN-2015C with the standard CANopen master by applying the EDS file. Combining with the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements.

Specification

CPU Module
Watchdog Timer	Hardware watchdog

LED Indicators
Status	3 LEDs to PWR, RUN and ERR

Analog Input
Channels	8 channels for 2-wire or 3-wire RTD
Sensor Type	Pt100, Pt1000, Ni120, Cu100, Cu1000, JPt100
Resolution	16-bit
Accuracy	+/-0.05% FSR
Sampling Rate	10 Samples/Sec. (Total)
Input Impedance	20 MΩ
Common Mode Rejection	150 dB
Normal Mode Rejection	100 dB
Overvoltage Protection	120 VDC / 110 VAC
Individual Channel Configuration	Yes
Zero Drift	+/- 0.5 μV/ °C
Span Drift	+/- 20 ppm/ °C
Isolation	3000 V DC-DC, 3000 Vrms photo-coupler
Open Thermocouple Detection	Yes

CANopen
Transceiver	NXP TJA1042
Baud Rate	10 k ~ 1 M
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor	Built-in 120Ω
Porotocol	CiA 301 v4.02, CiA 401 v2.1
Node ID	1 ~ 99
No. of PDOs	10 RxPDO , 10 TxPDO
PDO Mode	Event-triggered, remotely-requested, Cyclic and acyclic SYNC
Error Control	Node Guarding protocol / Heartbeat Producer
NMT	Slave
EMCY Message	Yes

Power
Consumption	1.5 W

Mechanical
Dimensions (mm)	33 x 99 x 78 ( W x L x H )
Installation	DIN-Rail

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

CAN-2015C CR

CANopen Slave Module of 8-channel RTD Input (RoHS)
