CANopen Slave Module of 8-channel Thermocouple Input

THÔNG TIN SẢN PHẨM

Features

NMT Slave
NMT Error Control support Guarding and Heartbeat
Provide default EDS file
Passed the validation of CiA CANopen conformance test tool
ESD Protection 4 KV Contact for each channel
Support Power Supply +10 ~ +30 VDC
Support CiA DS-301 v4.02, DSP-401 v2.1
Support Dynamic PDO

Introduction

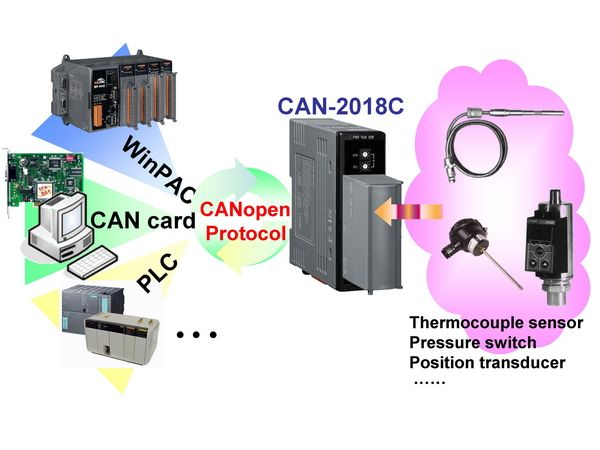

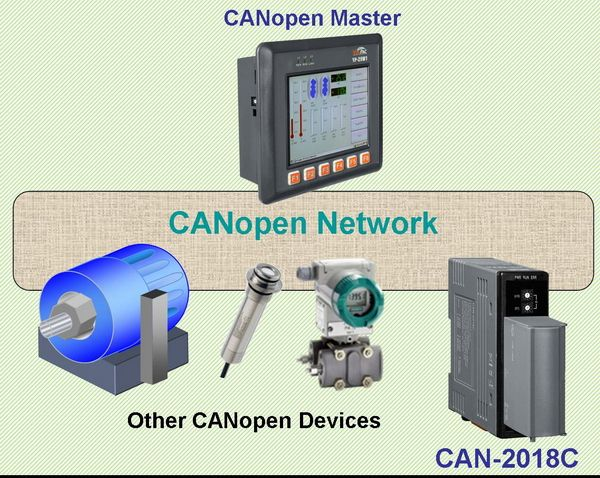

CAN-2018C module follows the DS-301 version 4.02 and DSP-401 version 2.1. You can access the thermocouple input status and set the configuration by using standard CANopen protocol. CAN-2018C has passed the validation of the CiA CANopen Conformance Test tool. Therefore, you can use it with standard CANopen master easily by applying the EDS file. CAN-2018C has 8-channel thermocouple input. It can be used to various applications. By owing to the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements. For more information about the CANopen master interfaces and other CANopen products, please refer to the following web site, please refer to the following web site.

Specification

CPU Module
Watchdog Timer	Hardware watchdog

LED Indicators
Status	3 LEDs to PWR, RUN and ERR

Analog Input
Channels	8
Sensor Type	+/- 15mV, +/- 50mV, +/- 100mV, +/- 500mV, +/- 1V, +/- 2.5V +/-20mA,(Requires Optional External 125 Ohm Resistor) Thermocouple (J, K, T, E, R, S, B, N, C)
Resolution	16-bit
Accuracy	+/-0.1% FSR
Sampling Rate	10 Samples/Sec. (Total)
Input Impedance	>400 kΩ
Common Mode Rejection	86 dB
Normal Mode Rejection	100 dB
Overvoltage Protection	240 Vrms
Individual Channel Configuration	Yes
Zero Drift	+/- 10 μV/ °C
Span Drift	+/- 25 ppm/ °C
Isolation	3000 VDC
Open Thermocouple Detection	Yes

CANopen
Transceiver	NXP TJA1042
Baud Rate	10 k ~ 1 M
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor	Built-in 120Ω
Porotocol	CiA 301 v4.02, CiA 401 v2.1
Node ID	1 ~ 99
No. of PDOs	10 RxPDO , 10 TxPDO
PDO Mode	Event Triggered, Remotely requested, Cyclic and acyclic SYNC
Error Control	Node Guarding protocol / Heartbeat Producer
NMT	Slave
EMCY Message	Yes

Power
Consumption	1.5 W

Mechanical
Dimensions (mm)	CAN-2018C, 33 x 99 x 78 ( W x L x H ) CN-1824, 29 x 43 x 83 ( W x L x H )
Installation	DIN-Rail

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

CAN-2018C/S CR

CANopen Slave Module of 8-channel Thermocouple Input.
Includes CAN-2018C module and a CN-1824 daughter board (RoHS)
