CANopen Slave Module of 4-channel 14-bit AO

THÔNG TIN SẢN PHẨM

Features

NMT Slave
Read-Back Accuracy ±1% of FSR
Provide default EDS file
ESD Protection 4 KV Contact for each channel
Support Power Supply +10 ~ +30 VDC
Support CiA DS-301 v4.02, DSP-401 v2.1
Support PDO Mapping

Introduction

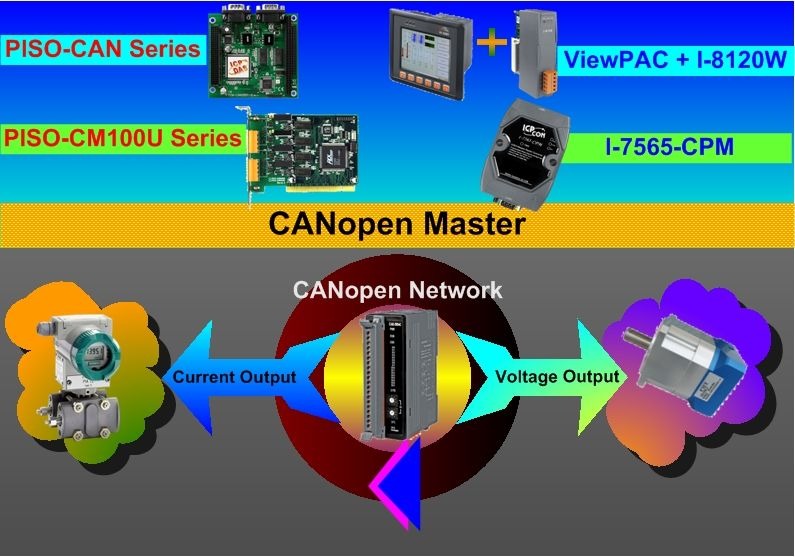

CANopen is one kind of the network protocols based on the CAN bus and mainly used for embedded network system, such as industrial machine control , vehicle control system, factory automation, medical equipment control, remote data acquisition, environmental monitoring, and packaging machines control, etc. The CAN-2024C module follows the CiA DS-301 version 4.02 and DSP-401 version 2.1. It is easy to access the analogue I/O status and set the configuration by using the standard CANopen protocol. The CAN-2024C has passed the validation of the CiA CANopen Conformance Test tool. Therefore, the provided EDS file is standard for any other standard CANopen masters. Owing to the 4-channel analog output and the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements. For more information about the CANopen master interfaces and other CANopen products, please refer to the following web site, please refer to the following web site.

Specification

CPU Module
Watchdog Timer	Hardware watchdog

LED Indicators
Status	3 LEDs to PWR, RUN and ERR

Analog Output
Channels	4
Type	0~ 5 V, +/- 5 V, 0~ 10 V, +/- 10 V, 0 ~ 20 mA, 4 ~ 20 mA
Resolution	14-bit
Accuracy	+/- 0.1 % of FSR for voltage output ; +/- 0.2 % of FSR for current output
Zero Drift	Voltage: +/-30μV/°C Current:: +/-0.2μV/°C
Span Drift	+/-20ppm/°C
Voltage Output Capability	10V@ 5mA
Current Load Resistance	External +24 V : 1050 Ohms
Power on Value	Yes
Isolation	3000 VDC

CANopen
Transceiver	NXP TJA1042
Baud Rate	10 k ~ 1 M
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor	Built-in 120Ω
Porotocol	CiA 301 v4.02, CiA 401 v2.1
Node ID	1 ~ 99
No. of PDOs	10 RxPDO , 10 TxPDO
PDO Mode	Event Triggered, Remotely requested, Cyclic and acyclic SYNC
Error Control	Node Guarding protocol or Heartbeat Producer
NMT	Slave
EMCY Message	Yes

Power
Consumption	1.5 W

Mechanical
Dimensions (mm)	33 x 99 x 78 ( W x L x H )
Installation	DIN-Rail

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

CAN-2024C CR

CANopen Slave Module of 4-channel 14-bit Analog Output (RoHS)
