CANopen Slave Module of 8-channel Isolated (Wet) DI, 8-channel Isolated (Sink, NPN) DO

THÔNG TIN SẢN PHẨM

Features

NMT Slave
Providing Pair-Connect function
Provide default EDS file
ESD Protection 4 KV Contact for each channel
Support Power Supply +10 ~ +30 VDC
Support CiA DS-301 v4.02, DSP-401 v2.1
Support PDO Mapping

Introduction

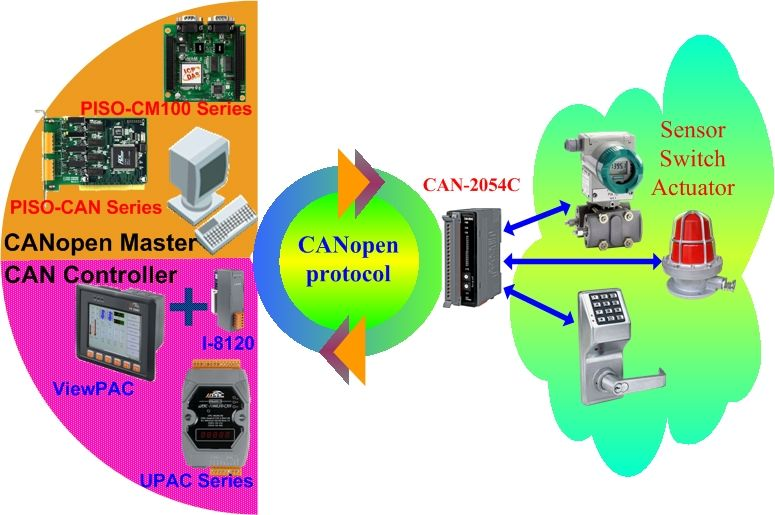

CANopen is one kind of the network protocols based on the CAN bus and mainly used for embedded network of machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipment control, remote data acquisition, environmental monitoring, and packaging machines control, etc. CAN-2054C module follows the CiA DS-301 version 4.02 and DSP-401 version 2.1. You can access the digital I/O status and set the configuration by using standard CANopen protocol. CAN-2054C has passed the validation of the CiA CANopen conformance test tool. Therefore, you can use it with standard CANopen master easily by applying the EDS file. CAN-2054C has isolated sink/source input 8 channel and isolated sink output 8 channel, It can be used to various applications, such as PNP, NPN, TTL, relay contact and so forth. By owing to the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements. For more information about the CANopen master interfaces and other CANopen products, please refer to the following web site.

Specification

CPU Module
Watchdog Timer	Hardware watchdog

LED Indicators
Status	3 LEDs to PWR, RUN and ERR

Digital Input
Channels	8 (Sink/Source)
Wet Contact, ON Voltage Level	+3.5 ~ +30 VDC
Wet Contact, OFF Voltage Level	+1 VDC Max.
Input Impedance	3 kΩ, 0.3 W

Digital Output
Channels	8 (Sink)
Type	Open-collector
Load Voltage	+5 ~ +30 VDC
Max. Load Current	700 mA per channel
Intra-module Isolation	3750 Vrms

CANopen
Transceiver	NXP TJA1042
Baud Rate	10 k ~ 1 M
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor	Built-in 120Ω
Porotocol	CiA 301 v4.02, CiA 401 v2.1
Node ID	1 ~ 99
No. of PDOs	10 RxPDO , 10 TxPDO
PDO Mode	Event Triggered, Remotely requested, Cyclic and acyclic SYNC
Error Control	Node Guarding protocol or Heartbeat Producer
NMT	Slave
EMCY Message	Yes

Power
Consumption	1.5 W

Mechanical
Dimensions (mm)	33 x 99 x 78 ( W x L x H )
Installation	DIN-Rail

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

CAN-2054C CR

CANopen Slave Module of 8-channel DI and DO (RoHS)
