CANopen Slave Module of 8-channel Isolated (Wet) DI, 8-channel Isolated (Source, PNP) DO

Gọi +84 904251826 để được trợ giúp

Module CANopen Slave 8 kênh DI + 8 kênh DO ICP DAS CAN-2055C CR

Features

  • NMT Slave

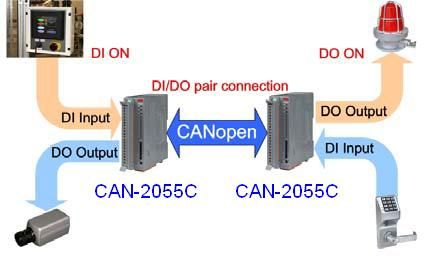

  • Provide Pair-Connect function
  • Provide default EDS file
  • ESDProtection 4KV Contact for each channel
  • Support Power supply 10 ~30VDC
  • Support CiA-301 v4.02, CiA-401 v2.1
  • Support PDOMapping

Introduction

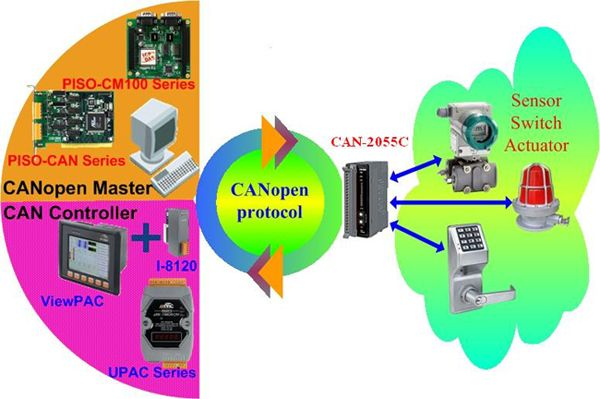

CANopen is one kind of the network protocols based on the CAN bus and mainly used for embedded network of machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipment control, remote data acquisition, environmental monitoring, and packaging machines control, etc. CAN-2055C module follows the CiA-301 version 4.02 and CiA-401 version 2.1. You can access the digital I/O status and set the configuration by using standard CANopen protocol. CAN-2055C has passed the validation of the CiA CANopen conformance test tool. Therefore, you can use it with standard CANopen master easily by applying the EDS file. CAN-2055C has 8 isolated sink/source input channels and 8 isolated source output channesl, It can be used to various applications, such as PNP, NPN, TTL, relay contact and so forth. By owing to the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements. For more information about the CANopen master interfaces and other CANopen products, please refer to the following web site.

Specification

CPU Module
Watchdog Timer Hardware watchdog



LED Indicators
Status 3 LEDs to PWR, RUN and ERR



Digital Input
Channels 8 (Sink/Source)
Wet Contact, ON Voltage Level +3.5 ~ +30 VDC
Wet Contact, OFF Voltage Level +1 VDC Max
Input Impedance 3kΩ, 0.3W



Digital Output
Channels 8 (Source)
Type Open emitter
Load Voltage +10 ~ +30 VDC
Max. Load Current 700mA, each channel
Intra-module Isolation 3750 Vrms



CANopen
Transceiver NXP TJA1042
Baud Rate 10 k ~ 1 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Built-in 120Ω
Porotocol CiA 301 v4.02, CiA 401 v2.1
Node ID 1 ~ 99
No. of PDOs 10 RxPDO , 10 TxPDO
PDO Mode Event-triggered, remotely-requested, Cyclic and acyclic SYNC
Error Control Node Guarding protocol / Heartbeat Producer
NMT Slave
EMCY Message Yes



Power
Consumption 1.7 W



Mechanical
Dimensions (mm) 33 x 99 x 78 ( W x L x H )
Installation DIN-Rail



Environmental
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

CAN-2055C     CR  CANopen Slave Module of 8-channel DI and DO (RoHS)
