Module CANopen Slave 16 kênh DO ICP DAS CAN-2057C CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

CANopen Slave Module of 16-channel Isolated (Sink, NPN) DO

Gọi +84 904251826 để được trợ giúp

Module CANopen Slave 16 kênh DO ICP DAS CAN-2057C CR

Features

  • NMT Slave
  • Providing I/O Pair-connection Function
  • Provide default EDS file
  • Passed the validation of CiA CANopen Conformance Test tool
  • Support Polarity Output Setting and Save
  • Support Error Value Output Setting and Save
  • Support Dynamic PDO
  • Support Application: Drive Relay, Resistance Load
  • ESD Protection 4 kV Contact for each channel

Introduction

CAN-2057C module follows the DS-301 version 4.02 and DSP-401 version 2.1. You can access the digital input status and set the configuration by using standard CANopen protocol. CAN-2057C has passed the validation of the CiA CANopen Conformance Test tool. Therefore, you can use it with standard CANopen master easily by applying the EDS file. CAN-2057C has 16-channel isolated open-collector output. It can be used to various applications, such as drive relay, light control, resistance load and so forth. By owing to the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements. For more information about the CANopen master interfaces and other CANopen products, please refer to the following web site.

Application

• Alarm detector
• Switch detection

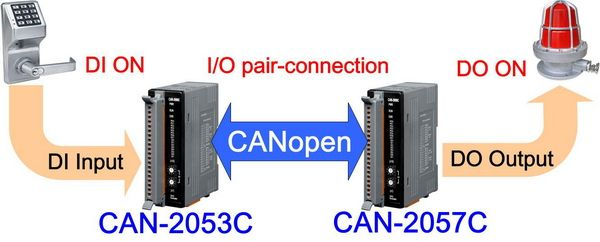

• I/O pair-connection

Specification

CPU Module
Watchdog Timer Hardware watchdog



LED Indicators
Status 3 LEDs to PWR, RUN and ERR



Digital Output
Channels 16 (Sink)
Type Open-collector
Load Voltage +5 ~ +30 VDC
Max. Load Current 100 mA per channel
Intra-module Isolation 3750 Vrms



CANopen
Transceiver NXP TJA1042
Baud Rate 10 k ~ 1 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Built-in 120Ω
Porotocol CiA 301 v4.02, CiA 401 v2.1
Node ID 1 ~ 99
No. of PDOs 10 RxPDO , 10 TxPDO
PDO Mode Event Triggered, Remotely requested, Cyclic and acyclic SYNC
Error Control Node Guarding protocol / Heartbeat Producer
NMT Slave
EMCY Message Yes



Power
Consumption 1.5 W



Mechanical
Dimensions (mm) 33 x 99 x 78 ( W x L x H )
Installation DIN-Rail



Environmental
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

CAN-2057C     CR  CANopen Slave Module of 16-channel Isolated Open-collector Digital Output (RoHS)
