Module CANopen Slave 8 kênh HSC + 8 kênh đầu ra PWM ICP DAS CAN-2088C CR

Features

Hardware-controlled PWM output
PWM output frequency: 0.2 Hz ~ 500 kHz with 0.1%~99.9% duty cycle

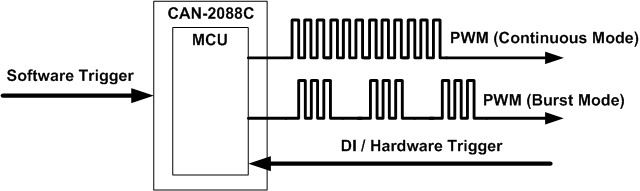

PWM Output Modes: software trigger / hardware trigger
Trigger each PWM output individually or all PWM outputs synchronously
Support Burst output mode and Continue output mode
Provide 32-bit 500 kHz high-speed counter for each DI channel
Pass the validation of CANopen conformance test
Provide EDS file for CANopen master interface

Introduction

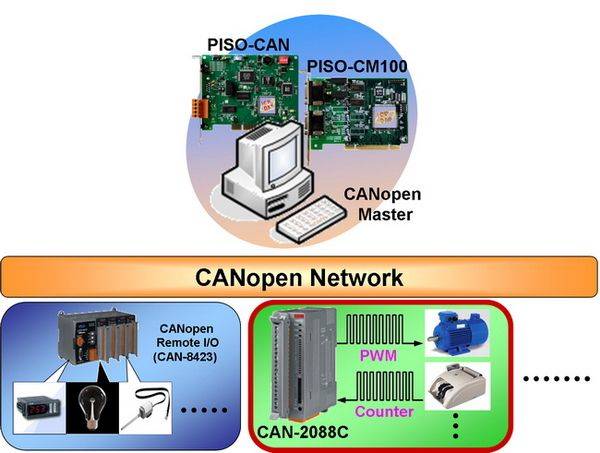

PWM (Pulse width modulation) is a powerful technique for controlling analog circuits. It uses digital outputs to generate a waveform with variant duty cycle and frequency to control analog circuits. CAN-2088C is a PWM slave module of CANopen protocol. It has 8 PWM output channels and 8 high speed counter channels. It can be used to develop powerful and cost effective analog control system, please refer to the following web site.

Specification

CPU Module
Watchdog Timer	Hardware watchdog

LED Indicators
Status	3 LEDs to PWR, RUN and ERR

Digital Input
Channels	8 (Sink)
Wet Contact, ON Voltage Level	+5.5 ~ +30 VDC
Wet Contact, OFF Voltage Level	<3.5 VDC
Input Impedance	2.2 kΩ, 0.5 W

PWM
Channels	8 (Source)
Output Max. Load Current	1 mA
Frequency	0.2 Hz ~ 500 kHz (non-continuous)
Duty Cycle	0.1 ~ 99.9 %
Mode	Burst mode, Continuous mode
Trigger Start	Hardware (Start and Stop) or Software (Start and Stop)

CANopen
Transceiver	NXP TJA1042
Baud Rate	10 k ~ 1 M
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor	Built-in 120Ω
Porotocol	CiA 301 v4.02, CiA 401 v2.1
Node ID	1 ~ 99
No. of PDOs	10 RxPDO , 10 TxPDO
PDO Mode	Event Triggered, Remotely requested, Cyclic and acyclic SYNC
Error Control	Node Guarding protocol / Heartbeat Producer
NMT	Slave
EMCY Message	Yes
