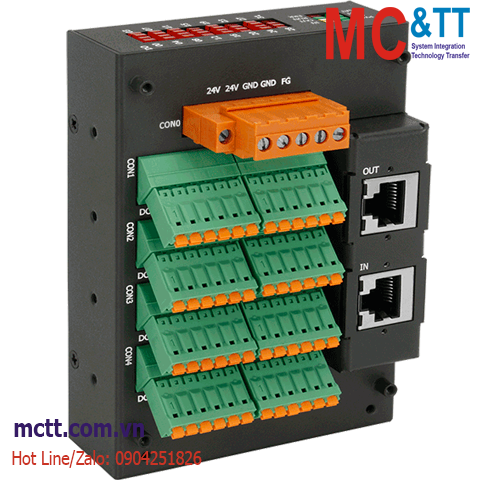

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule EtherCAT Slave 32 kênh đầu ra số DO ICP DAS EC2-C32 CR
Features
Introduction
The EC2-C32 is an industrial slave I/O module built in 32 digital outputs. It is equipped with the EtherCAT* protocol and installed by daisy chain connection that provides a more scalable system with fewer wires. Users can obtain the input and output status not only via the process data but also from its LED indicators. The EC2-C32 has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.
Applications
Specifications
| EFT (IEC 61000-4-4) | Signal: 1 KV Class A; Power: 1 KV Class A |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ± 1 kV Class A |
| Digital Output | |
|---|---|
| Channels | 32 |
| Type | Open Collector (Sink),with internal flywheel diode |
| Load Voltage | 40 VDC Max. |
| Load Current | 350 mA/Channe (Sink) @ 25℃ 250 mAChannel (Sink) @ 60℃ |
| Isolation | 3000 VDC |
| EtherCAT | |
|---|---|
| Ports | EtherCAT, 2 X RJ45 |
| Node ID | Up to 256 |
| Distance Between Stations | Max. 100m (100Base-Tx) |
| Data Transfer Medium | Ethernet/EtherCAT cable(min. CAT5), shielded |
| Cycle Time | 100 us |
| Distributed Clocks | Yes |
| Power | |
|---|---|
| Input Range | +24 VDC |
| Consumption | 3 W |
| Mechanical | |
|---|---|
| Casing | Metal with IP40 |
| Dimensions (mm) | 83 x 112 x 65 (W x L x D) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| EC2-C32 CR | EtherCAT Slave I/O Module with Isolated 32-channel Digital Outputs (RoHS) |
