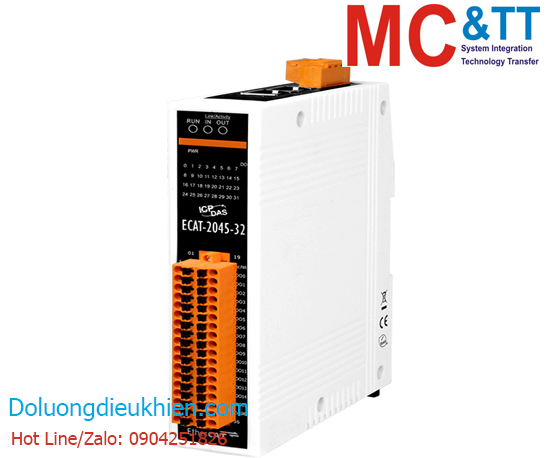

Module EtherCAT Slave 32 kênh đầu ra số DO ICP DAS ECAT-2045-32 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

EtherCAT Slave I/O Module with Isolated 32-ch DO

THÔNG TIN SẢN PHẨM

Tính năng

On the fly processing: EtherCAT
Powerful MCU handles efficient network traffic
2 x RJ-45 bus interface
Distance between Stations up to 100 m (100BASE-TX)
Support daisy chain connection
EtherCAT conformance test tool verified
Removable terminal block connector
LED indicators for the output status
Built-In 32 digital outputs
RoHS compliant
ESD Protection 4 KV Contact for each channel

Giới thiệu

The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment. The ECAT-2045-32 is built in isolated 32 digital outputs. Users can obtain the input and output status not only via the process data but also from its LED indicators. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.

	ECAT-2045-32	ECAT-2045K-32
Digital output channels	32 Sink	32 Sink
State machine change:OP mode ->any mode	Clear all DO output value	Keep output values
Disconnected	Clear all DO output value	Keep output values

Ứng dụng

Semiconductor Tools
Metal Forming
Packaging
Injection Molding
Assembly Systems
Printing Machines
Robotics

Thông số kỹ thuật

EMS Protection
EFT (IEC 61000-4-4)	Signal: ±1 kV Class A; Power: ±1 kV Class A
ESD (IEC 61000-4-2)	± 4 kV Contact for Each Channel
Surge (IEC 61000-4-5)	± 1 kV Class A

Digital Output
Channels	32
Type	Open Collector (Sink)
Load Voltage	+3.5 VDC ~ +50 VDC
Load Current	500 mA/Channel
Isolation	3750 Vrms

EtherCAT
Ports	2 x RJ-45
Distance Between Stations	100 m Max. (100Base-TX)
Data Transfer Medium	Ethernet/EtherCAT cable (Min. CAT5), shielded
Cycle Time	1 ms
Distributed Clocks	Yes

Power
Input Range	+10 VDC ~ +30 VDC
Consumption	4 W Max.

Mechanical
Casing	Plastic
Dimensions (mm)	31 x 157 x 126 (W x L x H)
Installation	DIN-Rail

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Thông tin mua hàng

ECAT-2045-32 CR

EtherCAT Slave I/O Module with Isolated 32-ch DO (Sink, NPN) (RoHS)

Module EtherCAT Slave 32 kênh đầu ra số DO ICP DAS ECAT-2045-32 CR
