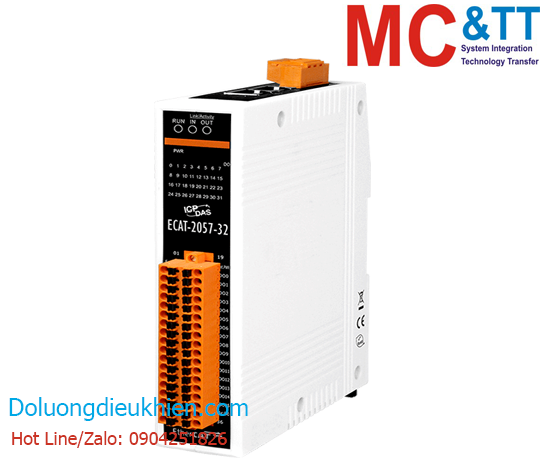

Module EtherCAT Slave 32 kênh đầu ra số cách ly DO ICP DAS ECAT-2057-32 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

EtherCAT Slave I/O Module with Isolated 32-ch DO

THÔNG TIN SẢN PHẨM

Tính năng

• On the fly processing: EtherCAT
• Powerful MCU handles efficient network traffic
• 2 x RJ-45 bus interface
• Distance between Stations up to 100 m (100BASE-TX)
• Support daisy chain connection
• EtherCAT conformance test tool verified
• Removable terminal block connector
• LED indicators for the output status
• Built-In 32 digital outputs
• RoHS compliant
• ESD Protection 4 KV Contact for each channel

Giới thiệu

The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment. The ECAT-2057-32 is built in isolated 32 digital outputs. Users can obtain the input and output status not only via the process data but also from its LED indicators. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.

Ứng dụng

• Semiconductor Tools
• Metal Forming
• Packaging
• Injection Molding
• Assembly Systems
• Printing Machines
• Robotics

Thông số kỹ thuật

EMS Protection
EFT (IEC 61000-4-4)	Signal: ±1 kV Class A; Power: ±1 kV Class A
ESD (IEC 61000-4-2)	± 4 kV Contact for Each Channel
Surge (IEC 61000-4-5)	± 1 kV Class A

Digital Output
Channels	32
Type	Open Emitter (Source)
Load Voltage	+10 VDC ~ +40 VDC
Load Current	500 mA/Channel
Isolation	2500 VDC

EtherCAT
Ports	2 x RJ-45
Distance Between Stations	100 m Max. (100Base-TX)
Data Transfer Medium	Ethernet/EtherCAT cable (Min. CAT5), shielded
Cycle Time	200 us
Distributed Clocks	Yes

Power
Input Range	+10 VDC ~ +30 VDC
Consumption	1.5 W Max.

Mechanical
Casing	Plastic
Dimensions (mm)	90 x 33 x 110 (W x L x H, without connectors)
Installation	DIN-Rail

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Thông tin mua hàng

ECAT-2057-32 CR

EtherCAT Slave I/O Module with Isolated 32-ch DO (Source, PNP) (RoHS)

Module EtherCAT Slave 32 kênh đầu ra số cách ly DO ICP DAS ECAT-2057-32 CR
