Điểm truy cập không dây công nghiệp Dual-band 3Onedata IAP2300R-4A25-2GT-P12_48

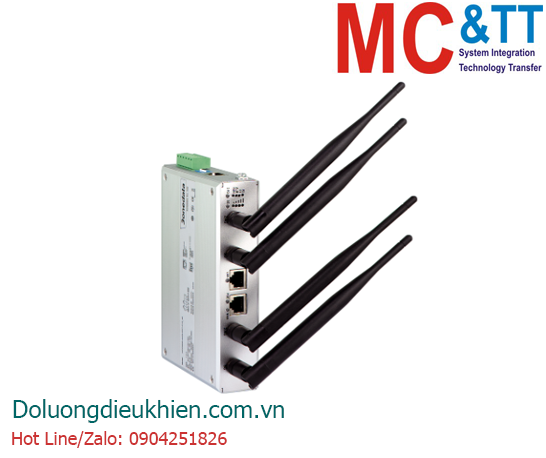

IAP2300R-4A25-2GT-P12_48 is industrial roaming wireless AP. This product supports 2 Gigabit copper ports and 4 antenna interfaces, etc. It adopts wall or rail mounting, which can meet the requirements of different application scenes.

This device supports four work modes, including routing, AP, network bridge and client. It supports IEEE802.11a/b/g/n/ac wireless technology, the transmission rate of which can reach 867Mbps, which can meet the requirements of quick data transmission. The device supports WEP SHARED, WPA2-PSK and other wireless encryption methods, with SSID hiding, wireless user isolation, MAC address filtering, ARP binding, DMZ setting and other security policies; supports virtual AP, that is, an AP device supports multiple SSID; supports fast roaming, that is, in the WLAN (Wireless Local Area Network) constituted by multiple AP, user can achieve fast roaming without conducting the switching operation.

The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. WAN port supports 48VDC PoE power supply input and can save power supply cost. DIP switch can realize device root and restoring factory defaults. When power supply or link has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption, wide temperature and wide pressure design, which can be widely used in the scenes demanding for wireless roaming, such as AGV cars and industrial robots in factory automation, petrochemical industry, power monitoring and so on.

Specification
