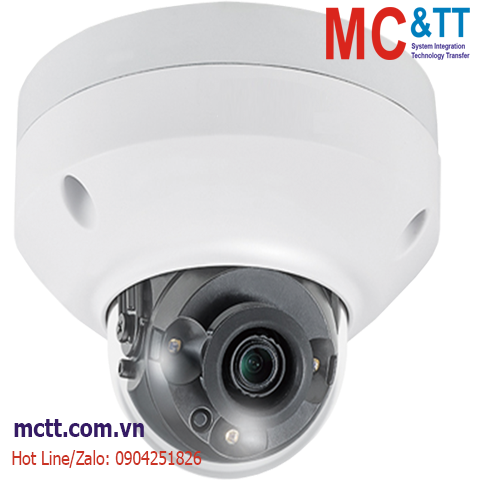

Camera IP giám sát an ninh Fixed IR Dome, 2MP, IP67 ICP DAS iCAM-MR6322 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Fixed IR Dome IP Camera, with 2MP and IP67

THÔNG TIN SẢN PHẨM

Feature

• Full HD 2 megapixel CMOS image sensor
• 1080P True H.264 AVC High Profile video compression
• H.264 and Motion JPEG multi-profile video streaming
• Smart H.264 supported
• 3D noise reduction (MCTF)
• 2D WDR function
• HDR function up to 100dB
• High-efficiency IR LED, radiant distance up to 30m
• Day & Night (IR cut removable)
• ONVIF Profile S supported
• IP67 rain and dust resistant
• Built-in 802.3af Compliant PoE

Introduction

iCAM-MR6322 is an HD 30M-Rage IR Fixed Dome IP Camera in the M features 1080p at 30 frames per second, built-in Sense up+ technology to deliver stunning video in low-light conditions, and intelligent video surveillance (IVS) functions. Utilizing intelligent image signal processing, HDR, AGC control, and 3D Noise Reduction, the combination successfully delivers the ultimate low-light image without motion blur. The support of PoE, privacy masking, white balance, as well as the minimum illumination 0.13 Lux at F2.0 can certainly satisfy multiple applications.

Application

Click to view the WISE Surveillance Solution With iCAM Camera.

Specifications

Alarm and Event
Alarm Events	Files uploaded via HTTP, SMTP, FTP
Alarm Triggers	Motion Detection, Tampering Detection, Advanced Motion Detection

Camera
Aperture	F2.0
Field of View	90°
Image Sensor	1/2.7”, CMOS
Lens	4 mm
Max. Resolution	1920 x 1080, 2MP

Video
Streams	4 configurable streams in H.264 and Motion JPEG, configurable frame rate and bandwidth

Ethernet
Ports	1 x RJ-45, 10/100 Mbps Base-T
PoE	Yes
Protocol	IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, MQTT, QoS, SNMP, SNMP Trap, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profi le S, SDDP, Bonjour, 802.1x, SSL/TLS
ONVIF	Profile S

Power
Consumption	DC12V, 4.5W PoE, 5.6W
Powered from PoE	Yes

Mechanical
Casing	Metal
Dimensions (mm)	Ø110 × 89(H) mm
Ingress Protection Rating	IP67

Environment
Operating Temperature	-40°C – +50°C (-40°F – 122°F)
Humidity	10% ~ 90%

Download

Datasheet

Documents

Ordering Information

iCAM-MR6322 CR

Fixed IR Dome IP Camera, with 2MP and IP67 Resistant (RoHS)
