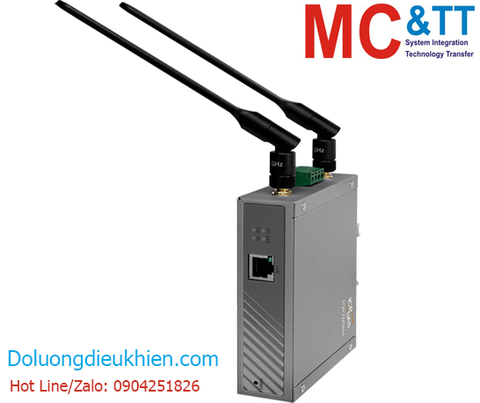

Bộ chuyển đổi Ethernet/UART sang Wi-Fi ICP DAS IOP760AM CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

Ethernet/UART to Wi-Fi Converter (with category A plug type) (RoHS)

Gọi +84 904251826 để được trợ giúp

Bộ chuyển đổi Ethernet/UART sang Wi-Fi ICP DAS IOP760AM CR

Tính năng

  • Wi‐Fi Uplink or Ethernet WAN Connection.
  • One RS-232/485 for Modbus RTU Connection.
  • IEEE 802.11a/b/g/n/ac Wi-Fi Compliance.
  • One LAN Port for Linking Local Ethernet Devices.
  • One DI/One DO For Device Triggering or Event Reporting
  • Designed by Solid And Easy‐to‐Mount Metal Body

Giới thiệu

IOP760AM is a wireless converter . The data can be exchanged via the three different interfaces Wi-Fi, Ethernet and UART. The Wi-Fi interface supports IEEE 802.11 b/g/n/ac standard. Users can select IEEE 802.11 b/g/n for 2.4GHz connections or select IEEE 802.11 ac for 5GHz connections. When the Wi-Fi strength is lower than the threshold setting, IOP760AM can connect to another stronger one via the roaming function. The Ethernet interface can be connected by the Ethernet switch. All the Ethernet devices exchange data via the Ethernet switch and IOP760AM. In the UART communication, data can be sent directly or formed by Modbus protocol.

Application

Thông số kỹ thuật

Wi-Fi
Transmission Distance (LoS) 50 meters (LOS)
Standard IEEE 802.11a/b/g/n/ac
Encryption WEP / WPA / WPA2 / WPA-PSK / WPA2-PSK
Data Transmission Rate 2.4 GHz:300 Mbps(MIMO 2T2R)
5 GHz:866 Mbps(MIMO 2T2R)
Client Max. 10 Clients (AP mode)
Channels 2.4 GHz:1~11
5 GHz:36/40/44/48;149/153/157/161/165
Antenna 5 dBi 2.4/5 GHz
Digital Input
Channels 1
Type Wet Contact
ON Voltage Level 3.3 ~ 30 VDC
OFF Voltage Level 3 VDC Max.
Relay Output
Channels 1
Contact Rating 30V / 1A
COM Ports
Ports 1 x RJ10( RS-232/RS-485)
Baud Rate RS-232: 9600 / 19200 / 38400 / 57600 / 115200
RS-485: 9600 / 19200 / 38400 / 57600 / 115200 / 230400 / 460800
Data Bit 43684
Stop Bit 43467
Ethernet
Ports 1* RJ45 FE
Power
Input Range +9~ 48 VDC
Mechanical
Dimensions (mm) 31 x 99 x 131 (W x L x H)(without Mounting kit)
31 x 108 x 131 (W x L x H)(with DIN Rail kit)
167 x 99 x 39 (W x L x H)(with Bracket kit)
Installation DIN-Rail
Bracket
Environment
Operating Temperature -20 ℃ ~ 60 ℃
Storage Temperature -40 ℃ ~ 85 ℃
Humidity 10% ~ 95% (non-condensing)


Download

Data Sheet

Documents
