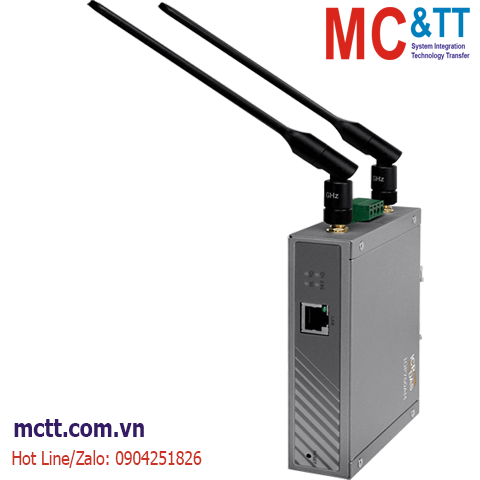

Bộ chuyển đổi Ethernet/UART sang Wi-Fi ICP DAS IOP760AM-EU CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Ethernet/UART to Wi-Fi Converter (with category E plug type) (RoHS)

THÔNG TIN SẢN PHẨM

Features

Wi‐Fi Uplink or Ethernet WAN Connection.
One RS-232/485 for Modbus RTU Connection.
IEEE 802.11a/b/g/n/ac Wi-Fi Compliance.
One LAN Port for Linking Local Ethernet Devices.
One DI/One DO For Device Triggering or Event Reporting
Designed by Solid And Easy‐to‐Mount Metal Body

Introduction

IOP760AM is a wireless converter . The data can be exchanged via the three different interfaces Wi-Fi, Ethernet and UART. The Wi-Fi interface supports IEEE 802.11 b/g/n/ac standard. Users can select IEEE 802.11 b/g/n for 2.4GHz connections or select IEEE 802.11 ac for 5GHz connections. When the Wi-Fi strength is lower than the threshold setting, IOP760AM can connect to another stronger one via the roaming function. The Ethernet interface can be connected by the Ethernet switch. All the Ethernet devices exchange data via the Ethernet switch and IOP760AM. In the UART communication, data can be sent directly or formed by Modbus protocol.

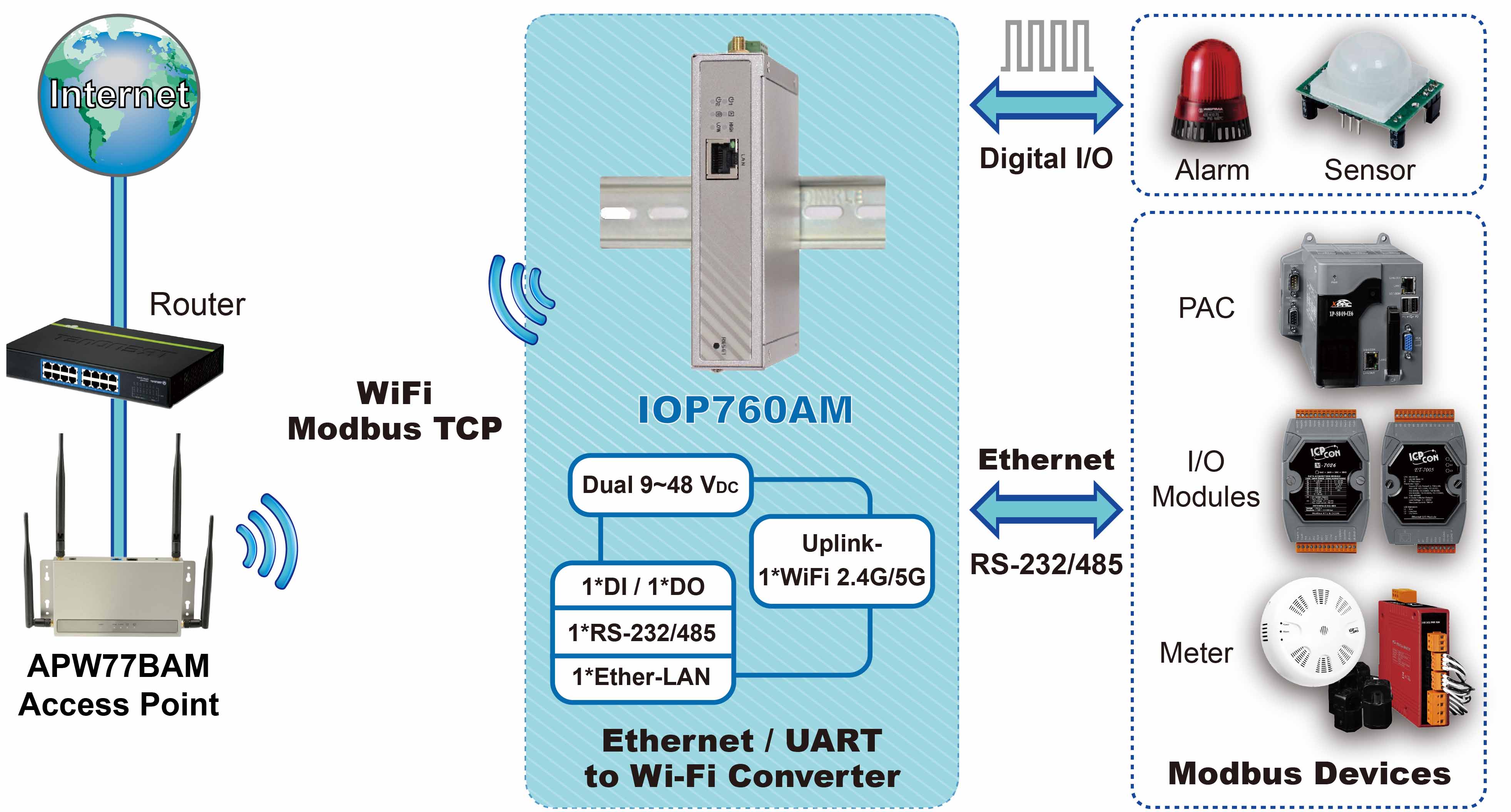

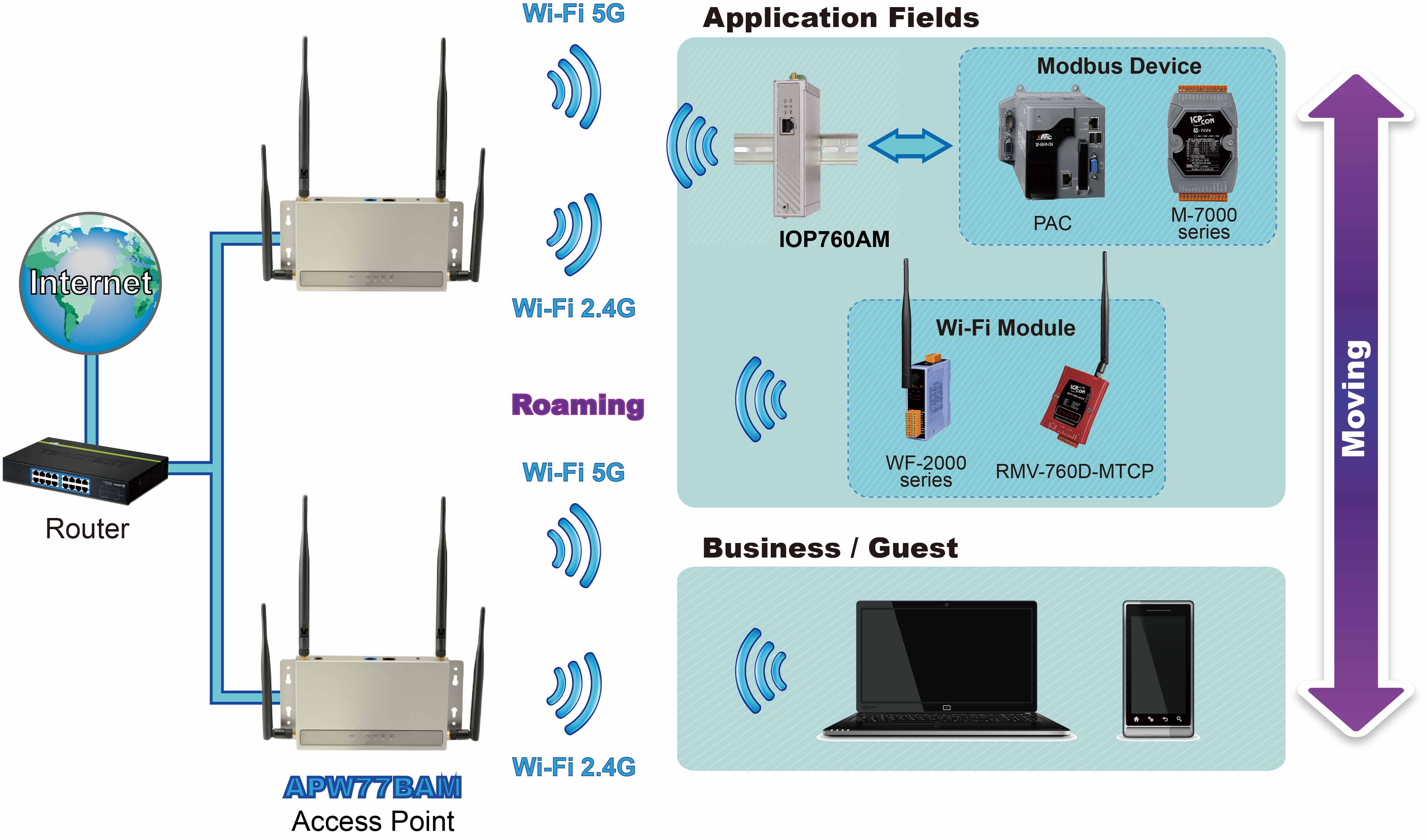

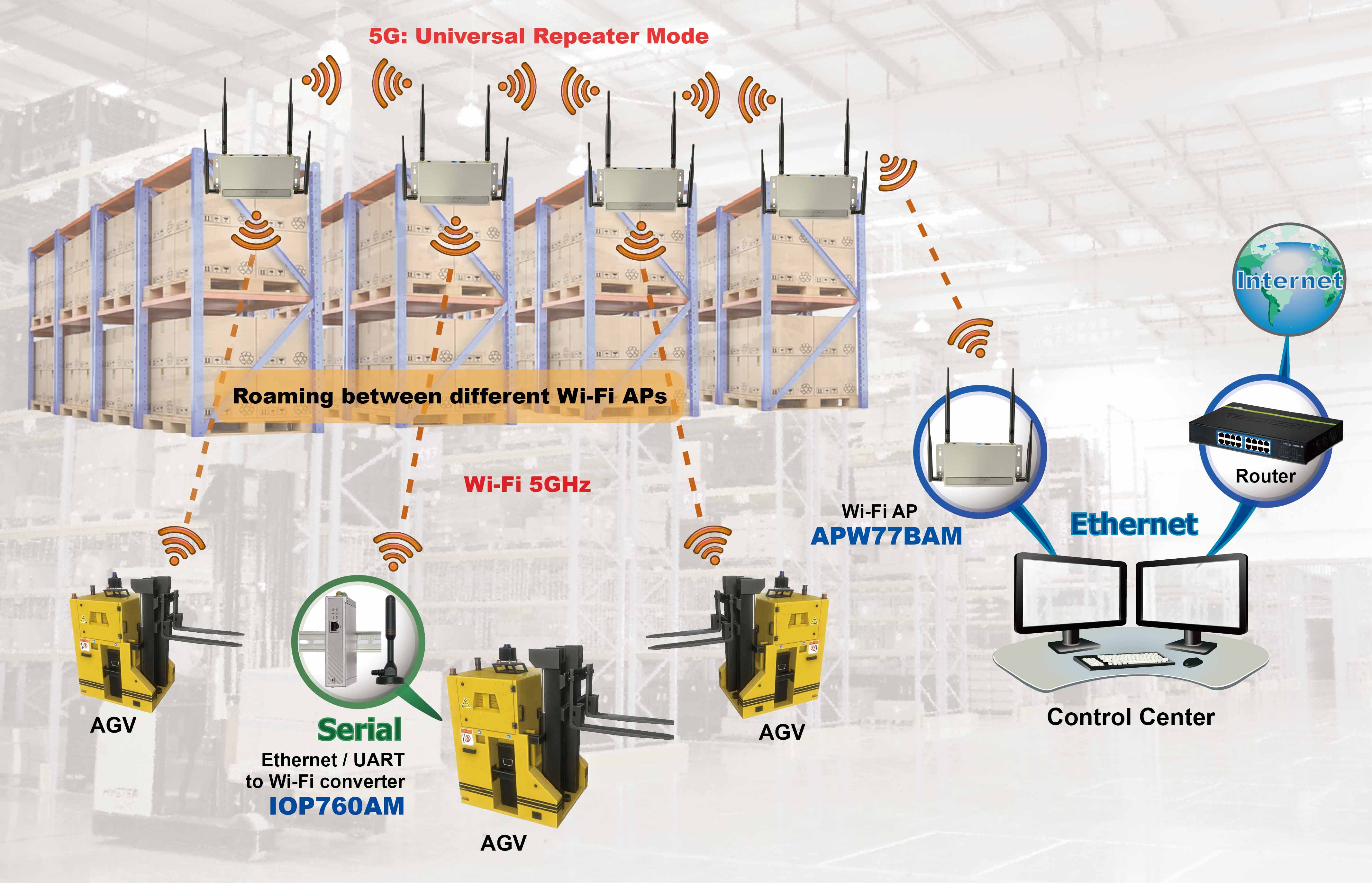

Application

Specification

Wi-Fi
Transmission Range	50 meters (LOS)
Standards	IEEE 802.11a/b/g/n/ac
Encryption	WEP / WPA / WPA2 / WPA-PSK / WPA2-PSK
Data Rate	2.4 GHz:300 Mbps(MIMO 2T2R) 5 GHz:866 Mbps(MIMO 2T2R)
Client	Max. 10 Clients (AP mode)
Channels	2.4 GHz:1~11 5 GHz:36/40/44/48;149/153/157/161/165
Antenna	5 dBi 2.4/5 GHz

Digital Input
Channels	1
Digital Logic Level	Logic 0”: 0~3V, “Logic 1”: 3.3V~30V

Relay Output
Channels	1
Contact Rating	30V / 1A

COM Ports
Ports	1 x RJ10( RS-232/RS-485)
Baud Rate	RS-232: 9600 / 19200 / 38400 / 57600 / 115200 RS-485: 9600 / 19200 / 38400 / 57600 / 115200 / 230400 / 460800
Data Bit	43684
Stop Bit	43467

Ethernet
Ports	1* RJ45 FE

Power
Input Range	+9~ 48 VDC

Mechanical
Dimensions (mm)	31 x 99 x 131 (W x L x H)(without Mounting kit) 31 x 108 x 131 (W x L x H)(with DIN Rail kit) 167 x 99 x 39 (W x L x H)(with Bracket kit)
Installation	DIN-Rail Bracket

Environmental
Operating Temperature	-20 ℃ ~ 60 ℃
Storage Temperature	-40 ℃ ~ 85 ℃
Humidity	10% ~ 95% (non-condensing)

Download

Data Sheet

Documents

Ordering information

IOP760AM-EU CR

Ethernet/UART to Wi-Fi Converter (with category E plug type) (RoHS)
