Card PCI 128 kênh vào/ra số DI/DO ICP DAS PCI-D128SU CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

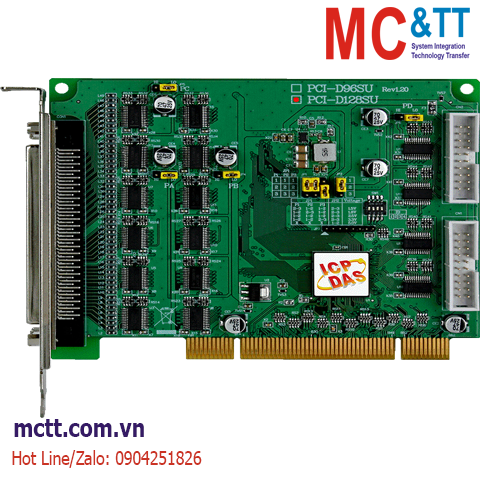

Universal PCI, 128-ch, 32-bit Digital I/O Board

Gọi +84 904251826 để được trợ giúp

Card PCI 128 kênh vào/ra số DI/DO ICP DAS PCI-D128SU CR

Features

  • Support the +3.3/+5 V PCI bus
  • 128 Channels of Digital I/O
  • Four 32-bit Bi-direction I/O Ports
  • Digital Pattern Generator
  • Bi-direction Programmable I/O Ports under Software Control
  • Pattern-matching and Change State Interrupt Monitoring
  • DIO Operating Voltage: +1.8 V, +2.5 V, +3.3 V, +5 V
  • Pull-high/Pull-low Jumpers for DI Channels
  • Supports Card ID (SMD Switch)
  • Supports a High-density SCSI II 100-pin Connector

Introduction

The PCI-D128SU supports 3.3 V/5 V PCI bus. These cards provide 128 Digital I/O lines that consist of four 32-bit bi-directional ports for use in a variety of Digital I/O applications. Each channel could be setting for DI or Output. They provide a variety of operating voltage (+1.8 V, +2.5 V, +3.3 V and +5 V) for customers need.

The PCI-D128SU cards include an onboard Card ID switch that enables the board to be recognized via software if two or more boards are installed in the same computer. The pull-high/low jumpers allow the DI status to be predefined instead of remaining floating if the DI channels are disconnected or interrupted. The PCI-D96SU provides a single high-density connector that reduces the amount of installation space required for the card in the computer.

These cards support various OS versions, such as DOS and 32/64-bit Windows 10/8/7/2008/2003/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.

Accessories

Applications

  • DOS Lib and TC/BC/MSC sample program (with source codes)
  • DLL and OCX SDK for Windows 95/98/NT/2K.
  • DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
  • VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
  • LabVIEW toolkit for Windows.
  • Driver for Linux and DasyLab.

Click to view the Introduction of https://mctt.vn/pci-icp-das

Specifications

Hardware
Card ID Yes (4-bit)
Connector Female SCSI II 100-pin x 1
20-pin Box Header x 2
Digital Input
Channels 128 (Bi-Direction)
Type 1.8 V/TTL, 2.5 V/TTL , 3.3 V/TTL, 5 V/TTL
ON Voltage Level 1.8V/TTL(Logic 1: 1.2 V Min.)
2.5V/TTL(Logic 1: 1.7 V Min.)
3.3V/TTL(Logic 1: 2.0 V Min.)
5V/TTL(Logic 1: 3.5 V Min.)
OFF Voltage Level 1.8V/TTL(Logic 0: 0.65 V Max.)
2.5V/TTL(Logic 0: 0.7 V Max.)
3.3V/TTL(Logic 0: 0.8 V Max.)
5V/TTL(Logic 0: 1.5 V Max.)
Response Speed 1 MHz (Typical)
Trigger Mode Software (Pattern Match, Change of Status)
Data Transfer Polling, Interrupt
Digital Output
Channels 128 (Bi-Direction)
Type 1.8 V/TTL, 2.5 V/TTL , 3.3 V/TTL, 5 V/TTL
Sink/Source (NPN/PNP) Sink: 6 mA @ 0.33 V
Source: 6 mA @ 4.77 V
Operation Mode Static update, Waveform generation
Load Voltage 1.8V/TTL(Logic 0: 0.65 V Max. ,Logic 1: 1.2 V Min.)
2.5V/TTL(Logic 0: 0.7 V Max. ,Logic 1: 1.7 V Min.)
3.3V/TTL(Logic 0: 0.8 V Max. ,Logic 1: 2.0 V Min.)
5V/TTL(Logic 0: 1.5 V Max. ,Logic 1: 3.5 V Min.)
Response Speed 1 MHz (Typical)
PC Bus
Type 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 32-bit
Power
Consumption 760 mA @ +5 V
Mechanical
Dimensions (mm) 105 x 129 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PCI-D128SU     CR  Universal PCI, 128-ch, 32-bit Digital I/O Board (RoHS)
