Card PCI 64 kênh vào/ra số DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS PCI-D64HU CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Universal PCI, 40 MB/s, 64-ch Digital I/O Board

THÔNG TIN SẢN PHẨM

Features

Support the +3.3/+5 V PCI bus
32 channels Digital Input
32 channels Digital Output
2 channels bus mastering scatter/gather DMA
Data transfer rate up to 40 MB/s for each channel
Support 4 data transfer modes: ‣Direct program control mode ‣Internal timer pacer mode ‣External clock mode (DI only) ‣Handshaking mode
On board 1 k/2 k DWORD FIFO for DI/DO respectively
DO FIFO support ring buffer mode
No bus loading in repetitive pattern generation application
Programmable input digital filter for all input signals including handshaking and trigger signals

Introduction

PCI-D64HU is a high-speed digital I/O card consisting of 32 digital input channels and 32 digital output channels. High-performance designs make this card perfect for high-speed data transfer and pattern generation applications.

The PCI-D64HU performs high-speed data transfer by bus-mastering DMA via 32-bit PCI bus. The maximum data transfer rate can be up to 40 MB per second. Several digital I/O transfer modes are supported, such as direct programmed I/O control, timer pacer control, external clock mode and handshaking mode. It's a reliable and cost-effective connection interface that works on your computer system to control high-speed peripherals.

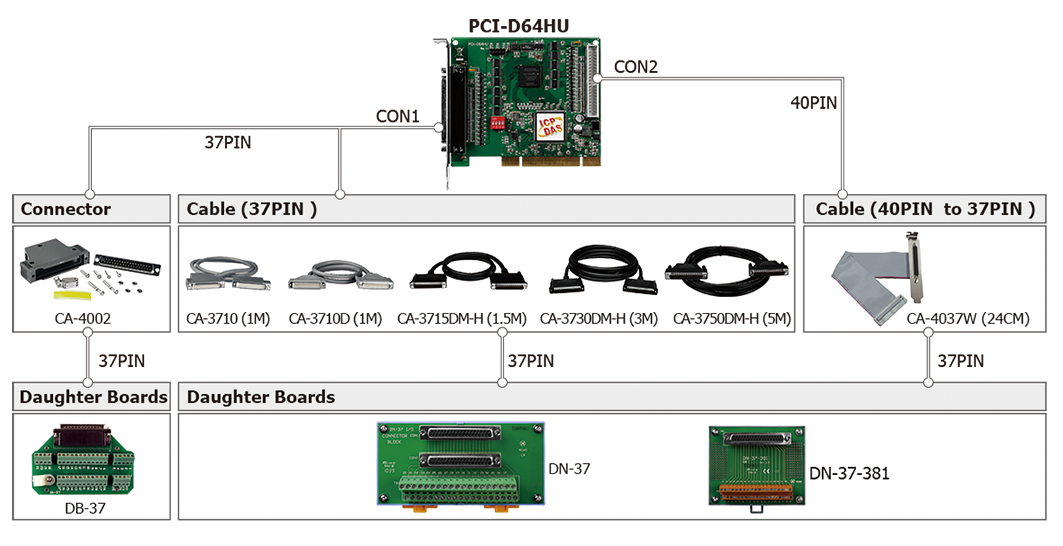

Accessories

Specification

Hardware
Card ID	Yes (4-bit)
Connector	Female DB37 x 1 40-pin Box header x 1

Digital Input
Channels	32
Type	5 V/TTL
TTL Input, ON Voltage Level	2.0 V Min.
TTL Input, OFF Voltage Level	0.8 V Max.
Response Speed	10.0 MHz (Max.)
Trigger Mode	Static Update

Digital Output
Channels	32
Type	5 V/TTL
Operation Mode	Static Update
Voltage	Logic 0: 0.55 V Max. Logic 1: 2.0 V Min.
Max. Load Current	Sink: 64 mA @ 0.55 V Source: 32 mA @ 2.0 V
Response Speed	10.0 MHz (Max.)

Timer/Counter/Frequency
Channels	3
Resolution	16-bit
Input Frequency	2.5 ~ 20 MHz

PC Bus
Type	Universal PCI, 32-bit, 33 MHz

Power
Consumption	200 mA @ +5 V typical (output no load)

Mechanical
Dimensions (mm)	105 x 120 x 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Data sheet

D ocuments

Odering information

PCI-D64HU CR

Universal PCI, 40 MB/s, 64-ch Digital I/O Board (RoHS)
One CA-4037W cable and two CA-4002 D-Sub connectors includes
