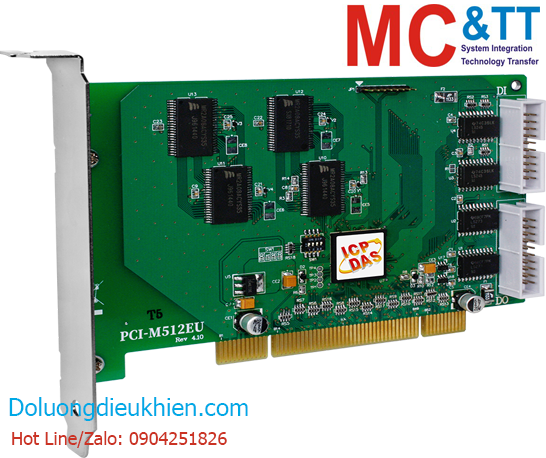

Miễn phí vận chuyển với đơn hàng từ 10.000.000đCard PCI 512 KB MRAM 16 kênh vào/ra số DIO ICP DAS PCI-M512EU CR
Features
Introduction
The PCI-M512EU is a 512 KB MRAM (Magnetoresistive Random Access Memory) board and supports both the 3.3 V and the 5 V Universal PCI bus. The PCI-M512EU provides 12 Digital Input channels and 16 Digital Output channels to connect various devices.
The MRAM is a non-volatile random-access memory technology that the fairly new type of memory. The main features of MRAM in include unlimited write endurance, read and write cycles with no delay and data retention even after power loss, so the data can be saved permanently. The PCI-M512EU is an ideal solution for improving system reliability when the power outage.
Specification
| Memory | |
|---|---|
| Type | MRAM |
| Size | 512 KB |
| Hardware | |
|---|---|
| Card ID | Yes (4-bit) |
| Connector | 20-pin box header x 2 |
| Digital Input | |
|---|---|
| Channels | 12 |
| Type | 5 V/TTL |
| TTL Input, ON Voltage Level | 2.0 V Min. |
| TTL Input, OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
|---|---|
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Max. Load Current | Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V |
| Response Speed | 1.0 MHz (Typical) |
| PC Bus | |
|---|---|
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
|---|---|
| Consumption | 580 mA @ +5 V |
| Mechanical | |
|---|---|
| Dimensions (mm) | 86 x 134 x 22 (W x L x D) |
| Environmental | |
|---|---|
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Download
Odering information
| PCI-M512EU CR | Universal PCI, 512 KB MRAM Board with Digital I/O (RoHS) |
