Universal PCI, 16-ch Isolated DI and 16-ch PhotoMOS Relay Output Board

Gọi +84 904251826 để được trợ giúp

Card PCI 16 kênh đầu vào số DI + 16 kênh đầu ra PhotoMOS Relay ICP DAS PCI-P16POR16U CR

Features

  • Support the +3.3/+5 V PCI bus
  • Selectable DC signal input filter
  • AC signal input with filter
  • LED power indicator
  • Long life and high reliability PhotoMOS Relay
  • Low leakage current when PhotoMOS Relay is OFF
  • No contact bounce, no sparking
  • No acoustical noise
  • 16 PhotoMOS Relay output channels
  • 16 Optically-isolated Digital Input channels
  • 5000 Vrms photo-isolation protection
  • Card ID Function(SMD Switch)
  • Digital Output status readback

Introduction

The PCI-P16POR16U Universal PCI card supports both 5 V and 3.3 V. These cards provide 8 or 16 optically isolated input channels and 16 PhotoMOS Relay output channels. Both the isolated DI channels and the PhotoMOS Relay channels use a short optical transmission path to transfer an electronic signal between elements of a circuit and keep them electrically isolated. The PCI-P16POR16U card provides 5000 Vrms for DI channel isolation protection, allowing the input signals to be completely floated so as to cut down ground loops, block voltage spikes, and isolate the host computer from damaging voltages. PhotoMOS Relays are used where it is necessary to control a circuit using a low-power signal (with complete electrical isolation between the control and controlled circuits), or where several circuits must be controlled by one signal. These cards can be used in various applications, such as controlling the ON/OFF state of external devices, driving external relays or small power switches, activating alarms, contact closure, sensing external voltages or switches, etc.

The PCI-P16POR16U card also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more cards in one computer.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

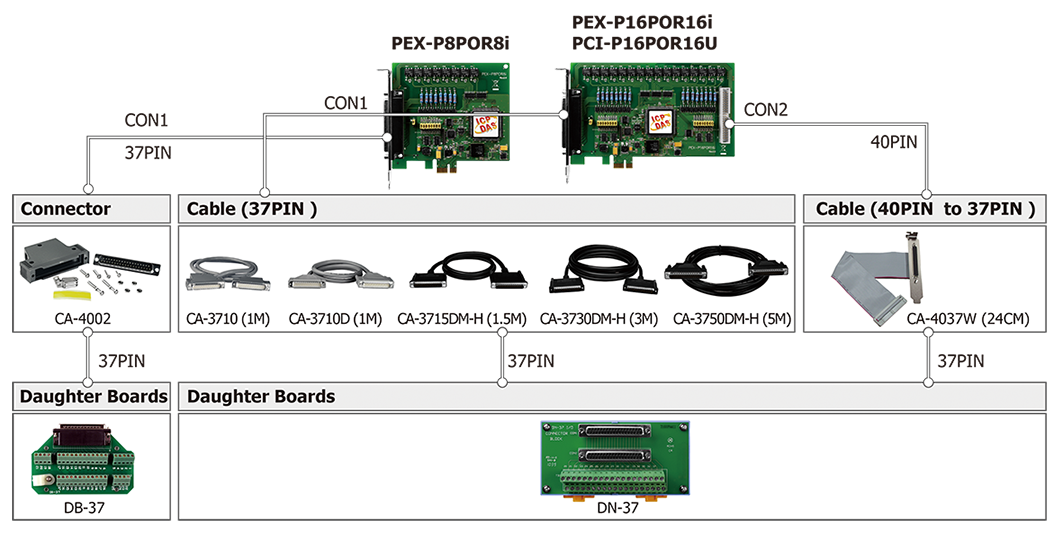

Accessories

Specification

Hardware
Card ID Yes (4-bit)
Connector Female DB37 x 1
40-pin box header x 1



Digital Input
Channels 16
Type Photocoupler (Sink and Source)
Response Speed Without Filter: 50 kHz (Typical)
With Filter: 0.455 kHz(Typical)
Trigger Mode Static Update
Wet Contact, ON Voltage Level AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz)
Wet Contact, OFF Voltage Level AC/DC 0 ~ 1 V
Isolation 2000 VDC



Relay Output
Channels 16
Type PhotoMos Relay (Form A)
Contact Rating Load Voltage: 300 V (AC peak or DC)
Load Current: 130 mA
Operate Time 0.7 ms (typical)
Release Time 0.05 ms (typical)
Electrical Endurance Long Life and No Sparking



PC Bus
Type PCI-Express x 1
Data Bus 16-bit



Power
Consumption 600 mA @ +3.3 V
300 mA @ +12 V



Mechanical
Dimensions (mm) 113 x 118 x 22 (W x L x D)



Environmental
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Data sheet

Documents

Odering information

PCI-P16POR16U     CR  Universal PCI, 16-ch Optically Isolated Digital Input and 16-ch PhotoMOS Relay Output Board (RoHS)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors.
