Card PCI 16 kênh đầu vào số DI + 16 kênh đầu ra Relay ICP DAS PCI-P16R16U CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

Universal PCI, 16-ch Isolated DI and 16-ch Relay Output Board

Gọi +84 904251826 để được trợ giúp

Card PCI 16 kênh đầu vào số DI + 16 kênh đầu ra Relay ICP DAS PCI-P16R16U CR

Features

  • Support the +3.3/+5 V PCI bus
  • 16 Relay output channels
  • 16 Optical isolated (5000 Vrms) Digital Input channels
  • Selectable DC signal input filter
  • AC Signal input with filter
  • Card ID Function(SMD Switch)

Introduction

The PCI-P16R16U universal PCI card supports 3.3 V/5 V PCI bus. These cards contain 16 photo-coupler Digital Input channels that provide 5000 Vrms isolation protection, allowing the input signals to be completely floated so as to prevent ground loops. They are also equipped with 16 Relay Output channels that can be used to control the ON/OFF state of external devices, drive external relays or small power switches, or activate alarms, etc.

The PCI-P16R16U also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more cards in one computer.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

Comparsion

Model Name PCI-P16R16U PISO-P16R16U PEX-P16R16i PEX-P8R8i
Bus Universal PCI Universal PCI PCI Express x1
Relays Form C x 8
Form A x 8
Form C x 4
Form A x 4
Digital Input 16-ch with 5000 Vrms
Isolation
16-ch with 3750 Vrms
Isolation
8-ch with 3750 Vrms
Isolation
Card ID - Yes (4-bit)
Data bus 16-bit 8-bit
Driver UniDAQ SDK/Driver, or
PCI-P16R16 SDK/Driver
UniDAQ SDK/Driver, or PISO-DIO SDK/Driver
Remarks - Suggested for new users.

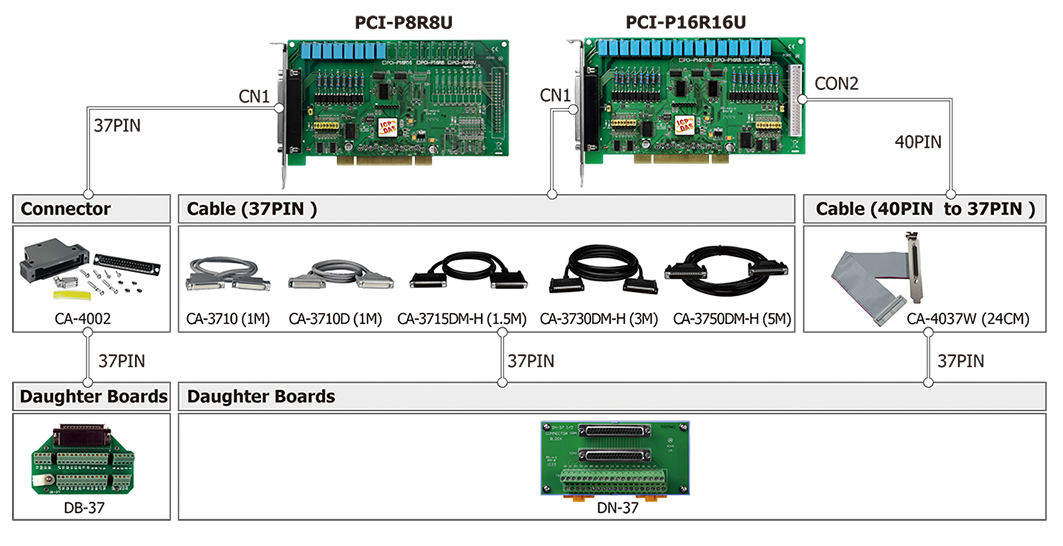

Accessories

Specification

Hardware
Card ID Yes (4-bit)
Connector Female DB37 x 1
40-pin box header x 1



Digital Input
Channels 16
Type Photocoupler (Sink and Source)
Response Speed Without Filter: 50 kHz (Typical)
With Filter: 0.455 kHz(Typical)
Trigger Mode Static Update
Wet Contact, ON Voltage Level AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz)
Wet Contact, OFF Voltage Level AC/DC 0 ~ 1 V
Isolation 5000 Vrms



Relay Output
Channels 16
Type 8 SPDT ,8 SPST
Contact Rating AC: 120 V @ 0.5 A
DC: 24 V @ 1 A
Operate Time 5 ms (Typical)
Release Time 10 ms (Typical)
Electrical Endurance 100,000 ops.
Mechanical Endurance 5,000,000 ops.



PC Bus
Type 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 16-bit



Power
Consumption 800 mA @ +5 V



Mechanical
Dimensions (mm) 105 x 183 x 22 (W x L x D)



Environmental
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Data sheet

Documents

Odering information

PCI-P16R16U     CR  Universal PCI, 16-ch isolated digital input and 16-ch Relay output (RoHS)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors.
