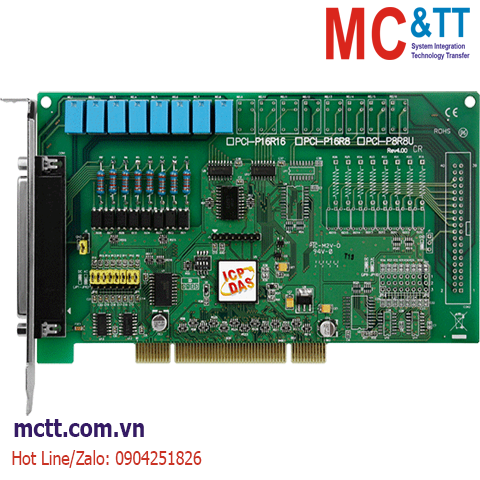

Card PCI 8 kênh đầu vào số DI + 8 kênh đầu ra Relay ICP DAS PCI-P8R8U CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Universal PCI, 8-ch Isolated DI and 8-ch Relay Output Board

THÔNG TIN SẢN PHẨM

Features

Support the +3.3/+5 V PCI bus
8 Relay output channels
8 Optical isolated (5000 Vrms) Digital Input channels
Selectable DC signal input filter
AC Signal input with filter
Card ID Function(SMD Switch)

Introduction

The PCI-P8R8U universal PCI card supports 3.3 V/5 V PCI bus. These cards contain 8 photo-coupler Digital Input channels that provide 5000 Vrms isolation protection, allowing the input signals to be completely floated so as to prevent ground loops. They are also equipped with 8 Relay Output channels that can be used to control the ON/OFF state of external devices, drive external relays or small power switches, or activate alarms, etc.

The PCI-P8R8U also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more cards in one computer.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

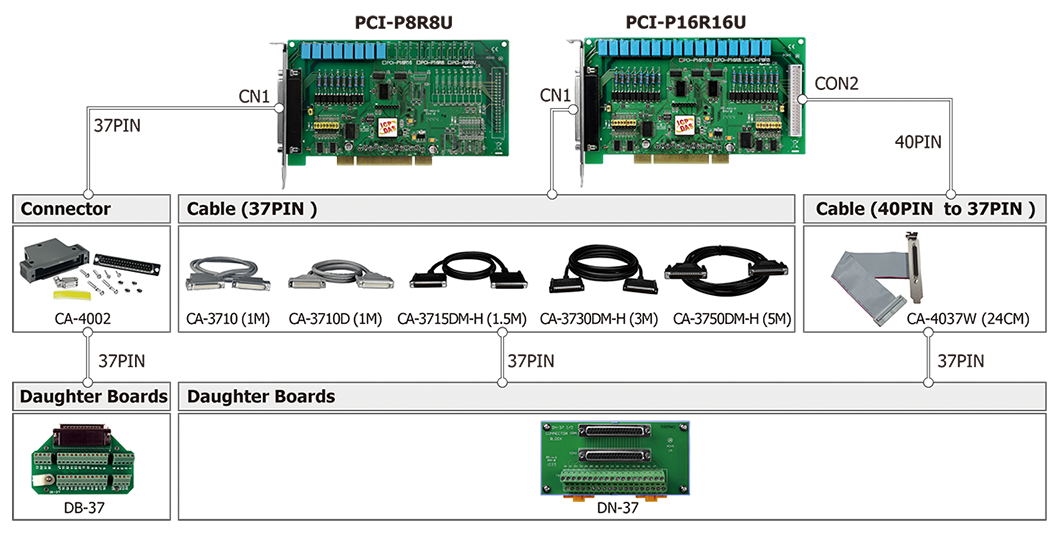

Accessories

Specification

Hardware
Card ID	Yes (4-bit)
Connector	Female DB37 x 1

Digital Input
Channels	8
Type	Photocoupler (Sink and Source)
Response Speed	Without Filter: 50 kHz (Typical) With Filter: 0.455 kHz(Typical)
Trigger Mode	Static Update
Wet Contact, ON Voltage Level	AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz)
Wet Contact, OFF Voltage Level	AC/DC 0 ~ 1 V
Isolation	5000 Vrms

Relay Output
Channels	8
Type	4 SPDT ,4 SPST
Contact Rating	AC: 120 V @ 0.5 A DC: 24 V @ 1 A
Operate Time	5 ms (Typical)
Release Time	10 ms (Typical)
Electrical Endurance	100,000 ops.
Mechanical Endurance	5,000,000 ops.

PC Bus
Type	3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus	16-bit

Power
Consumption	500 mA @ +5 V

Mechanical
Dimensions (mm)	105 x 183 x 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Data sheet

D ocuments

Odering information

PCI-P8R8U CR

Universal PCI, 8-ch Optically Isolated Digital Input and 8-ch Relay Output Board (RoHS)
Includes one CA-4002 D-Sub connector
