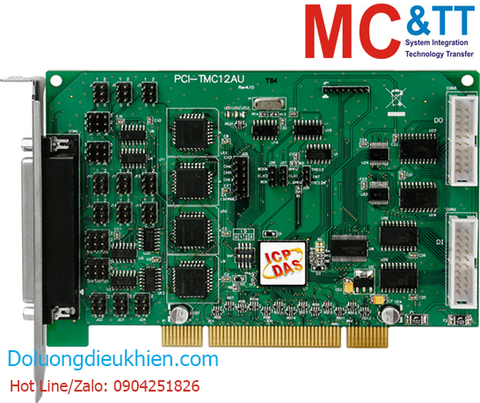

Card PCI 16 kênh vào/ra số DIO + 12 kênh Timer/Counter/Frequency ICP DAS PCI-TMC12AU CR

Features

  • Supports the +3.3/+5 V PCI bus
  • 4 onboard 8254 timer/counter chips
  • 12 independent 16-bit timers/counters
  • 12 external clock inputs
  • 12 external gate control inputs
  • 12 timer/counter output channels
  • 16-bit timer/counter can be cascaded to create 32/48-bit timer/counter
  • Gate input can be either an external signal or the output of a previous timer/counter channel
  • Four interrupt sources
  • Two internal clock sources
  • 16 channels Digital Input
  • 16 channels Digital Output
  • Card ID Function(SMD Switch)
  • Digital Output status readback
  • Hardware mechanism for the generation of two starting-clocks
  • Note: Refer to the PCI-FC16U card for simple frequency measurement applications.

Introduction

The PCI-TMC12AU supports both 5 V and 3.3 V PCI bus. They feature twelve 16-bit timers/counters (four 82C54 chips x 3 timers/counters), 16 TTL digital input channels and 16 TTL digital output channels. The two onboard clocks (8 M/1.6 M and 0.8 M/80 K) are jumper selectable and provide a high-resolution clock source for timers/counters. Counters/timers can be used for industrial and laboratory applications such as pulse/event/switch-toggle counting, frequency readings, elapsed time measurement, pulse-width measurement, PWM (pulse-width-modulated) output, and pulse (square wave) and rate generation, etc.

The PCI-TMC12AU also adds a Card ID switch on board. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PCI-TMC12AU cards in one computer.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

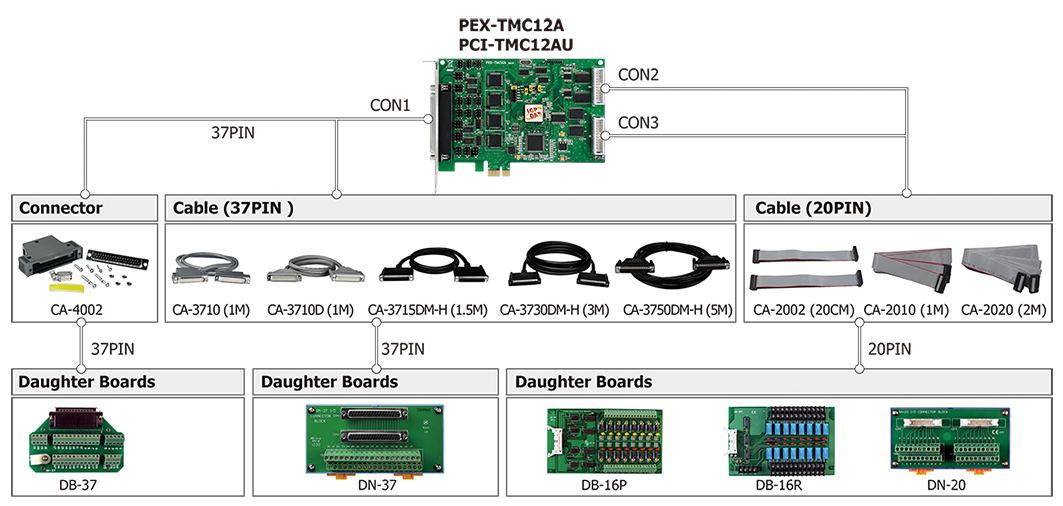

Accessories

Specification

Hardware
Card ID Yes (4-bit)
Connector Female DB37 x 1
20-pin box header x 2



Digital Input
Channels 16
Type 5 V/TTL
TTL Input, ON Voltage Level 2.0 V Min.
TTL Input, OFF Voltage Level 0.8 V Max.
Response Speed 1.0 MHz (Typical)
Trigger Mode Static Update



Digital Output
Channels 16
Type 5 V/TTL
Operation Mode Static Update
Voltage Logic 0: 0.4 V Max.
Logic 1: 2.4 V Min.
Max. Load Current Sink: 24 mA @ 0.8 V
Source: 15 mA @ 2.0 V
Response Speed 1.0 MHz (Typical)



Timer/Counter/Frequency
Channels 12
Type 5 V/TTL(82C54 compatible timer)
Resolution 16-bit
Input Frequency 10 MHz max.
Reference Clock Internal: 8 MHz



PC Bus
Type 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 16-bit



Power
Consumption 500 mA @ +5 V



Mechanical
Dimensions (mm) 105 x 150 x 22 (W x L x D)



Environmental
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Data sheet

Documents

Odering information

PCI-TMC12AU     CR  Universal PCI, 12-ch Timer/Counter Board (RoHS)
Includes one CA-4002 D-Sub connector
