Card PCI 168 kênh vào/ra số DIO ICP DAS PIO-D168U CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Universal PCI, 168-ch Digital I/O Board

THÔNG TIN SẢN PHẨM

Features

Support the +3.3/+5 V PCI bus
168 channels of digital I/O
Bi-direction programmable I/O ports under software control
Four Interrupt source
Pull-high/Pull-low Jumpers for DI Ports
Card ID Function(SMD Switch)
Digital Output status readback

Introduction

The PIO-D168U universal PCI card supports 3.3 V/5 V PCI bus. These cards provide 168 TTL digital I/O lines, and these lines are grouped into eighteen 8-bit bi-direction ports. Every three ports on a connector are grouped and named as port A (PA), port B (PB) and port C (PC) respectively. All ports are configured as inputs upon power-up or reset.

The PIO-D168U also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more PIO-D168U cards in one computer.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

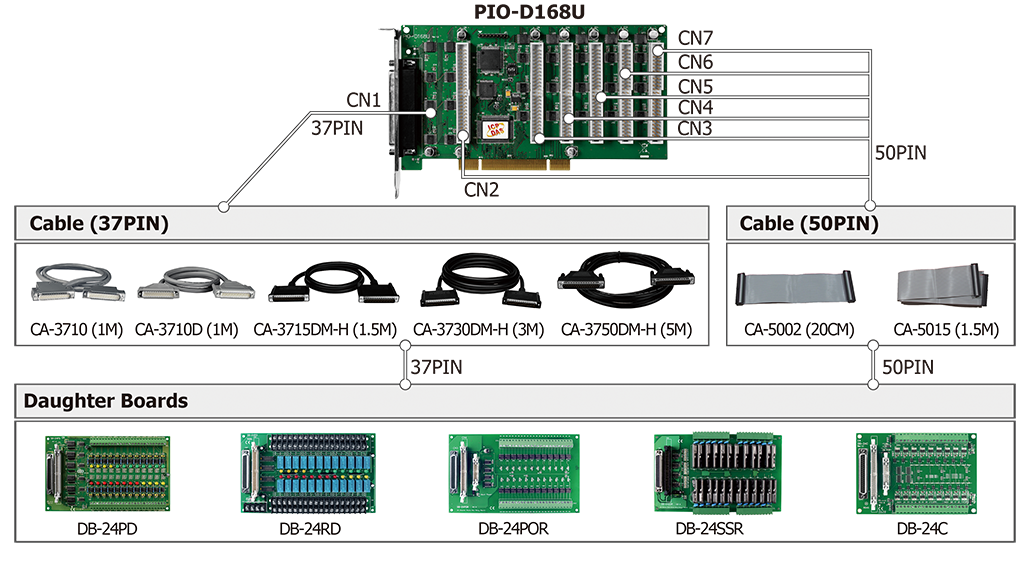

Accessories

Specification

Hardware
Card ID	Yes (4-bit)
Connector	Female DB37 x 1 50-pin box header x 6

Digital Input
Channels	168 (Bi-Direction)
Type	5 V/TTL
TTL Input, ON Voltage Level	2.0 V Min.
TTL Input, OFF Voltage Level	0.8 V Max.
Response Speed	500 kHz (Typical)
Trigger Mode	Static Update

Digital Output
Channels	168 (Bi-Direction)
Type	5 V/TTL
Operation Mode	Static Update
Voltage	Logic 0: 0.4 V Max. Logic 1: 2.4 V Min.
Max. Load Current	Sink: 64 mA @ 0.8 V Source: 32 mA @ 2.0 V
Response Speed	500 kHz (Typical)

PC Bus
Type	3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus	8-bit

Power
Consumption	1300 mA @ +5 V

Mechanical
Dimensions (mm)	105 x 200 x 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Data sheet

D ocuments

Odering information

PIO-D168U CR

Universal PCI, 168-ch Digital I/O Board (RoHS)
