Card PCI 32 kênh đầu vào số DI + 32 kênh đầu ra số DO ICP DAS PISO-1730U CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Universal PCI, 32-ch Isolated DI and 32-ch Open Collector Isolated (Sink, NPN) DO Board

THÔNG TIN SẢN PHẨM

Features

Support the +3.3/+5 V PCI bus
32-channel optically isolated digital input
32-channel optically isolated digital output
Built-in DC/DC converter with 3000 VDC isolation
Card ID function(SMD Switch)
3750 Vrms photo-isolation protection
Digital Output status readback

Introduction

The PISO-1730U universal PCI card supports 3.3 V/5 V PCI bus.The PISO-1730U provides 32 channels of optically isolated digital inputs and 32 channels of optically isolated digital outputs, arranged into four isolated banks. Each input channel uses a photo-coupler input. Each digital output offers a Darlington transistor. The power supply of the output port and input port should use the external power. The board eliminates ground-loop problems and isolates the host computer from damaging voltages.

The PISO-1730U provides a Card ID switch. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PIO-1730U cards in one computer.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

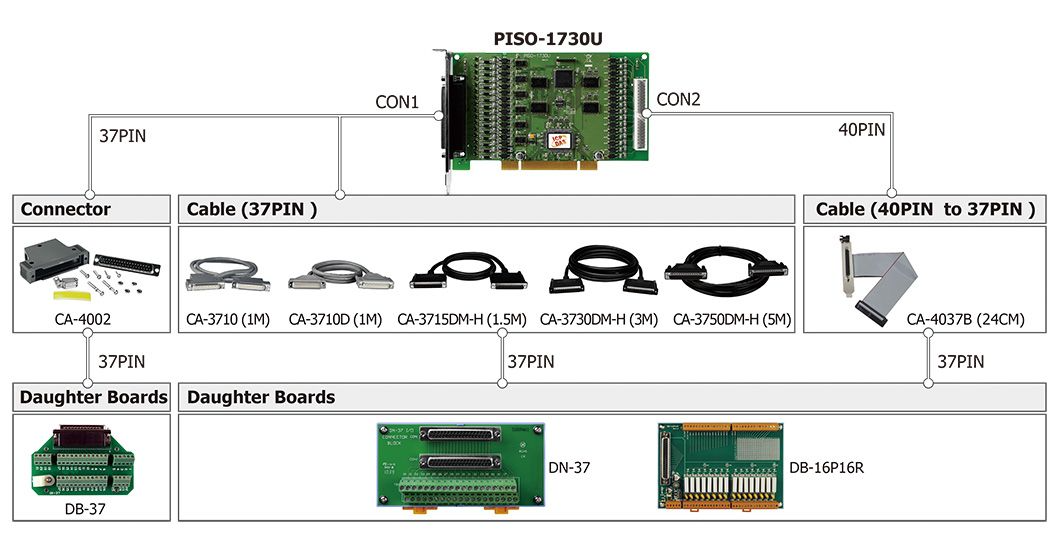

Accessories

Specification

Hardware
Card ID	Yes (4-bit)
Connector	Female DB37 x 1 40-pin box header x 1

Digital Input
Channels	32
Type	Photocoupler (Sink and Source)
Response Speed	4 kHz (Typical)
Trigger Mode	Static Update
Wet Contact, ON Voltage Level	9 ~ 24 V (Min. 7 V ; Max. 30 V)
Wet Contact, OFF Voltage Level	0 ~ 1 V
Isolation	3750 Vrms (Using external power)

Digital Output
Channels	32
Type	Sink(NPN), Open Collector
Operation Mode	Static Update
Max. Load Current	100 mA/+30 V for each channel @ 100% duty
Response Speed	4 kHz (Typical)
Isolation	3750 Vrms

PC Bus
Type	3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus	8-bit

Power
Consumption	600 mA @ +5 V

Mechanical
Dimensions (mm)	105 x 180 x 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Data sheet

D ocuments

Odering information

PISO-1730U CR

Universal PCI, 32-ch Optically Isolated Digital Input and 32-ch Open Collector Isolated Digital Output Board (Current Sinking, NPN) (RoHS) Includes one CA-4037B cable and two CA-4002 D-Sub connectors
