Universal PCI, 32-ch Optical Isolated DI and 32-ch Open Collector Isolated (Source, PNP) DO Board

THÔNG TIN SẢN PHẨM

Features

Support the +3.3/+5 V PCI bus
32 Optically-isolated Digital Input Channels
32 Optically-isolated Digital Output Channels(Source, PNP)
Built-in DC/DC converter with 3000 VDC isolation
Card ID function (SMD Switch)
Four isolated banks
3750 Vrms photo-isolation protection
Digital Output status readback

Introduction

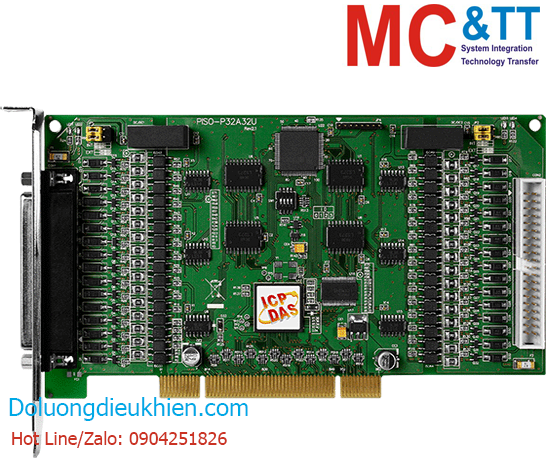

The PISO-P32A32U universal PCI card supports 3.3 V/5 V PCI bus. These cards provide 32 optically-isolated Digital Input channels and 32 optically-isolated Digital Output channels, arranged into four isolated banks. Each Digital Output channel includes a PNP transistor and an integral suppression diode for the inductive load. Isolated input channels 0-15 are allocated to Group A, while channels 16-31 are allocated to Group B. Isolated output channels are allocated to Groups C and D. The photocoupler input for the PISO-P32A32U can be powered by either an internal current source or an external power supply, while the input for the PISO-P32A32U operates using an external power supply only.

This interface board is easily installed in any PC. The board interface to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. The PISO-P32A32U has one 37-pin D-Sub connector and one 40-pin male header. The 40-pin to DB-37 flat-cable is used to fix with the case. The user can connect the digital signal through the second D-Sub connector. Each D-Sub connector contains 16 input channels and 16 output channels.

The PISO-P32A32U also include an onboard Card ID switch that enables the board to be recognized via software if two or more boards in the same computer.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

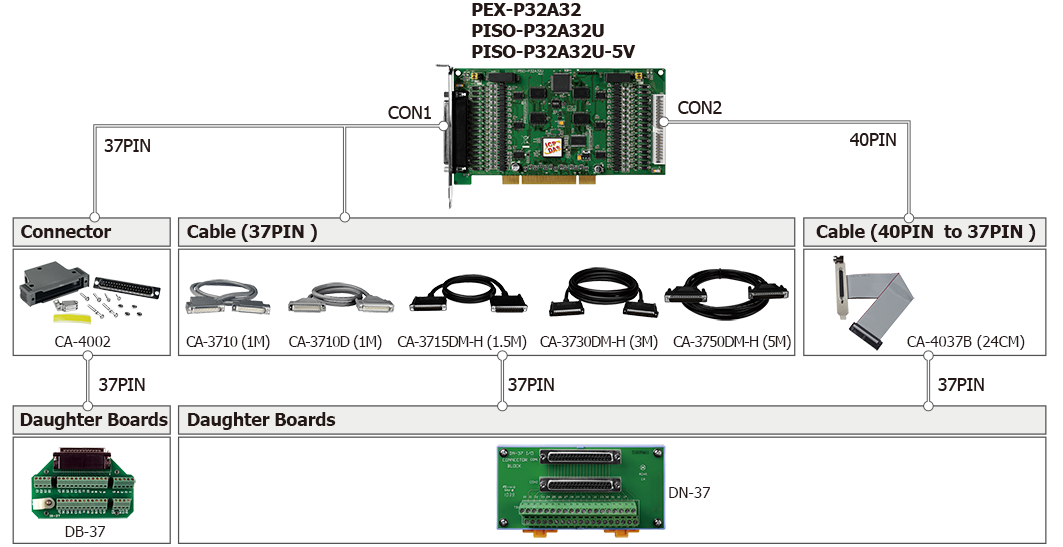

Accessories

Specification

Hardware
Card ID	Yes (4-bit) for Version 4.0 or above
Connector	Female DB37 x 1 40-pin box header x 1

Digital Input
Channels	32
Type	Photocoupler (Sink and Source)
Response Speed	4 kHz (Typical)
Trigger Mode	Static Update
Wet Contact, ON Voltage Level	5 ~ 12 V (Min. 3.5 V; Max. 16 V)
Wet Contact, OFF Voltage Level	0 ~ 1 V
Dry Contact, ON Voltage Level	Close to GND
Dry Contact, OFF Voltage Level	Open
Isolation	3750 Vrms (Using external power)

Digital Output
Channels	32
Type	Source(PNP), Open Emitter
Operation Mode	Static Update
Voltage	100 mA/+30 V for each channel @ 100% duty
Response Speed	4 kHz (Typical)
Isolation	3750 Vrms

PC Bus
Type	3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus	8-bit

Power
Consumption	600 mA @ +5 V

Mechanical
Dimensions (mm)	105 x 180 x 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Data sheet

D ocuments

Odering information

PISO-P32A32U-5V CR

Universal PCI, 32-ch Optical Isolated Digital Input and 32-ch Open Collector Isolated Digital Output Board (Current Source, PNP) (RoHS) Includes one CA-4037B cable and two CA-4002 D-Sub connectors
