Universal PCI, 32-ch Isolated DI and 32-ch Open Collector Isolated (Sink, NPN) DO Board

THÔNG TIN SẢN PHẨM

Features

Support the +3.3/+5 V PCI bus
32-channel optically isolated digital input
32-channel optically isolated digital output
Built-in DC/DC converter with 3000 VDC isolation
Card ID function(SMD Switch)
3750 Vrms photo-isolation protection
Digital Output status readback

Introduction

The PISO-P32C32U universal PCI card supports 3.3 V/5 V PCI bus. These cards provide 32 channels of optically isolated digital inputs and 32 channels of optically isolated digital outputs, arranged into four isolated banks. Each input channel uses a photo-coupler input which allows either internal isolated power supply or external power selected by jumper. Each digital output offers a Darlington transistor. The power supply of the input port may use the external power or the power from the PC side via DC/DC converter. The power supply of the output port should use the external power. The board eliminates ground-loop problems and isolates the host computer from damaging voltages.

The PISO-P32C32U also adds a Card ID switch. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PISO-P32C32U cards in one computer.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

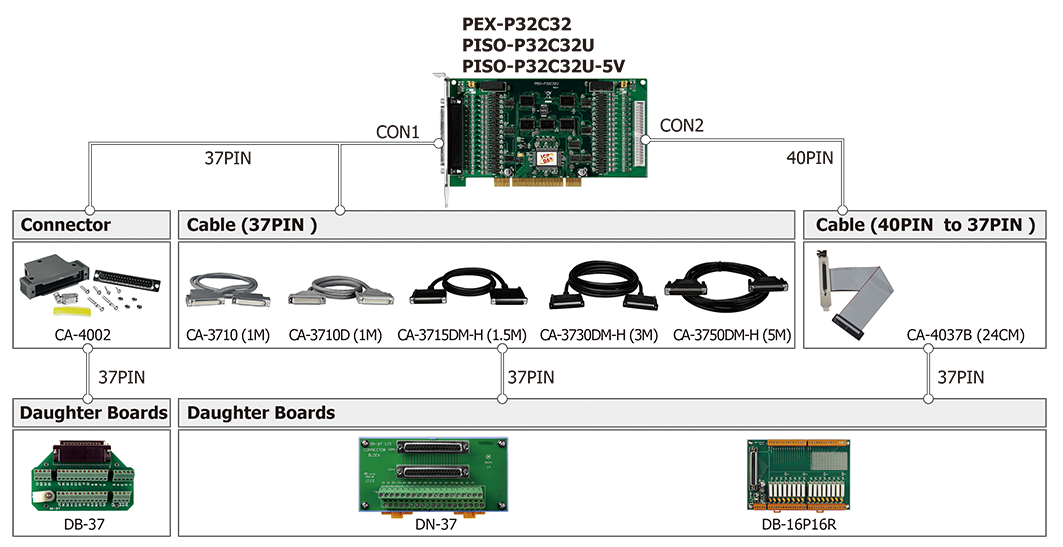

Accessories

Specification

Hardware
Card ID	Yes (4-bit) for Version 1.1 or above
Connector	Female DB37 x 1 40-pin box header x 1

Digital Input
Channels	32
Type	Photocoupler (Sink and Source)
Response Speed	4 kHz (Typical)
Trigger Mode	Static Update
Wet Contact, ON Voltage Level	5 ~ 12 V(Min. 3.5 V; Max. 16 V)
Wet Contact, OFF Voltage Level	0 ~ 1 V
Dry Contact, ON Voltage Level	Close to GND
Dry Contact, OFF Voltage Level	Open
Isolation	3750 Vrms (Using external power)

Digital Output
Channels	32
Type	Sink(NPN), Open Collector
Operation Mode	Static Update
Max. Load Current	100 mA/+30 V for each channel @ 100% duty
Response Speed	4 kHz (Typical)
Isolation	3750 Vrms

PC Bus
Type	3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus	8-bit

Power
Consumption	600 mA @ +5 V

Mechanical
Dimensions (mm)	105 x 180 x 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Data sheet

D ocuments

Odering information

PISO-P32C32U-5V CR

Universal PCI, 32-ch Optically Isolated Digital Input and 32-ch Open Collector Isolated Digital Output Board (Current Sinking, NPN) (RoHS) Includes one CA-4037B cable and two CA-4002 D-Sub connectors
