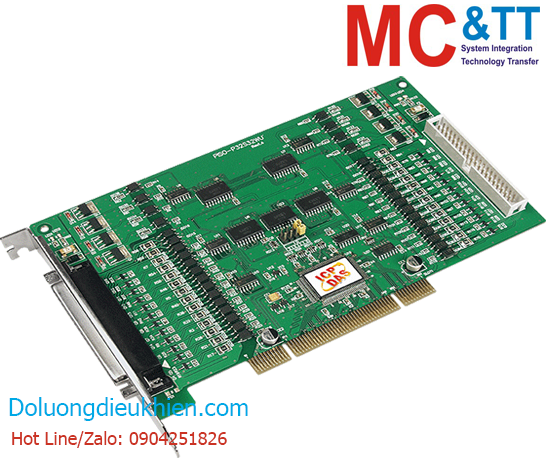

Card PCI 32 kênh đầu vào số DI + 32 kênh đầu ra số DO ICP DAS PISO-P32S32WU CR

Features

  • Support the +3.3/+5 V PCI bus
  • 32-channel optically isolated digital input
  • 32-channel optically isolated digital output
  • Built-in DC/DC converter with 3000 VDC isolation
  • Card ID function(SMD Switch)
  • 3750 Vrms photo-isolation protection
  • Digital Output status readback

Introduction

PISO-P32S32WU has 32 channels of optical-isolated DI and 32 channels of optical-isolated open-collector output board (8-channel for 500 mA and 24-channel for 100 mA current sinking output, NPN), arranged into four isolated banks. Each input channel use a photo-coupler to isolate the card and computer from external signal. Each digital output offers a NPN transistor and integral suppression diode for inductive load. PISO-P32S32WU requires external power to drive the D/I and D/O ports and supports Card ID (jumper) features for multi-board identification and supports both 5 V and 3.3 V PCI slot.

This interface board is easily installed in any PC. The board interface to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. PISO-P32S32WU has one 37-pin D-Sub connector and one 40-pin male header. The 40-pin to DB-37 flat cable is used to fix with the case. The user can connect the digital signal through the second D-Sub connector. Each D-Sub connector contains 16 input channels and 16 output channels.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications

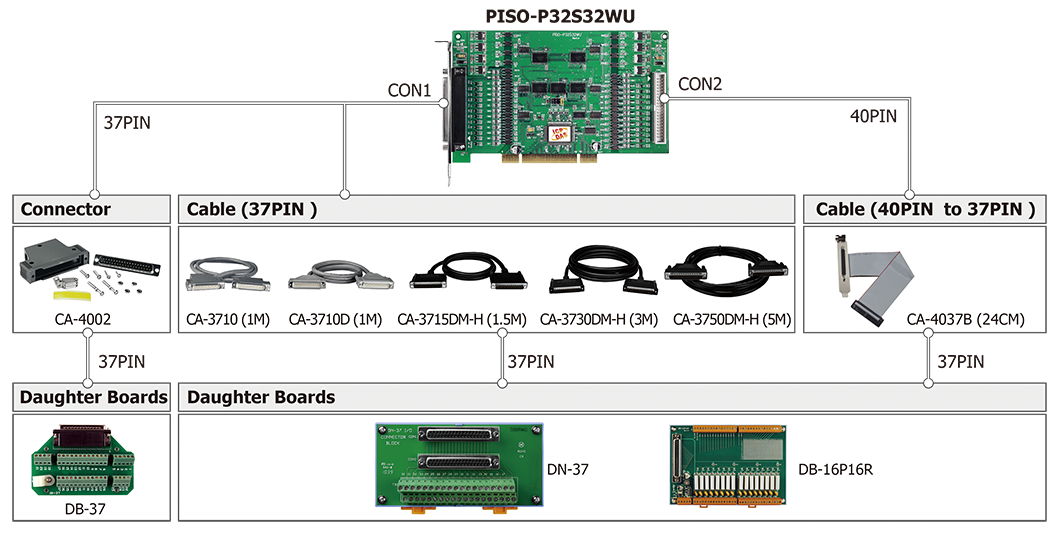

Accessories

Specification

Hardware
Card ID Yes (4-bit) for version 1.5 or above
Connector Female DB37 x 1
40-pin box header x 1



Digital Input
Channels 32
Type Photocoupler (Sink and Source)
Response Speed 4 kHz (Typical)
Trigger Mode Static Update
Wet Contact, ON Voltage Level 9 ~ 24 V
Wet Contact, OFF Voltage Level 0 ~ 1 V
Isolation 3750 Vrms (Using external power)



Digital Output
Channels 32
Type Sink(NPN), Open Collector
Operation Mode Static Update
Max. Load Current 500 mA for one high driving channel @ 100% duty
500 mA for all high driving channels @ 100% duty
(The GND pins all must be connected with GND of External Power)
100 mA for one low driving channel @ 100% duty
100 mA for all low driving channels @ 100% duty
(The GND pins all must be connected with GND of External Power)
Response Speed 4 kHz (Typical)
Isolation 3750 Vrms (Using external power)



PC Bus
Type 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 8-bit



Power
Consumption 600 mA @ +5 V



Mechanical
Dimensions (mm) 105 x 180 x 22 (W x L x D)



Environmental
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Data sheet

Documents

Odering information

PISO-P32S32WU     CR  Universal PCI, 32-ch Optical Isolated Digital Input and 32-ch Open Collector Isolated Digital Output Board (Current Sinking, NPN) (RoHS) Includes one CA-4037B cable and two CA-4002 D-Sub connectors
