Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ chuyển đổi RS-232/485 sang Wi-Fi Modbus Gateway ICP DAS RMV-760D-MTCP CR
Tính năng
Giới thiệu
RMV-760D-TCP is a Modbus TCP/RTU gateway. It exchanges Modbus command from Modbus TCP/RTU master to Modbus RTU/TCP slave. Modbus TCP command can be transceived not only Ethernet port but also Wi-Fi interface. It supports VxComm and Pair-Connection functions. Users can choose Ethernet mode or Wi-Fi mode to do the pair connection, which provides TCP data tunneling between two serial devices
Ứng dụng
Statement of connection mode

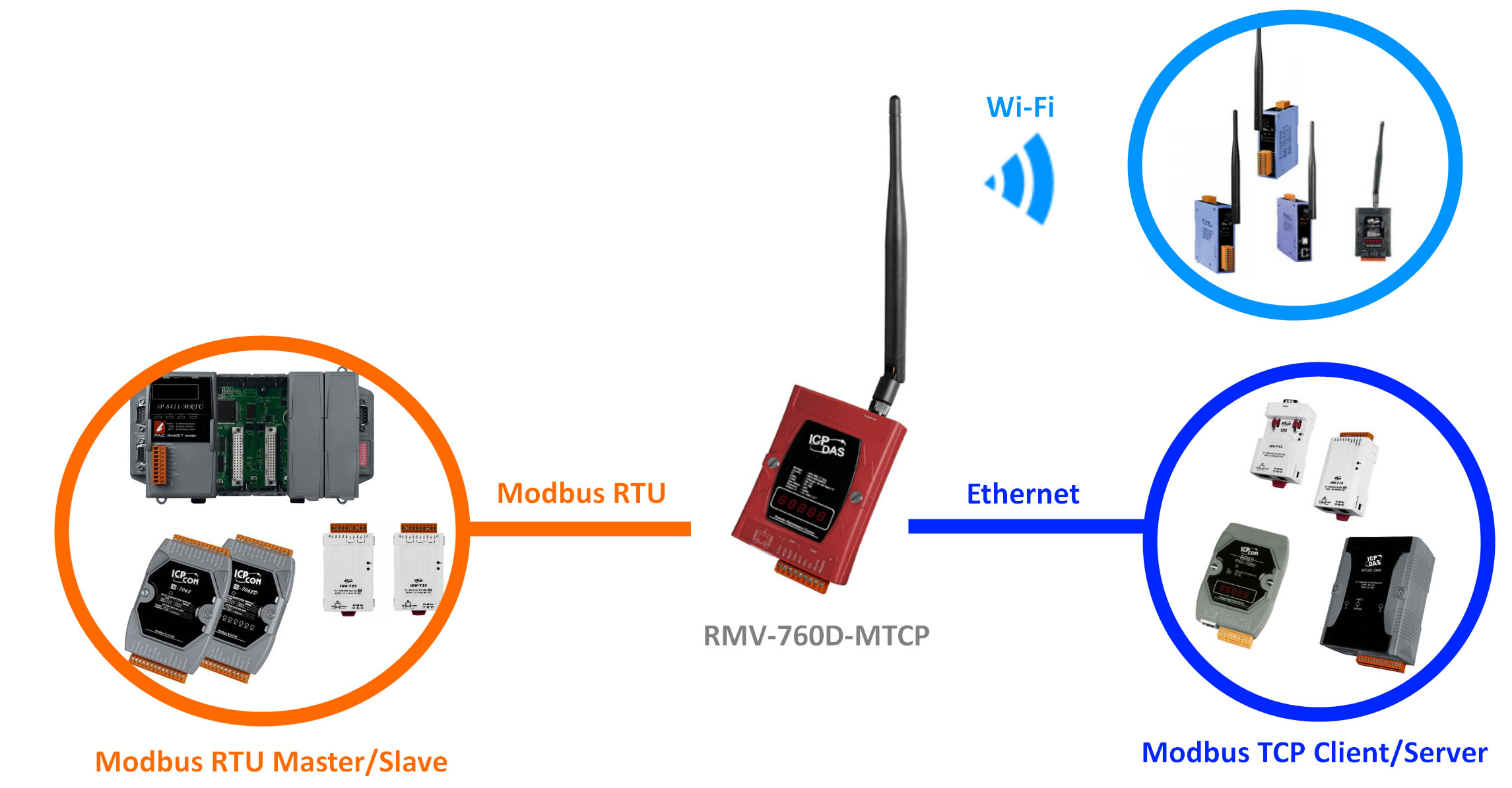

Modbus TCP and Modbus RTU data exchange.
Exchange data between Modbus TCP and Modbus RTU.

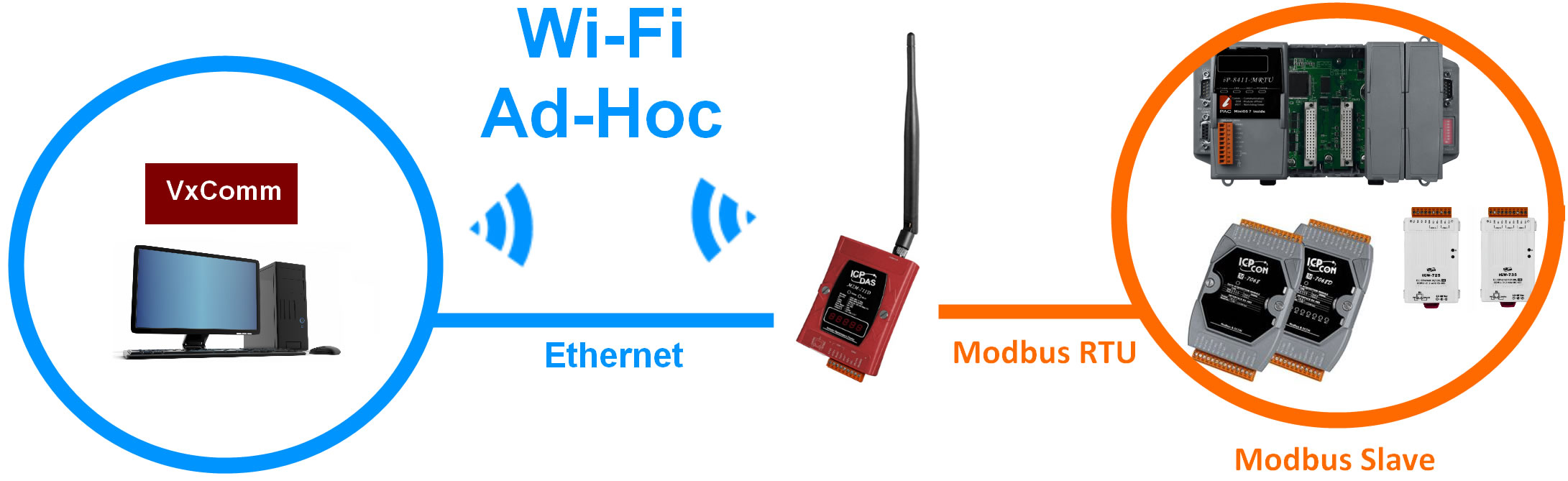

VxComm Mode:
In this mode, users must install VxComm Driver in the PC to use serial communication.

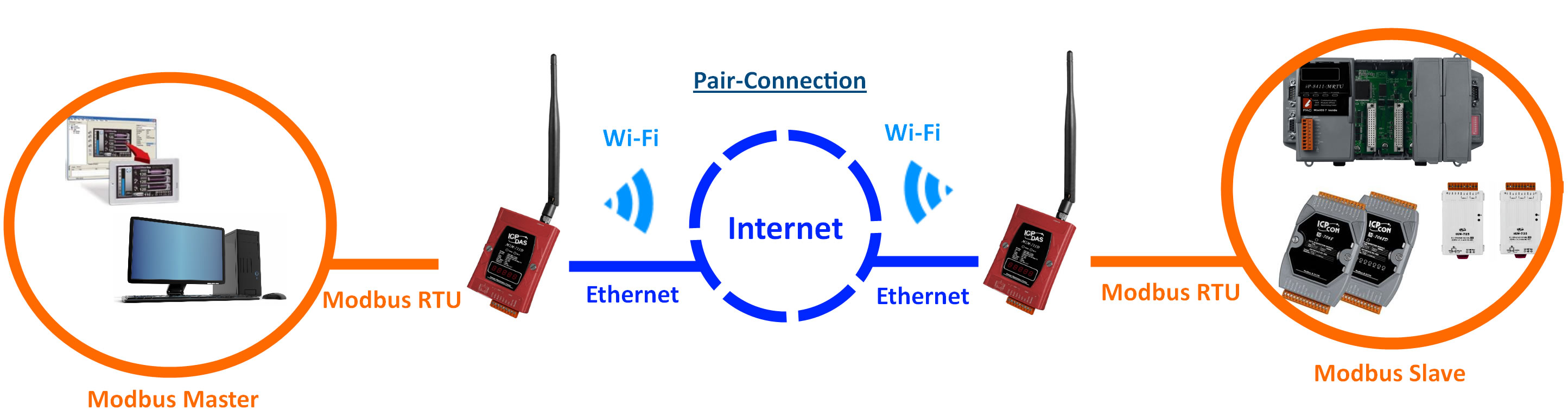

Pair-Connection Mode:
This mode requires two modules cooperate with each other, one is Pair-Connection Server the other is Pair-Connection Client.
Transmission Type:

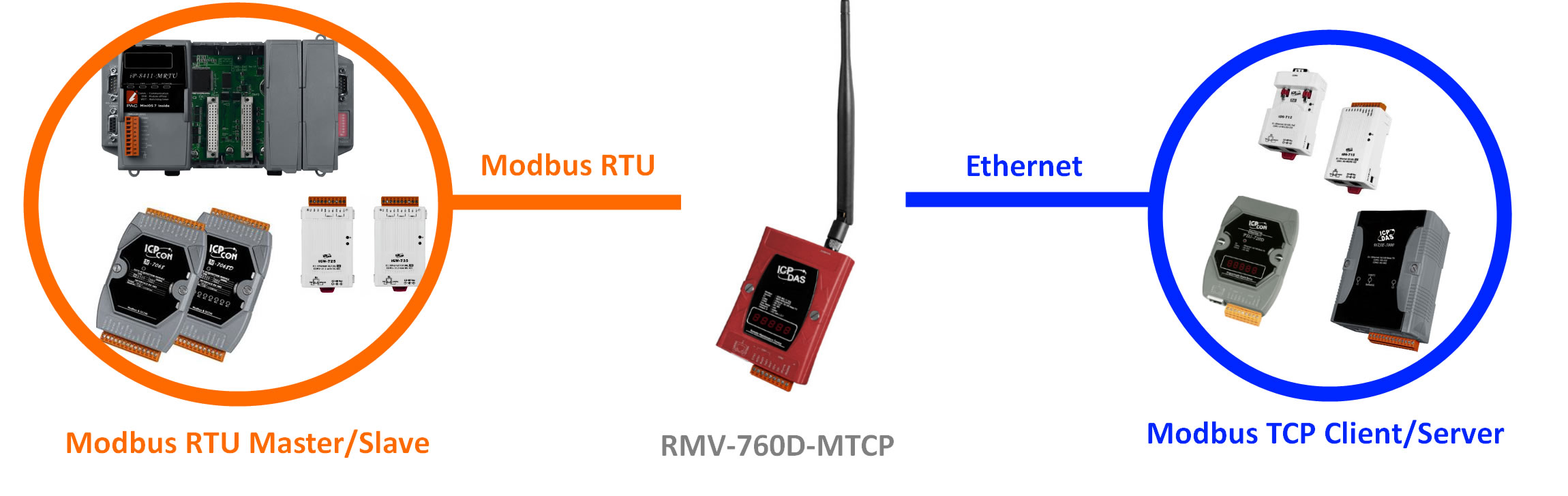

Ethernet:
This mode use RJ-45 Ethernet cable to connect to the Internet and transmit data with others devices.

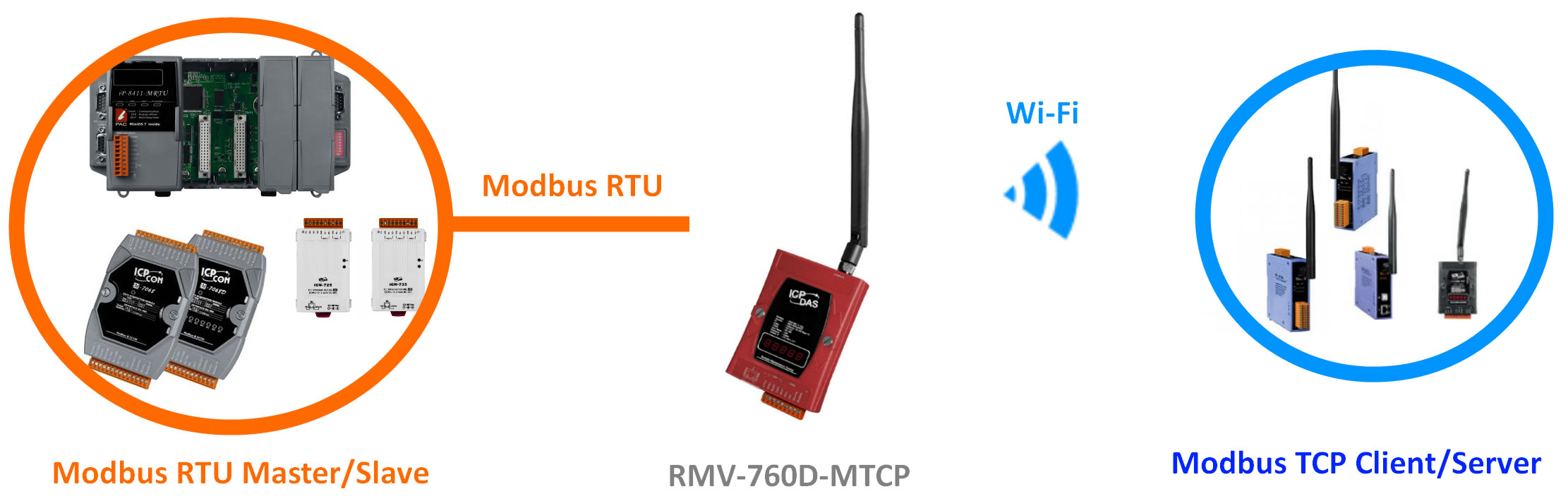

AP:
This mode use Wi-Fi AP to connect to the Internet and transmit data

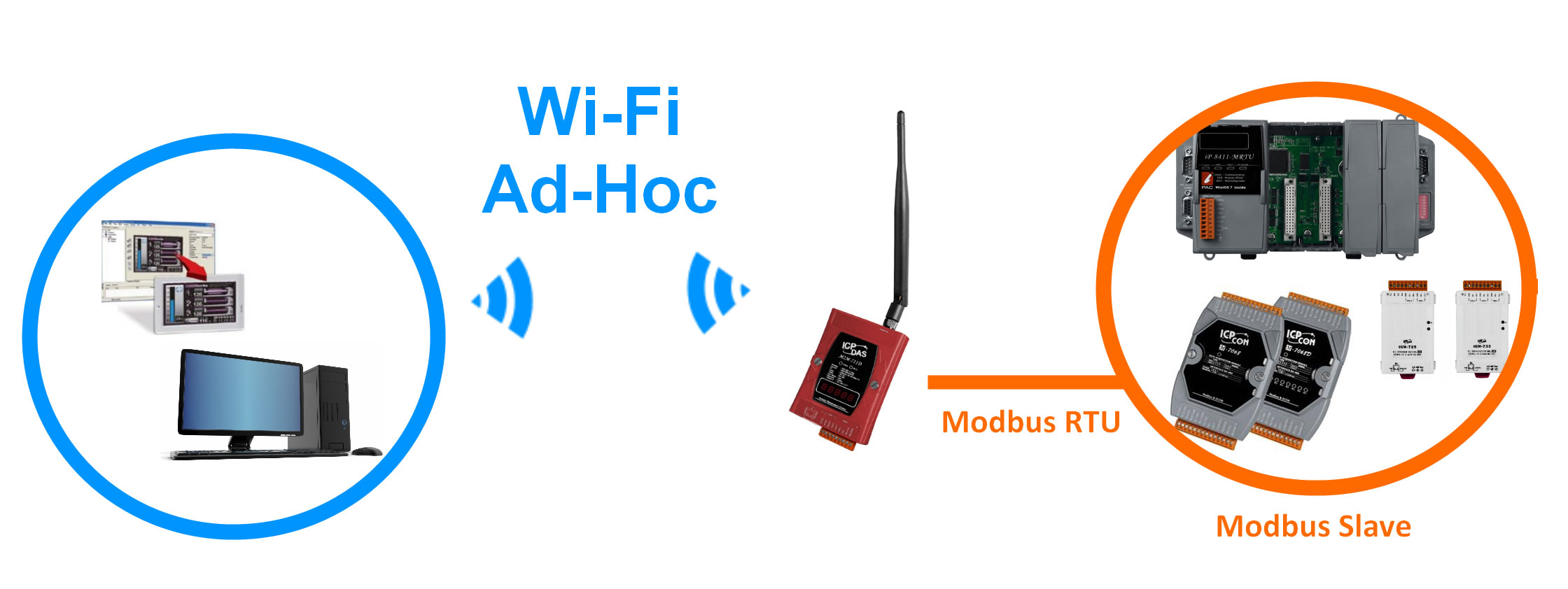

Ad Hoc:
In this mode, if the PC has Wi-Fi Wireless LAN Card, users can make the PC and RMV-760D-MTCP transmit data without Wi-Fi AP and the transmission distances up to 50 meters.
Thông số kỹ thuật
| CPU Module | |
|---|---|
| CPU | 32-bit MCU |
| Wi-Fi | |
|---|---|
| Transmission Distance (LoS) | 50 meters (LOS) |
| Standard | IEEE 802.11b/g |
| RX Sensitivity | -83 dBm @ 11Mbps |
| Output Power | 8 dBm @ 11Mbps |
| Mode | Infrastructure & Ad-hoc |
| Encryption | WEP, WPA and WPA2 |
| Antenna | 5 dBi (Omni-Directional) |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 1 x RS-485 1 x RS-422 |
| Baud Rate | 115200 bps Max. |
| Parity | None, Odd, Even |
| Data Bit | 7, 8 |
| Stop Bit | 1, 2 |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100 Base-TX, 8-pin |
| Power | |
|---|---|
| Input Range | +10 ~ 30 VDC |
| Consumption | 0.05 A @ 24 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 x 106 x 120 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10% ~ 95% (non-condensing) |
Download
Thông tin mua hàng
| RMV-760D-MTCP CR | MB TCP/RTU Data-Exchange With Wi-Fi Interface Gateway (RoHS) (Asia Only) |
