Bộ định dạng xác định vị trí cục bộ (Wireless Location System) ICP DAS WLS-CFG CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

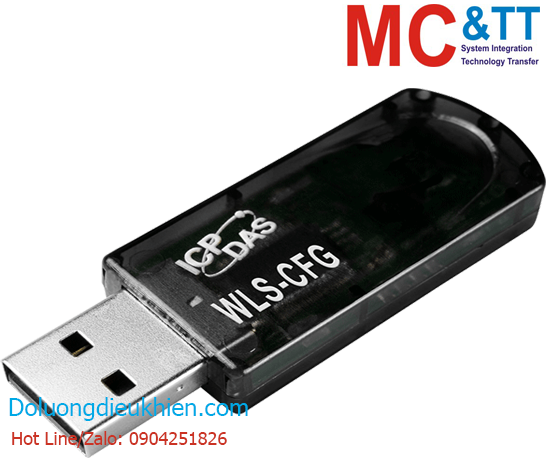

WLS-CFG CR Wireless Location System Configurator (Asia Only) (RoHs)

Gọi +84 904251826 để được trợ giúp

Bộ định dạng xác định vị trí cục bộ (Wireless Location System) ICP DAS WLS-CFG CR

Tính năng

  • Built in 2.4GHz 3dBi PCB directional antenna
  • ISM 2.4GHz operating frequency
  • Direct Sequence Spread Spectrum (DSSS) RF technology
  • Wireless transmission range up to 10 m (Line of Sight)
  • Fully Compliant with the USB 1.1/2.0 (High Speed)
  • Operating Temperatures, -25 °C ~ +75 °C

Giới thiệu

The WLS-CFG is a small-sized wireless configurator, build in 3dBi directional PCB antenna, it can be used to read the base messages of the transmitter (called Tag) in the wireless locating system (WLS), or be used to set the parameter of Tag. WLS-CFG's wireless frequency are same with Tag, they use ISM 2.4GHz global common frequency band, users don't need any setting in WLS-CFG will communicate with Tag. In addition, we supply the reading/setting software (WLS Analyzer) in the Windows operating system, when users install the software, the driver of WLS-CFG will install automatically, users can use the software to read/set the parameters are like RF channel, RF power or timed transmission cycle to Tag, the friendly user interface is also helping users be familiar with WLS series.

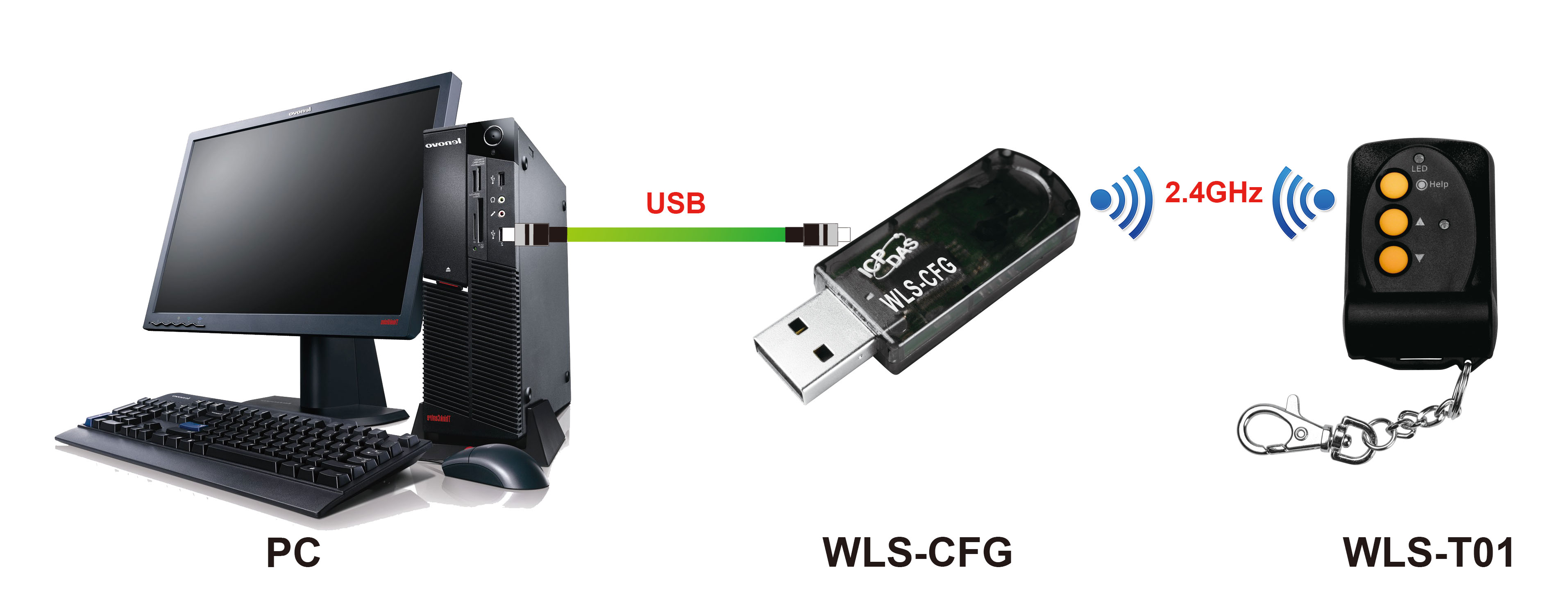

Ứng dụng

Thông số kỹ thuật

LED Indicators
Status 1 x wireless receiving status
RF
Antenna 2.4 GHz - PCB Antenna (3dBi, 50Ω)
Channels 16
Frequency Band 2.4GHz
Transmission Power 3 dBm
Transmission Distance (LoS) 10 meters (Max.)
USB
Connector Type-A Plug
Driver Windows XP/7/8/10
Power
Consumption 0.3 W(Max.)
Mechanical
Casing Plastic
Dimensions (mm) 19.8 x 58.4 x 9 (W x L x H)
Environment
Operating Temperature -25°C ~ +75°C
Storage Temperature -30°C ~ +80°C
Humidity 10 ~ 90% RH (non-condensing)

Download

Data Sheet

Documents
