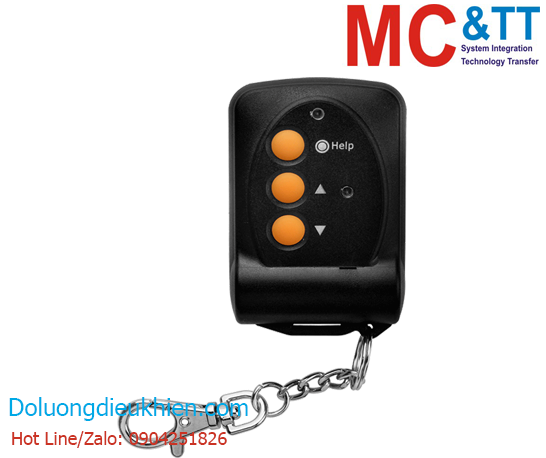

Thiết bị thu phát không dây xác định vị trí cục bộ ICP DAS WLS-T01 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

Battery Standard Type Wireless Locating System Transmitter with Help Button (100 m)

Gọi +84 904251826 để được trợ giúp

Thiết bị thu phát không dây xác định vị trí cục bộ ICP DAS WLS-T01 CR

Features

  • Supports the button help function
  • Supports 16 segments setting of RF channels
  • Supports 16 segments setting of RF power
  • Built in battery low power LED indicator
  • Built in 2.4GHz 3dBi PCB directional antenna
  • ISM 2.4GHz operating frequency
  • Direct Sequence Spread Spectrum (DSSS) RF technology
  • Wireless transmission range up to 100 m (Line of Sight)
  • Low power consumption design(1 pcs CR123A battery, when operating temperature from +20° C~+60° C, it can be used 2 years)

Introduction

WLS-T01 is a 2.4GHz wireless transmitter (called Tag) by battery supported, it can broadcast automatically 2.4GHz wireless Locating packages to WLS-R01. WLS-T01's wireless frequency use ISM 2.4GHz global common frequency band total have 16 channels, the range of 16 channels are 2.405GHz to 2.48GHz, it can separated into 5MHz segments, and WLS-T01 supports 16 sectors of RF power setting. The user can use the button to adjust the above settings. In addition, WLS-T01 supports help button, low battery power indicator, and built in Node ID, 3dBi directional PCB antenna and other user-friendly design can effectively reducing the size for the user to carry it. The user can also send a distress signal in an emergency situation, and let people know his relative position to support him. The wireless transmission range (line of sight, LOS) of WLS-T01 is 100 meters, and WLS-T01 uses low power consumption design architecture, when the user installs a CR-123A battery (3.0 VDC) and the wireless transmission interval is 3 seconds, operating temperature in +20°C to +60°C, the use of time can be up to 2 years, if battery will low power, the user can change the new battery by himself, so WLS-T01 very suitable for use in item tracking, personnel movements in hazardous areas, factory regional management and other applications.

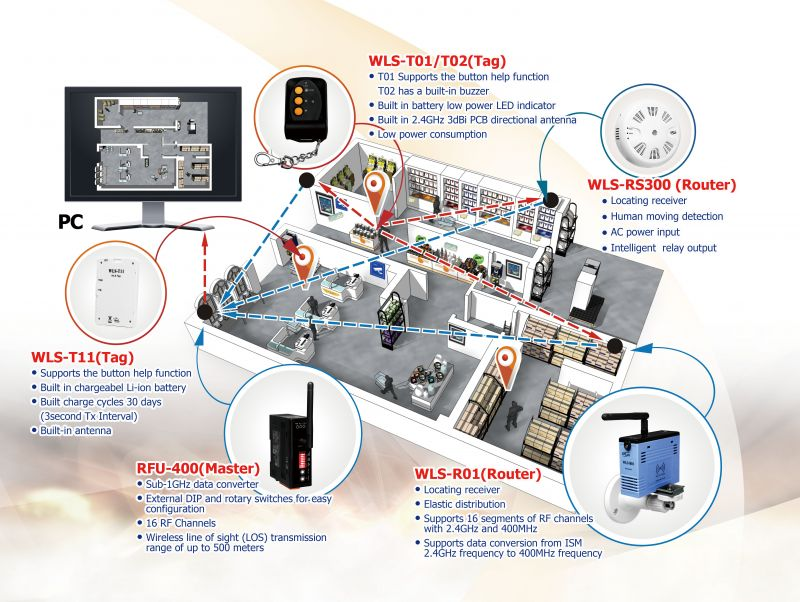

Application

Specification

EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power
ESD (IEC 61000-4-2) ±4 kV Contact for Screw



LED Indicators
Status 1 x Help
1 x Low battery power



RF
Antenna 2.4GHz-3dBi PCB Directional Antenna
Channels 16
Frequency Band 2.4GHz
Modulation OQPSK (Offset Quadrature Phase-shift Keying)
Spread Spectrum DSSS (Direct-Sequence Spread Spectrum)
Transmission Power 16±1dBm (Default) / 17dBm (Max.)
Transmission Distance (LoS) 100 m (Typical)



Power
Input Range 1 x CR123A (3.0 VDC)
Consumption 166uW@3VDC / 1.33mAh@1 Day (3 second Tx Interval)



Mechanical
Dimensions (mm) 43 x 70 x 21 (W x L x H)
Installation Hook



Environmental
Operating Temperature -25 ~ +75°C (No battery included)
-25 ~ +60°C (Battery included)
Storage Temperature -30 ~ +80°C (No battery included)
-20 ~ +45°C (Battery included)
Humidity 10 ~ 90% RH(Non-condensing, No battery included)
20 ~ 65% RH(Non-condensing, Battery included)

Download

Data Sheet

Documents

Ordering information

WLS-T01 CR  Battery Standard Type Wireless Locating System Transmitter with Help Button (100 m) (Asia Only) (RoHs)
