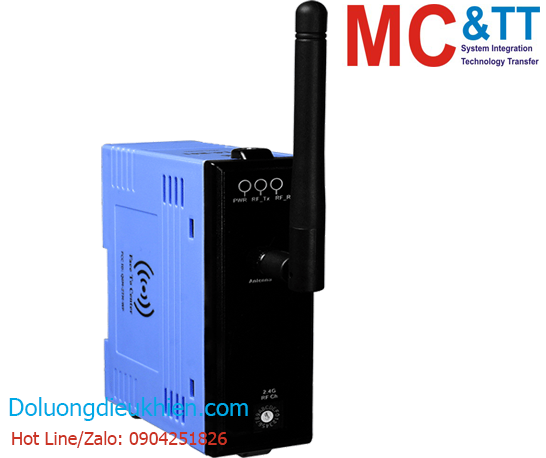

Thiết bị thu phát không dây xác định vị trí cục bộ ICP DAS WLS-R01 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

General Type Wireless Locating System Receiver

Gọi +84 904251826 để được trợ giúp

Thiết bị thu phát không dây xác định vị trí cục bộ ICP DAS WLS-R01 CR

Features

  • Supports data conversion from ISM 2.4GHz frequency to 400MHz frequency
  • Supports 16 segments of RF channels with 2.4GHz and 400MHz
  • Supports RSSI filtering function
  • Built in 2.4GHz 3dBi PCB directional antenna
  • 2.4GHz wireless transmission range up to 100 m (Line of Sight)
  • 400MHz wireless transmission range up to 500 m (Line of Sight)
  • Supports external DIP and rotary switches for easy configuration
  • Baud rate settings: 9600, 19200, 38400, 57600 and 115200 bps
  • DIN-Rail mountable

Introduction

WLS-R01 is a 2.4GHz wireless receiver, it is mainly installed in fixed position to receive the 2.4GHz wireless Locating data of WLS-T01 broadcast. In the other hand, WLS-R01 is also a wireless converter (called Router) from 2.4GHz to 400MHz. it can effectively use 400MHz high transmittance characteristics to extend the wireless transmission distance, and don't need add wire between the communication paths. The WLS software in the PC can use transparent function of RFU-400 to poll the wireless Locating data of WLS-T01, and then calculate the relative position of WLS-T01 by the algorithm. WLS-R01 include two wireless frequency, one is ISM 2.4GHz global common frequency band total have 16 channels, the range of 16 channels are 2.405GHz to 2.48GHz, it can separated into 5MHz segments, and the wireless transmission range (line of sight, LOS) is 100 meters; the other is 400MHz frequency band total have 16 channels, the range of 16 channels are 429.1750MHz to 429.2375MHz and 429.8125 MHz to 429.9250 MHz, and the wireless transmission range (line of sight, LOS) is 500 meters. In addition, the user can divide four groups ID in the each 400MHz channel to avoid adjacent channels affect each other. The user can simply use the DIP switch and rotation switch to configure the parameter, and don't need to add wire between the communication paths, that can speed up to build the system, and reduce the cost, so it very suitable for use in item tracking, personnel movements, factory regional management and other applications.

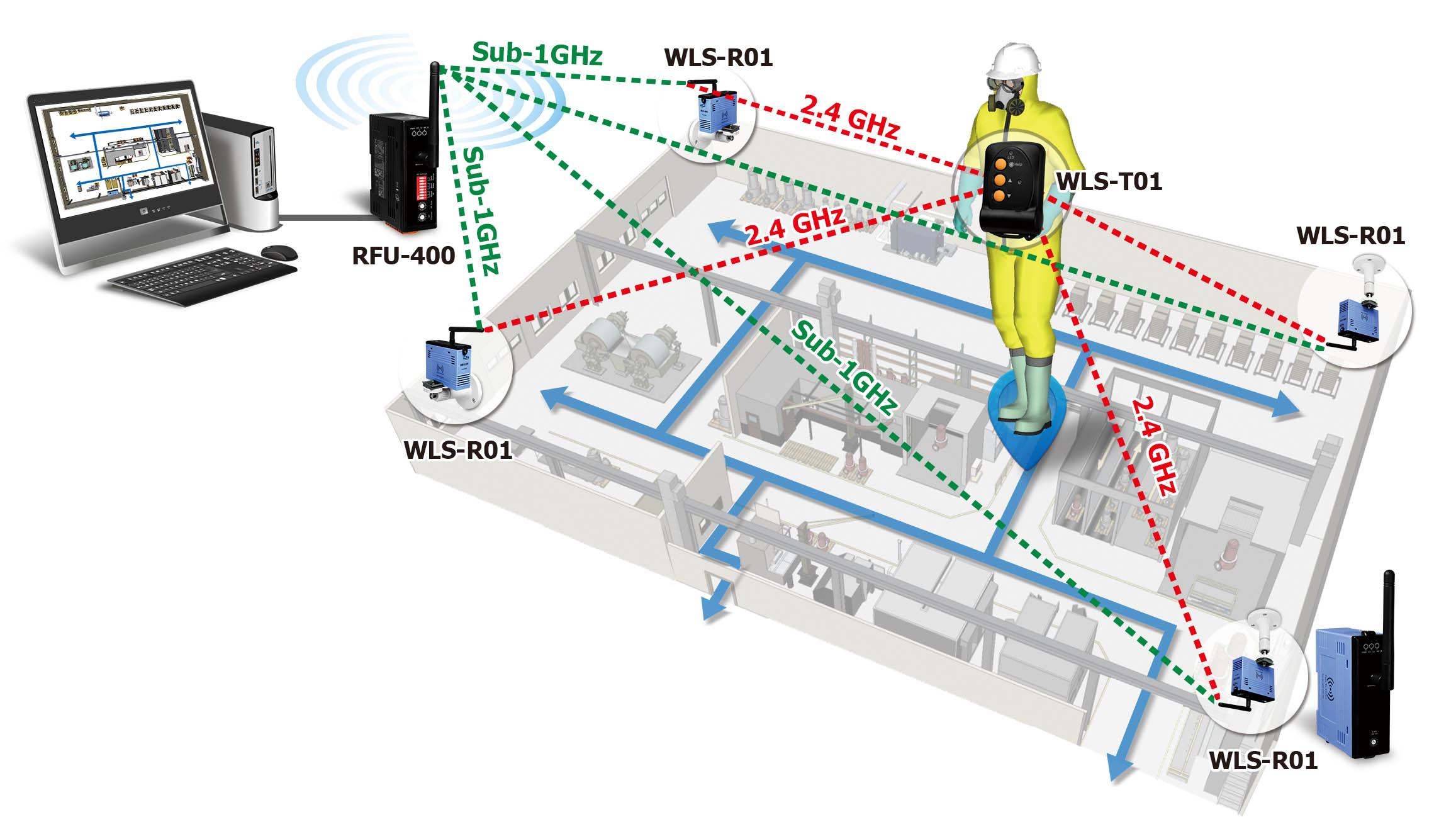

Application

Specification

EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power
ESD (IEC 61000-4-2) ±4 kV Contact for Power Line, ±8 kV Air for Random
Surge (IEC 61000-4-5) ±3 kV for Power



LED Indicators
Status 1 x Power
1 x 400MHz Transmitted status
1 x 2.4GHz Received status



RF
Antenna 2.4GHz:2.4GHz - 3dBi PCB directional antenna
400MHz: 429MHz – 0dBi Omni directional antenna
Channels 16
Frequency Band 2.4GHz: 2.4GHz
400MHz: Channel 0~9- 429.8125 MHz to 429.9250 MHz;
Channel A~F- 429.1750 MHz to 429.2375 MHz
Modulation 2.4GHz:OQPSK (Offset Quadrature Phase-shift Keying)
Spread Spectrum 2.4GHz:DSSS (Direct-Sequence Spread Spectrum)
Transmission Power 2.4GHz:16±1dBm (Default) / 17dBm (Max.)
400MHz:19dBm (Default / Max.)
No. of Nodes 2.4GHz:90 (Max., Tag Tx interval is 3 seconds)
Transmission Distance (LoS) 2.4GHz:100m (Default)
400MHz:500m(Default)



Power
Input Range +10 ~ +30 VDC
Consumption 1 W Max.



Mechanical
Dimensions (mm) 33 x 110 x83 (W x L x H)
Installation DIN-Rail



Environmental
Operating Temperature -25°C ~ +75°C
Storage Temperature -30°C ~ +80°C
Humidity 10 ~ 90% RH, Non-condensing

Download

Data Sheet

Documents

Ordering information

WLS-R01 CR  General Type Wireless Locating System Receiver (Asia Only) (RoHS)
