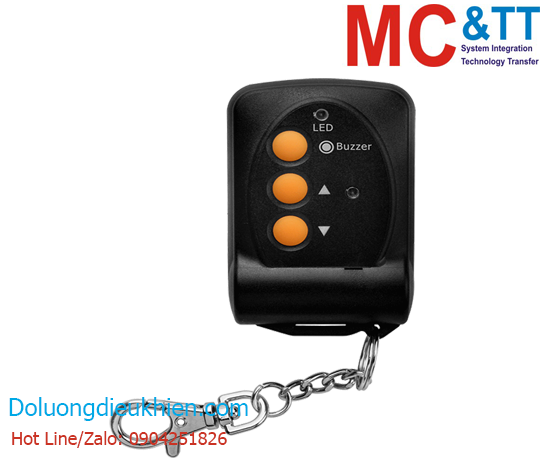

Thiết bị thu phát không dây xác định vị trí cục bộ ICP DAS WLS-T02 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Battery Standard Type Wireless Locating System Transmitter with Buzzer (100 m)

THÔNG TIN SẢN PHẨM

Features

Supports 16 segments setting of RF channels
Supports 16 segments setting of RF power
Built in a buzzer and supports remote enabling buzz function
Built in battery low power LED indicator
Built in 2.4GHz 3dBi PCB directional antenna
ISM 2.4GHz operating frequency
Direct Sequence Spread Spectrum (DSSS) RF technology
Wireless transmission range up to 100 m (Line of Sight)
Low power consumption design(1 pcs CR123A battery, when operating temperature from +20° C~+60° C, it can be used 1 years)

Introduction

WLS-T02 is a 2.4GHz wireless transmitter (called Tag) by battery supported, it can broadcast automatically 2.4GHz wireless location packages to WLS-R01. WLS-T02’s wireless frequency use ISM 2.4GHz global common frequency band total have 16 channels, the range of 16 channels are 2.405GHz to 2.48GHz, it can separated into 5MHz segments, and WLS-T01 supports 16 sectors of RF power setting. The user can use the button to adjust the above settings. In addition, WLS-T02 supports a buzzer, low battery power indicator, and built in Node ID, 3dBi directional PCB antenna and other user-friendly design can effectively reducing the size for the user to hook it on an equipment, and users can remote enabling the buzz function to find the equipment quickly. The wireless transmission range (line of sight, LOS) of WLS-T02 is 100 meters, and WLS-T02 uses low power consumption design architecture, when the user installs a CR-123A battery (3.0 VDC) and the wireless transmission interval is 3 seconds, operating temperature in +20℃ to +60℃, the use of time can be up to 1 years, if battery will low power, the user can change the new battery by himself, so WLS-T02 very suitable for use in item tracking, personnel movements in hazardous areas, factory regional management and other applications.

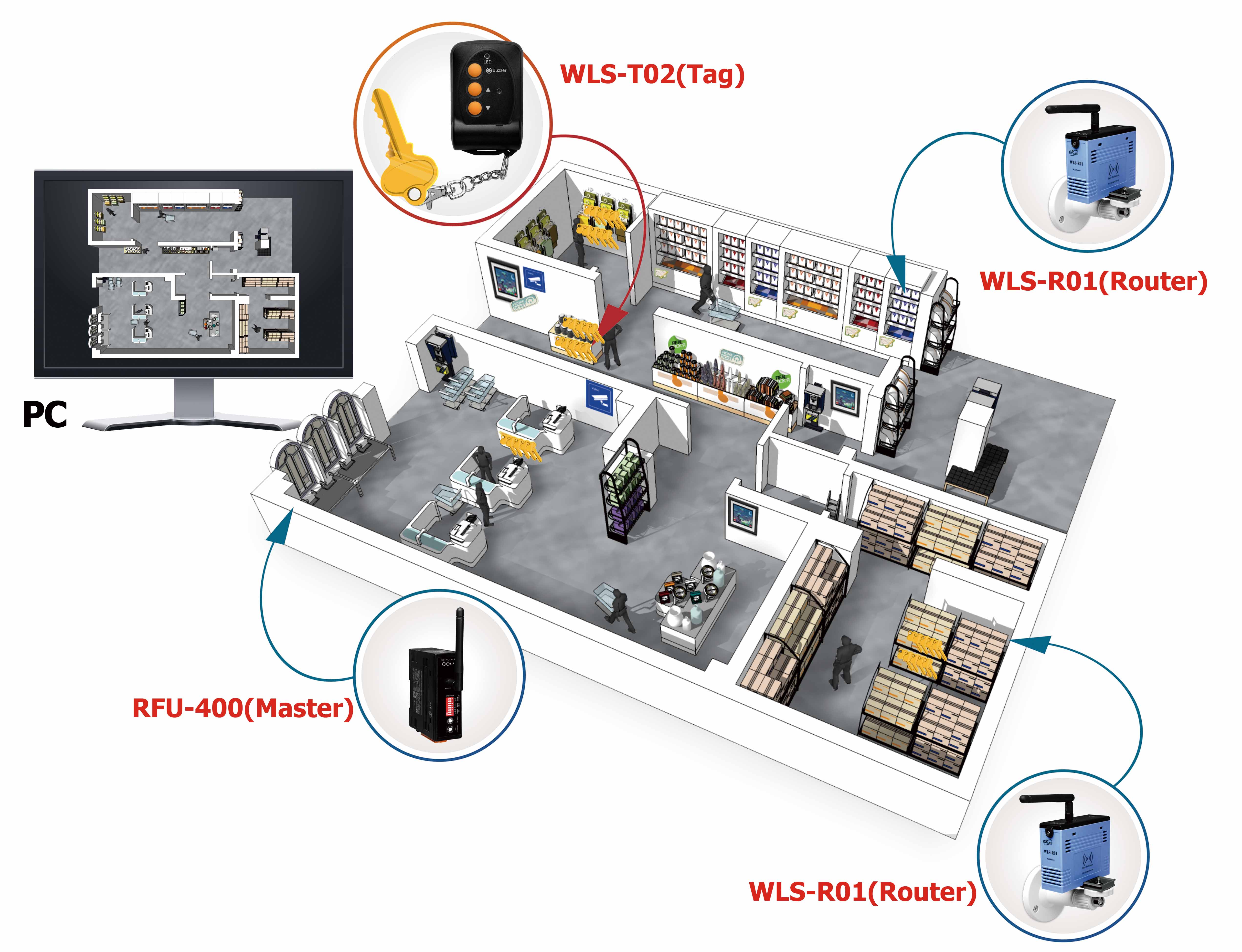

Application

Specification

Alarm and Event
Alarm Triggers	Key of disable buzz x 2, buzzer x 1

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power
ESD (IEC 61000-4-2)	±4 kV Contact for Screw

LED Indicators
Status	1 x Buzzer 1 x Low battery power

RF
Antenna	2.4GHz-3dBi PCB Directional Antenna
Channels	16
Frequency Band	2.4GHz
Modulation	OQPSK (Offset Quadrature Phase-shift Keying)
Spread Spectrum	DSSS (Direct-Sequence Spread Spectrum)
Transmission Power	16±1dBm (Default) / 17dBm (Max.)
Transmission Distance (LoS)	100 m (Typical)

Power
Input Range	1 x CR123A (3.0 VDC)
Consumption	Buzzer no buzz: 267uW@3VDC / 2.13mAh@1 Day (3 second Tx interval) Buzzer buzz: 90mW@3VDC / 30mAh@1 hour (3 second Tx interval, and 1 second buzz interval)

Mechanical
Dimensions (mm)	43 x 70 x 21 (W x L x H)
Installation	Hook

Environmental
Operating Temperature	-25 ~ +70°C (No battery included) -25 ~ +60°C (Battery included)
Storage Temperature	-30 ~ +80°C (No battery included) -20 ~ +45°C (Battery included)
Humidity	45 ~ 85% RH(Non-condensing, No battery included) 20 ~ 65% RH(Non-condensing, Battery included)

Download

Data Sheet

Documents

Ordering information

WLS-T02 CR

Battery Standard Type Wireless Locating System Transmitter with Buzzer (100 m) (Asia Only) (RoHs)
